Monobloc electric pumps

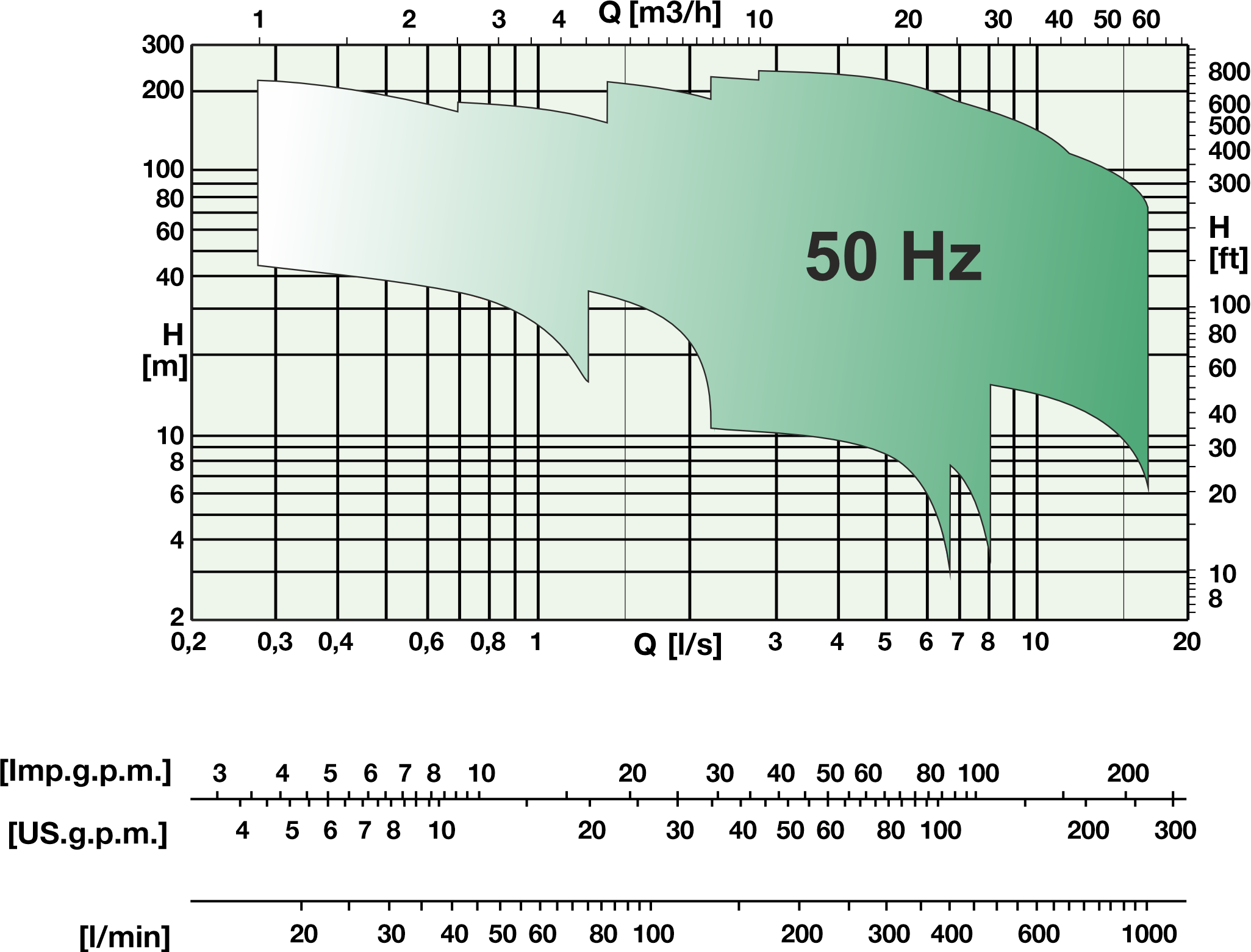

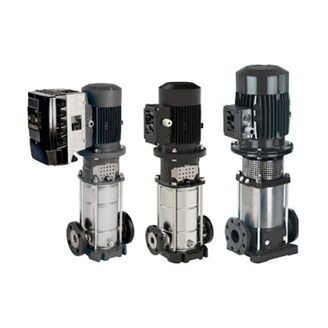

CVD Series

The new range of vertical multistage electric pumps made in Italy certified for use in drinking water. Stainless steel components and IE3 efficiency class motors guarantee robustness and high energy savings. The inline port construction and the replaceable cartridge mechanical seal ensure reduced installation costs and easy maintenance.

Flow rate up to l/s 18
Head up to m 250
Power up to kW 22
Frequency Hz 50-60

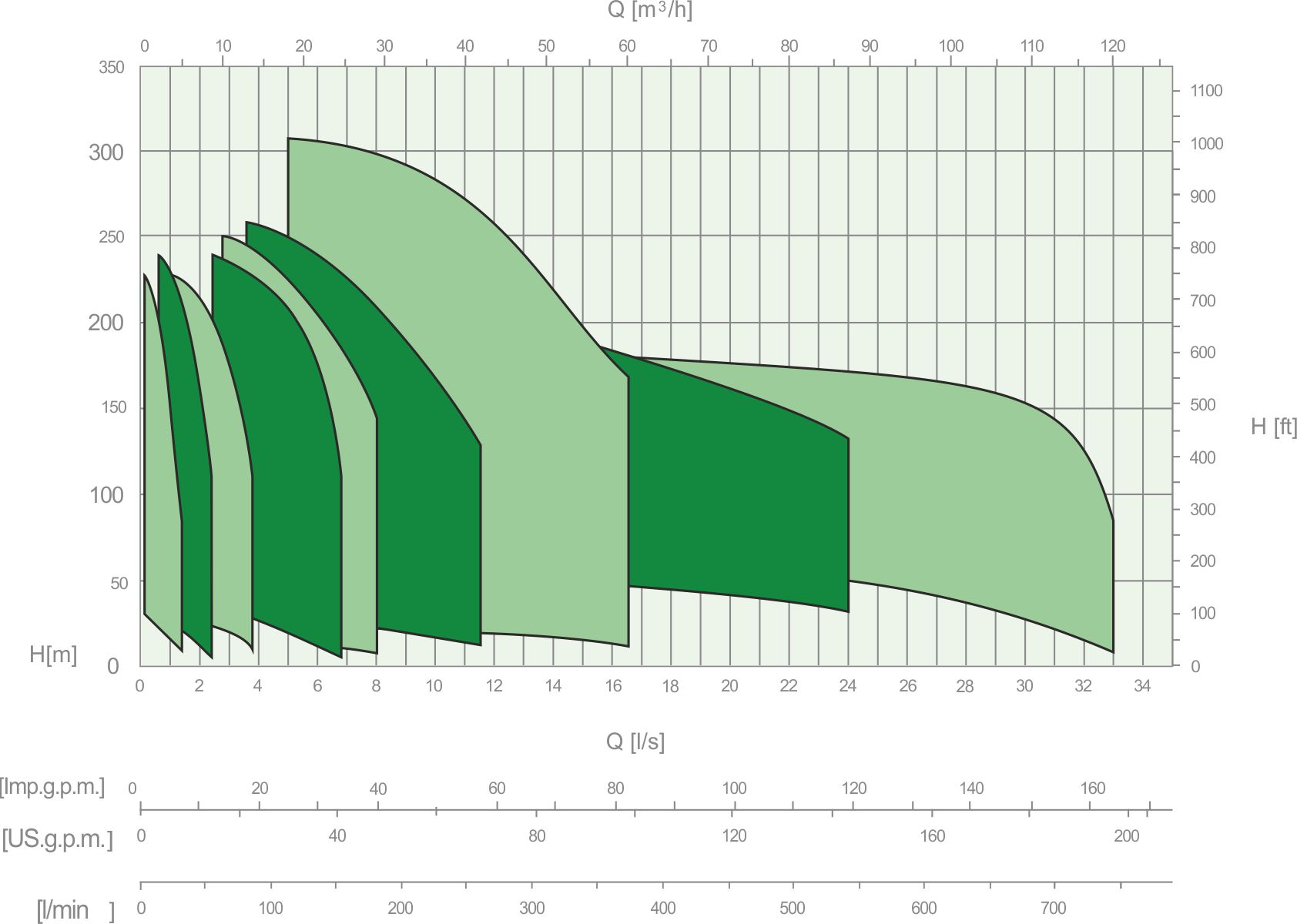

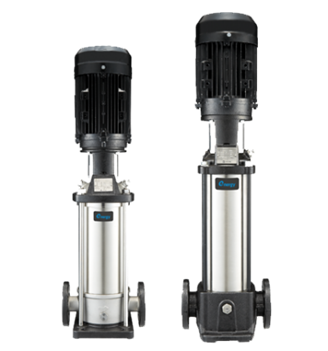

CVX Series

The range of CVX series vertical multistage pumps in stainless steel features suction and delivery in line and highly energy efficient motors. The wide range combined with the high quality and reliability are the most evident of the CVX values. Ideal for industry, irrigation, residential, commercial and civil buildings, boosting systems.

Flow rate up to l/s 33
Head up to m 313
Power up to kW 45

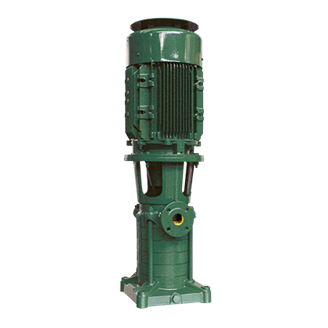

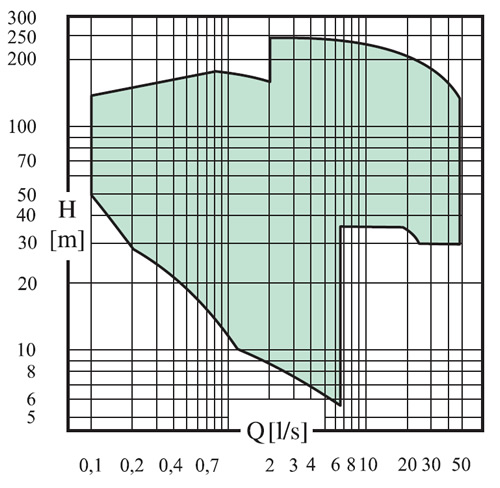

HV-HVU Series

Surface vertical multistage centrifugal pumps. Silent and efficient, they can be used in water supply systems, cleaning, fire-fighting, air-conditioning and cooling systems, in addition to being suitable for irrigation and for booster systems in general.

Flow rate up to l/s 50
Head up to m 250
Power up to kW 90

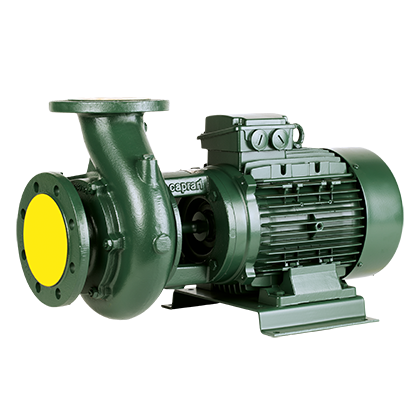

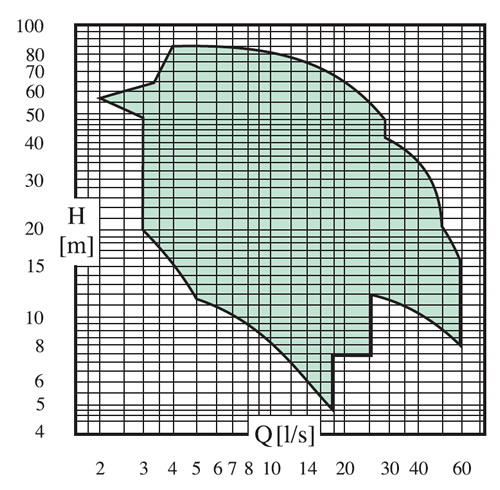

MD Series

Monobloc centrifugal electric pumps with horizontal shaft, single stage with adjustable packing or mechanical seal. Made of a sturdy cast iron structure, they are coupled with 2-pole threephase asynchronous electric motors. Ideal for air-conditioning and cooling tower, water circulation, vessel supply, booster and irrigation systems.

Flow rate up to l/s 60
Head up to m 85
Power up to kW 18.5
