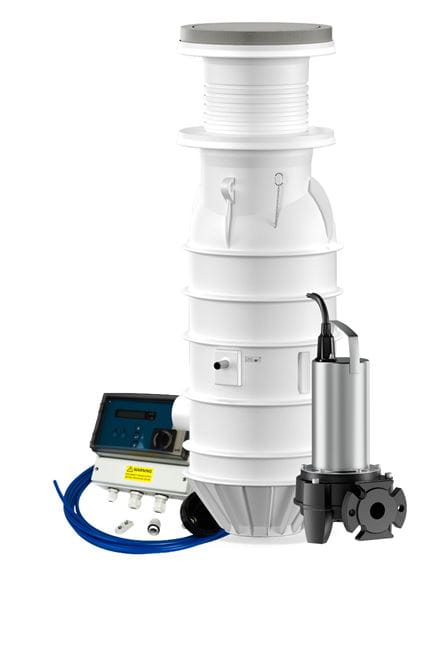

WILO PORT 800 RM3-S SET 3F pump station

Wilo set with complete fittings and valves, including a pump and switch box. Suitable for pumping water with or without faeces, wherever there is no sewerage system available or it is not possible to build one.

Contents of the sump delivery

Port 800 RM3-S SET 1/3F:

• Port 800.1-1750-03B shaft
• Class A15 concrete walk-on cover
• Rexa MINI3-S 03/M008-523/P sludge pump - SET 1F or Rexa MINI3-S 03/T008-540/T sludge pump - SET 3F
• WSP201 switch box incl. 10 m hose and bell for pneumatic level measurement

Port 600 RM3-S SET 1F:

• Port 600.1-1800-03B shaft
• Rexa MINI3-S 03/M008-523/A sludge pump with float switch
• Class A15 concrete walk-on cover
• For fault signaling, we recommend purchasing DrainAlarm FIRST, 2550526 + float switch WA65, 503211893 for Port600 shafts.

Use

• Transport of water without faeces (versions D and E) and wastewater containing faeces (version B):
• If wastewater cannot be drained into the sewer system by natural gravity.
• For backflow-resistant drainage if the drainage point is located below the backflow level.

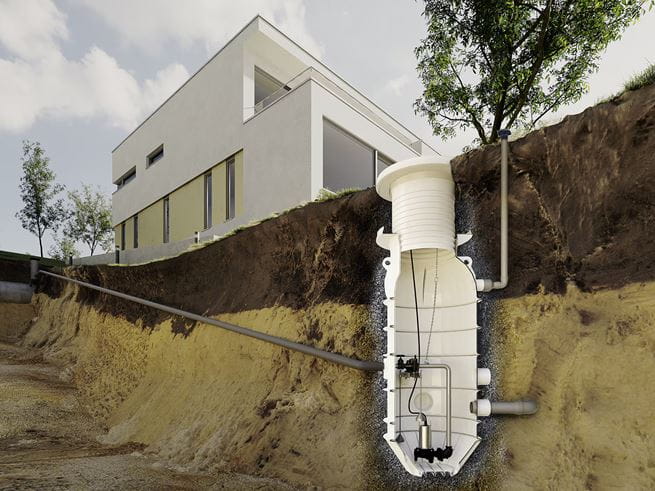

Advantages of plastic sumps for installation under the floor

• Drive-over – even by heavy goods vehicles – thanks to manhole covers that can be mounted directly on the manhole
• Flexible adaptation to the installation thanks to a stepless shaft extension up to 2.75 m
• Highest operational reliability and protection against leaks thanks to a one-piece shaft body up to 2.25 m
• Long service life thanks to the use of corrosion-free materials
• Easy maintenance thanks to easily accessible fittings via a coupling above the water level
• Easy installation thanks to lightweight polyethylene shaft body and integrated inlet connections
• Shaft body with buoyancy protection without additional weights thanks to circumferential shaft ribs

Reliable Rexa MINI3 pumps for sewage and waste water, designed for draining domestic and groundwater

Wilo-Rexa MINI3-S is a grinding submersible pump for safe drainage of houses and land. The pump has a stainless steel, corrosion-resistant motor housing, double seal and is easy to maintain. Installation is easy thanks to its low weight and integrated plug. Versions with a float switch switch on and off automatically depending on the water level.

Advantages of the submersible sludge pump

• Excellent resistance to clogging thanks to a macerator with double cutting action
• Optimized combination of hydraulics and macerator for wide delivery head coverage with lowest power requirements for connection to the domestic power supply
• Long service life thanks to high-quality motor with double seal
• High corrosion resistance even when replacing the motor thanks to stainless steel motor housing

More information about the pump can be found here

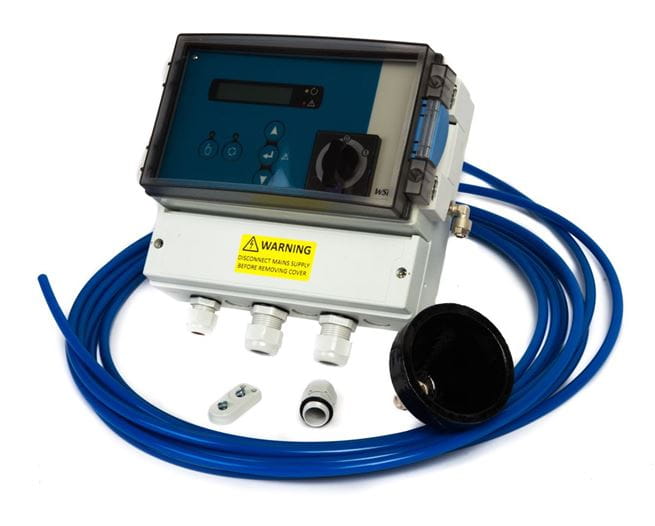

WSP201 switch box

Switch box for sludge pumps for wastewater and sewage. Supplied with a 10 m pressure hose and a bell for pneumatic level measurement. For 1x230 and 3x400 V pumps up to 4 kW. Compatible with float switches and 4-20 mA level sensors.

More information about the switch box can be found here

Technical data

• Monolithic shaft height: 1500, 1750, 1800, 2250 mm
• Max. shaft height with extension: 2750 mm
• Nominal shaft diameter: 600/800 mm
• Connection socket (closed): 1/2x DN 100, 2x DN 150, 1x DN 200
• Pressure outlet with external thread:

  • Version "B" = R 1¼
  • Version "D" = R 1½
  • Version "E" = R 1¼
• Flush connection / vacuum break valve connection: Rp 1

Construction

• Only install outside buildings.
• Do not install in the immediate vicinity of living and sleeping areas.
• Do not install the pump shaft in peaty soil.
• Max. height compensation:

  • with concrete ring: 200 mm
  • with plastic shaft extension: 500 mm
• Shaft cover D 400: install a load distribution plate provided by the customer!
• The load distribution plate must lie completely flat on the ground! The load distribution plate must not rest on the shaft.
• Dimensions: Outer Ø: 1700 mm; inner Ø: 700 mm; thickness: 300 mm
