LEO XKS-610PW 230V submersible pump LEO XKS-610PW 230V submersible pump LEO XKS-610PW 230V submersible pump

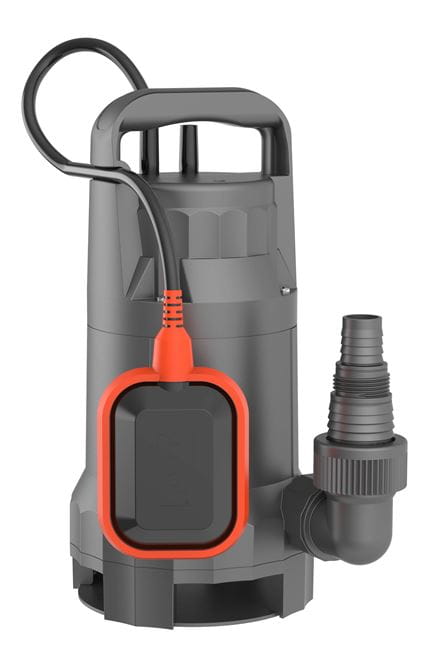

LEO XKS-610PW 230V submersible pump

The LEO XKS submersible pump is a garden submersible pump designed for pumping clean water (version without "W") and dirty water (version with "W") from wells, tanks, basements or for pumping water. The pump is equipped with a float switch that automatically starts the pump when there is sufficient liquid to pump and switches off the pump if there is a risk of dry running. The pump is connected to a power cable with a plug, which must be inserted into a socket to connect the pump to a 230 V mains supply. See more

Technical Specifications

Maximum flow [l/min]
266.70
Maximum head [m]
8
Input voltage [V]
230
Power output - P2 [kW]
0.18

Show all Tech Specs

in stock >50 pcs

72.17 € VAT included

Delivery accross EU within 3-7 business days %

Brand:
LEO
Category:
Submersible pumps
Product No.:
ZB00075584
Sale group:
CELEO
EAN:
8596455045939

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Power input - P1 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Dry run protection
  • Impeller material
  • Check valve
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

LEO XKS-310PW 230V submersible pump

Product No.: ZB00075582 Sale group: CELEO EAN: 8596455045953

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

65.05 €

Maximum flow [l/min]
200
Maximum head [m]
6
Input voltage [V]
230
Power output - P2 [kW]
0.11
Power input - P1 [kW]
0.30
Rated flow [l/m]
102.30
Rated head [m]
3.70
Delivery port ["]
5/4
Maximum immersion depth [m]
7
Float switch
YES
Maximum current [A]
1.29
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
25
Protection [IP]
X8
Dry run protection
YES
Impeller material
noryl

LEO XKS-410PW 230V submersible pump

Product No.: ZB00075583 Sale group: CELEO EAN: 8596455045946

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

67.10 €

Maximum flow [l/min]
233.30
Maximum head [m]
7
Input voltage [V]
230
Power output - P2 [kW]
0.13
Power input - P1 [kW]
0.40
Rated flow [l/m]
129
Rated head [m]
3.80
Delivery port ["]
5/4
Maximum immersion depth [m]
7
Float switch
YES
Maximum current [A]
1.53
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
25
Protection [IP]
X8
Dry run protection
YES
Impeller material
noryl

LEO XKS-610PW 230V submersible pump

Product No.: ZB00075584 Sale group: CELEO EAN: 8596455045939

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

72.17 €

Maximum flow [l/min]
266.70
Maximum head [m]
8
Input voltage [V]
230
Power output - P2 [kW]
0.18
Power input - P1 [kW]
0.55
Rated flow [l/m]
140
Rated head [m]
5
Delivery port ["]
6/4
Maximum immersion depth [m]
7
Float switch
YES
Maximum current [A]
2.06
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
35
Protection [IP]
X8
Dry run protection
YES
Impeller material
noryl
You are viewing this variant

LEO XKS-810PW 230V submersible pump

Product No.: ZB00075585 Sale group: CELEO EAN: 8596455045922

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

78.25 €

Maximum flow [l/min]
300
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0.27
Power input - P1 [kW]
0.75
Rated flow [l/m]
183.30
Rated head [m]
5.30
Delivery port ["]
6/4
Maximum immersion depth [m]
7
Float switch
YES
Maximum current [A]
2.94
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
35
Protection [IP]
X8
Dry run protection
YES
Impeller material
noryl

LEO XKS-1010PW 230V submersible pump

Product No.: ZB00075586 Sale group: CELEO EAN: 8596455045915

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

83.36 €

Maximum flow [l/min]
333.30
Maximum head [m]
10
Input voltage [V]
230
Power output - P2 [kW]
0.30
Power input - P1 [kW]
1
Rated flow [l/m]
221.70
Rated head [m]
6.45
Delivery port ["]
6/4
Maximum immersion depth [m]
7
Float switch
YES
Maximum current [A]
3.77
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
35
Protection [IP]
X8
Dry run protection
YES
Impeller material
noryl

Product description

The LEO XKS submersible pump is a garden submersible pump designed for pumping dirty water from wells, tanks, basements, or for transferring water. The pump is equipped with a float switch that automatically starts the pump when there is sufficient pumped medium and switches off the pump if there is a risk of dry running. The pump is connected to a power cable with a plug, which must be inserted into a socket to connect the pump to a 230V power supply.

Applications

  • for pumping clean water and dirty water
  • pumping water from wells, tanks
  • pumping water from cellars
  • repumping water

Instructions

Technical Specifications

Maximum flow [l/min]
266.70
Maximum head [m]
8
Input voltage [V]
230
Power output - P2 [kW]
0.18
Power input - P1 [kW]
0.55
Rated flow [l/m]
140
Rated head [m]
5
Delivery port ["]
6/4
Maximum immersion depth [m]
7
Float switch
YES
Maximum current [A]
2.06
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
35
Protection [IP]
X8
Dry run protection
YES
Impeller material
noryl

Product Safety Information

Company responsible for product safety:
PUMPA,a.s.
U Svitavy 54/1, Brno 618 00, CZ
e-mail: [email protected]
