GRUNDFOS SOLOLIFT 2 D-2 automatic lifting stations

previous next
GRUNDFOS SOLOLIFT 2 D-2 automatic lifting stations

Grundfos SOLOLIFT2 are small, compact, ready-to-install automatic lifting stations with integrated powerful cutter systems. Suitable for pumping wastewater with feces from private dwellings. The unit is designed according to EN 12050-3 See more

Technical Specifications

Maximum flow [l/min]
119
Maximum head [m]
5.50
Input voltage [V]
230
Power output - P2 [kW]
0.16

Show all Tech Specs

on demand check availability

486.65 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
Grundfos
Category:
Sewage lifting stations
Product No.:
MAS000522

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Power input - P1 [kW]
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos Sololift2 D-2 230V automatic lifting stations up to 50 deg.C (2 sources)

Product No.: ZB00002624 Sale group: CEGJ EAN: 5710624187272 Manuf. No.: 97775318

on demand
check availability
Product availability
  • central warehouse 0 pcs

486.65 €

Check availability

Maximum flow [l/min]
119
Maximum head [m]
5,50
Input voltage [V]
230
Power output - P2 [kW]
0,16
Power input - P1 [kW]
0,28
Drinking water certificate
NO
Vessel volume [l]
2
Maximum current [A]
1,30
Maximum liquid temperature [°C]
50
Cable length [m]
1,20
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with centrifugal pumps
Grinder
YES

Product description

Sololift2 D-2 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where greywater (w/o faeces) cannot be led directly to the sewer by means of a natural downward slope.

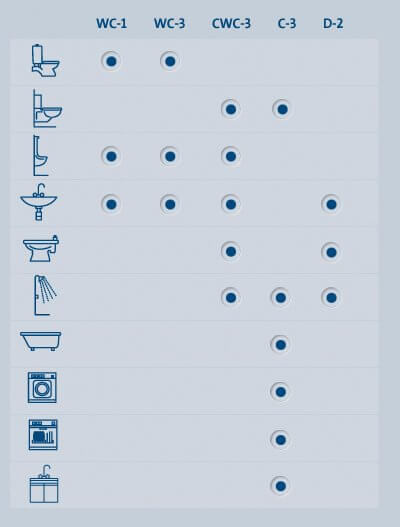

Sololift2 D-2 is typically used for:

  • cabinet showers, washbasins or bidets in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor.

Sololift2 D-2 is suitable for confined space conditions in built-in cabinets or also below shower receptors or pedestals.

The pumping of liquids containing other material may cause faults and limit the scope of our guarantee.

The compact lifting station is equipped with

  • Cable with or without plug (see technical data)
  • Discharge hose connector with several adaptors for pipes with Ø22-36mm
  • Integrated non return valve
  • Dry and high performance motor unit incl. thermal protection, pressure switch and controller
  • Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
  • Manual anti clogging function and separate drain connection for service
  • Venting valve with overflow protection
  • Uplift fixation clips

Design according to EN12050-2 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

Instructions

Technical Specifications

Maximum flow [l/min]
119
Maximum head [m]
5.50
Input voltage [V]
230
Power output - P2 [kW]
0.16
Power input - P1 [kW]
0.28
Drinking water certificate
NO
Vessel volume [l]
2
Maximum current [A]
1.30
Maximum liquid temperature [°C]
50
Cable length [m]
1.20
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with centrifugal pumps
Grinder
YES
