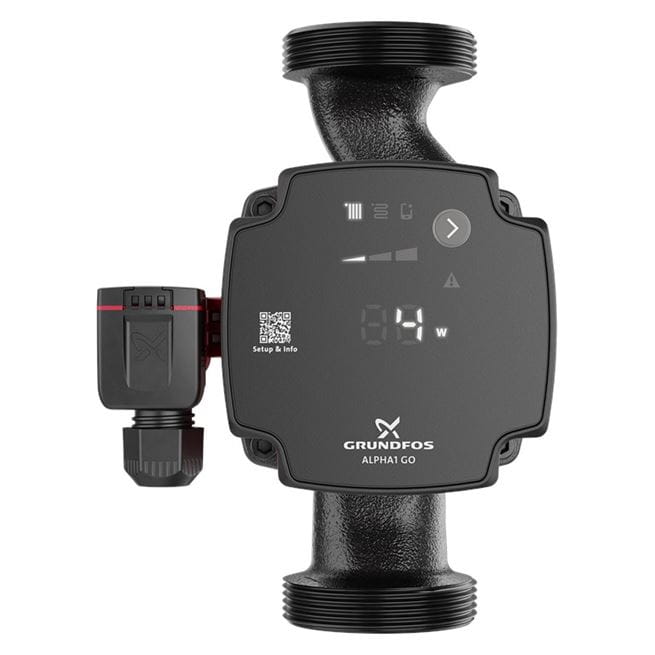

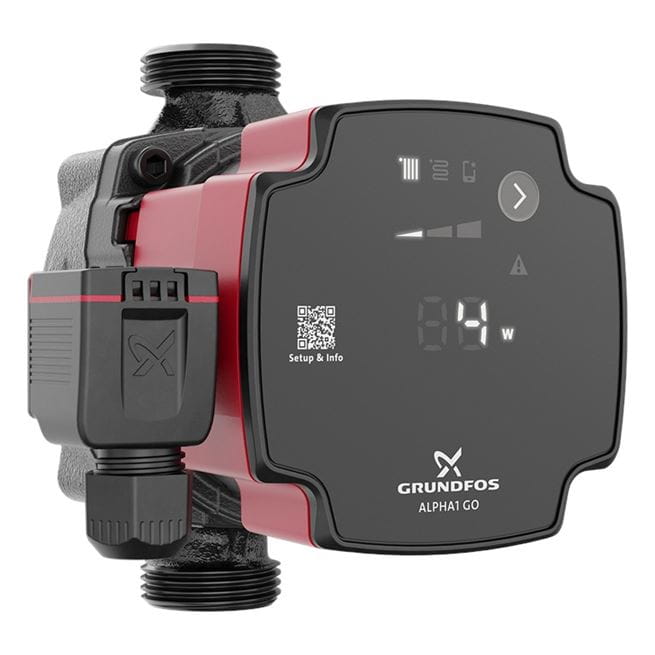

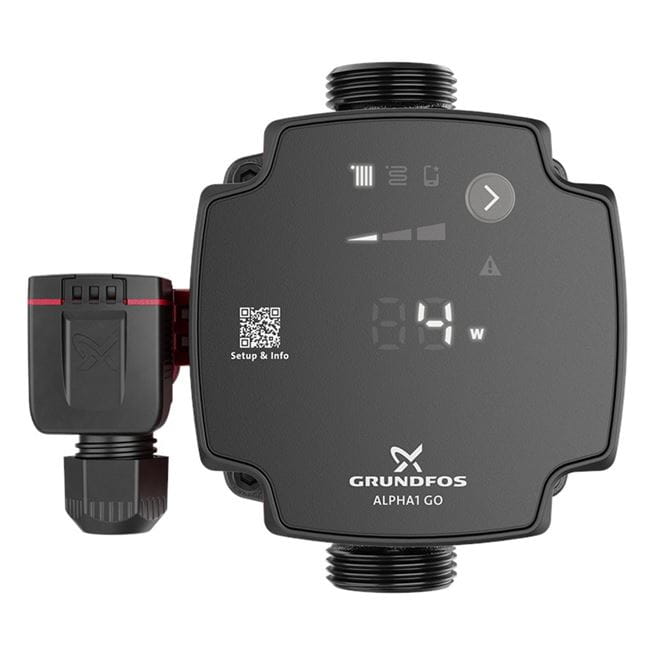

Grundfos ALPHA1 GO high-efficiency circulation pump Grundfos ALPHA1 GO high-efficiency circulation pump Grundfos ALPHA1 GO high-efficiency circulation pump Grundfos ALPHA1 GO high-efficiency circulation pump Grundfos ALPHA1 GO high-efficiency circulation pump Grundfos ALPHA1 GO high-efficiency circulation pump

Grundfos ALPHA1 GO 20-40 130 220-240V 9H AB0

The ALPHA1 GO is a highly efficient circulation pump designed for heating and air conditioning systems. Check compatibility with old circulation pumps and replicate pump curves using the Grundfos GO app. See more

Technical Specifications

Maximum flow [l/min]
46
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
6/4

Show all Tech Specs

on demand check availability

213.63 € VAT included

On demand

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Circulator pumps
Product No.:
ZB00075957
Sale group:
CEGDD
EAN:
5715467404142
Manuf. No.:
93074187

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Suction port ["]
  • Power input - P1 [kW]
  • Delivery port ["]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Port-to-port length
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos ALPHA1 GO 15-40 130 220-240V 9H AB0

Product No.: ZB00075956 Sale group: CEGDD EAN: 5715467404159 Manuf. No.: 93074188

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

213.63 €

Maximum flow [l/min]
47
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
1
Power input - P1 [kW]
0.03
Delivery port ["]
1
Drinking water certificate
NO
Maximum current [A]
0.30
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
130

Grundfos ALPHA1 GO 15-60 130 220-240V 9H AC0

Product No.: ZB00075959 Sale group: CEGDD EAN: 5715467403992 Manuf. No.: 93074173

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

245.57 €

Maximum flow [l/min]
60
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
1
Power input - P1 [kW]
0.05
Delivery port ["]
1
Drinking water certificate
NO
Maximum current [A]
0.45
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
130

Grundfos ALPHA1 GO 15-80 130 220-240V 9H AC0

Product No.: ZB00075962 Sale group: CEGDD EAN: 5715467404081 Manuf. No.: 93074182

on demand
check availability
Product availability
  • central warehouse 0 pcs

272.86 €

Check availability

Maximum flow [l/min]
70
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
1
Power input - P1 [kW]
0.06
Delivery port ["]
1
Drinking water certificate
NO
Maximum current [A]
0.60
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
130

Grundfos ALPHA1 GO 20-40 130 220-240V 9H AB0

Product No.: ZB00075957 Sale group: CEGDD EAN: 5715467404142 Manuf. No.: 93074187

on demand
check availability
Product availability
  • central warehouse 0 pcs

213.63 €

Check availability

Maximum flow [l/min]
46
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
6/4
Power input - P1 [kW]
0.03
Delivery port ["]
6/4
Drinking water certificate
NO
Maximum current [A]
0.30
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
130
You are viewing this variant

Grundfos ALPHA1 GO 20-60 130 220-240V 9H AC0

Product No.: ZB00075960 Sale group: CEGDD EAN: 5715467404074 Manuf. No.: 93074181

in stock
4 pcs
Product availability
  • central warehouse 4 pcs

245.57 €

Maximum flow [l/min]
60
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
6/4
Power input - P1 [kW]
0.05
Delivery port ["]
6/4
Drinking water certificate
NO
Maximum current [A]
0.45
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
130

Grundfos ALPHA1 GO 25-40 130 220-240V 9H AB0

Product No.: ZB00075958 Sale group: CEGDD EAN: 5715467404135 Manuf. No.: 93074186

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

194.33 €

Maximum flow [l/min]
46
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
6/4
Power input - P1 [kW]
0.03
Delivery port ["]
6/4
Drinking water certificate
NO
Maximum current [A]
0.30
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
130

Grundfos ALPHA1 GO 25-40 180 220-240V 9H AB0

Product No.: ZB00075950 Sale group: CEGDD EAN: 5715467404128 Manuf. No.: 93074185

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

158.99 €

Maximum flow [l/min]
47
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
6/4
Power input - P1 [kW]
0.03
Delivery port ["]
6/4
Drinking water certificate
NO
Maximum current [A]
0.30
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
180

Grundfos ALPHA1 GO 25-60 130 220-240V 9H AC0

Product No.: ZB00075961 Sale group: CEGDD EAN: 5715467403978 Manuf. No.: 93074171

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

223.61 €

Maximum flow [l/min]
60
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
6/4
Power input - P1 [kW]
0.05
Delivery port ["]
6/4
Drinking water certificate
NO
Maximum current [A]
0.45
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
130

Grundfos ALPHA1 GO 25-60 180 220-240V 9H AC0

Product No.: ZB00075951 Sale group: CEGDD EAN: 5715467403954 Manuf. No.: 93074169

in stock
>100 pcs
Product availability
  • central warehouse >100 pcs

182.95 €

Maximum flow [l/min]
61
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
6/4
Power input - P1 [kW]
0.05
Delivery port ["]
6/4
Drinking water certificate
NO
Maximum current [A]
0.45
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
180

Grundfos ALPHA1 GO 25-80 130 220-240V 9H AC0

Product No.: ZB00075963 Sale group: CEGDD EAN: 5715467404067 Manuf. No.: 93074180

on demand
check availability
Product availability
  • central warehouse 0 pcs

244.90 €

Check availability

Maximum flow [l/min]
70
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
6/4
Power input - P1 [kW]
0.06
Delivery port ["]
6/4
Drinking water certificate
NO
Maximum current [A]
0.60
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
130

Grundfos ALPHA1 GO 25-80 180 220-240V 9H AC0

Product No.: ZB00075952 Sale group: CEGDD EAN: 5715467404050 Manuf. No.: 93074179

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

244.90 €

Maximum flow [l/min]
70
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
6/4
Power input - P1 [kW]
0.06
Delivery port ["]
6/4
Drinking water certificate
NO
Maximum current [A]
0.60
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
180

Grundfos ALPHA1 GO 32-40 180 220-240V 9H AB0

Product No.: ZB00075953 Sale group: CEGDD EAN: 5715467404111 Manuf. No.: 93074184

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

213.63 €

Maximum flow [l/min]
46
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
2
Power input - P1 [kW]
0.03
Delivery port ["]
2
Drinking water certificate
NO
Maximum current [A]
0.30
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
180

Grundfos ALPHA1 GO 32-60 180 220-240V 9H AC0

Product No.: ZB00075954 Sale group: CEGDD EAN: 5715467403930 Manuf. No.: 93074167

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

232.26 €

Maximum flow [l/min]
61
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
2
Power input - P1 [kW]
0.05
Delivery port ["]
2
Drinking water certificate
NO
Maximum current [A]
0.45
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
180

Grundfos ALPHA1 GO 32-80 180 220-240V 9H AC0

Product No.: ZB00075955 Sale group: CEGDD EAN: 5715467404043 Manuf. No.: 93074178

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

260.88 €

Maximum flow [l/min]
70
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
2
Power input - P1 [kW]
0.06
Delivery port ["]
2
Drinking water certificate
NO
Maximum current [A]
0.60
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
180

Product description

The new generation of Grundfos ALPHA GO circulation pumps

Discover the latest range of Grundfos circulation pumps, offering modern technology, easy installation and economical operation. Three new versions are gradually replacing the original ALPHA3, ALPHA2 and ALPHA1 L models – and bringing even more benefits.

ALPHA2 GO – a smart pump of the new generation
Connected to the new Grundfos GO mobile app, it offers intuitive and clear settings that anyone can use. The new unique "setup wizard" feature allows you to customize the pump to the exact parameters of your heating system. A great solution for quick replacement of older electronic pumps.

ALPHA1 GO – ideal for replacing older models
Designed for easy replacement of old non-electronic pumps. Easy to install and highly energy efficient. A great solution for modernizing existing heating systems.

ALPHA1 – the economical choice
A basic model with simple controls and reliable performance. The ideal choice if you are looking for an economical solution without unnecessary extra features.



The ALPHA GO series of circulation pumps is designed for installation in heating systems in single-family homes. They can be installed as stand-alone or integrated circulation pumps, but always provide maximum comfort and energy savings.

They enable quick and easy replacement of existing pumps, both old and new. At the same time, they simplify commissioning and give you peace of mind that the entire system is working efficiently thanks to the connection to the professional setup guide in the Grundfos GO app.

ALPHA1 GO is a high-quality circulation pump with features that ensure the best performance. The pump is suitable for replacing integrated UPS circulation pumps and stand-alone circulation pumps.

New and improved features such as:

  • Replacement of older stand-alone and integrated pumps
  • Automatic air venting
  • Dry-running protection
  • Robust start / reinforced starting torque

One pump in two versions.

From now on, you only need two pumps in your car to replace most stand-alone circulation pumps and up to 70% of integrated circulation pumps currently found in heating systems.

With the GO REPLACE function, which is part of the Grundfos GO app, you can find a replacement for your existing circulation pump in your system in just a few steps.

Commissioning the pump from your mobile phone.

The setup guide ensures the most accurate commissioning based on the hydronic balance of your heating system.

With the setup guide in the Grundfos GO app, commissioning is faster and ensures perfect system settings for optimal comfort and lower energy consumption.

Why ALPHA GO pumps?

  • Faster & better workflow
    With two pumps in the car, you only need one visit to the customer to replace the pump without any doubts about the correct pump settings. From installation to setup, every step is shorter, simpler and more intuitive.
  • Optimal performance
    Achieve peak system efficiency with accurate commissioning that reduces the energy consumption of the system and ensures optimal operation.
  • Optimal comfort
    Ensure the perfect balance between heating and comfort thanks to the pump's features, which adapt seamlessly to any setting.

Instructions

Technical Specifications

Maximum flow [l/min]
46
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
6/4
Power input - P1 [kW]
0.03
Delivery port ["]
6/4
Drinking water certificate
NO
Maximum current [A]
0.30
Maximum liquid temperature [°C]
110
Protection [IP]
44
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
130
