CALPEDA

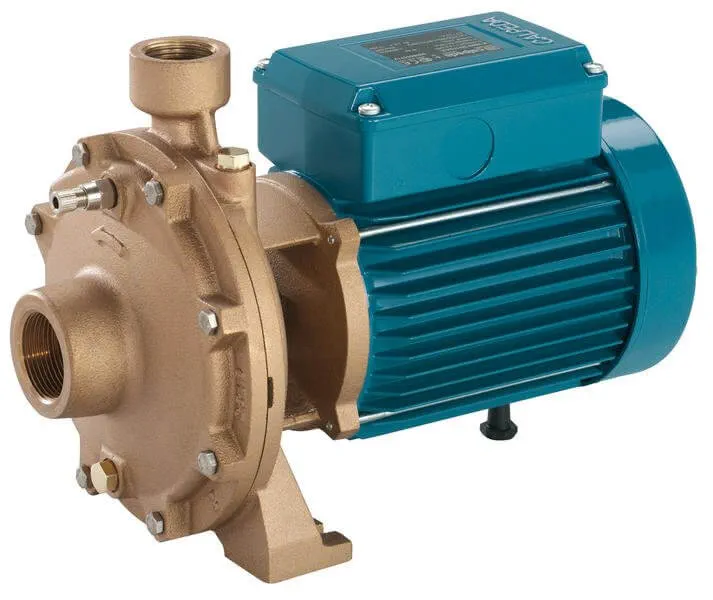

Calpeda NMDM 20 close coupled centrifugal pumps with threaded ports 230V
Technical Specifications
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 33
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0,45
- Brand:
- CALPEDA
- Category:
- Horizontal surface pumps
- Product No.:
- ZB00014110
- Sale group:
- CECP
- EAN:
- 8030485000228
- Manuf. No.:
- 60310012000
Product variants
-
- Calpeda NMDM 20/110B/A 230V 0,45kW 2900rpm
- ZB00014110
- 60
- 33
- 230
- 0,45
- 5/4
- 1
- 7
- NO
- 3,60
- 90
- 54
- YES
- NO
- NO
- NO
- integrated
- horizontal
- brass
- monoblock with double impeller
-
Product availability
- central warehouse 0 pcs
- 408.28 €
- Check availability
-
- Calpeda NMDM 20/110Z/A 230V 0,55kW 2900rpm IE2
- ZB00025871
- 70
- 37
- 230
- 0.55
- 5/4
- 1
- 7
- NO
- 4.50
- 90
- 54
- YES
- NO
- NO
- NO
- integrated
- horizontal
- brass
- monoblock with double impeller
-
Product availability
- central warehouse 0 pcs
- 435.03 €
- Check availability
-
- Calpeda NMDM 20/110A/A 230/400V 0,75kW 2900rpm
- ZB00001600
- 70
- 43
- 230
- 0,75
- 5/4
- 1
- 7
- NO
- 6
- 90
- 54
- YES
- NO
- NO
- NO
- integrated
- horizontal
- brass
- monoblock with double impeller
-
Product availability
- central warehouse 0 pcs
- 456.10 €
- Check availability
-
- Calpeda NMDM 20/140BE 1,1kW 230V 2900rpm IE2
- ZB00014072
- 60
- 52
- 230
- 1.10
- 5/4
- 1
- 7
- NO
- 7.40
- 90
- 54
- YES
- NO
- NO
- NO
- integrated
- horizontal
- brass
- monoblock with double impeller
-
Product availability
- central warehouse 0 pcs
- 706.95 €
- Check availability
Variant Product No.
Availability
Price (VAT incl.)
Calpeda NMDM 20/110B/A 230V 0,45kW 2900rpm
Product No.: ZB00014110 Sale group: CECP EAN: 8030485000228 Manuf. No.: 60310012000
408.28 €
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 33
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0,45
- Suction port ["]
- 5/4
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 3,60
- Maximum liquid temperature [°C]
- 90
- Protection [IP]
- 54
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Pump design
- horizontal
- Impeller material
- brass
- Construction
- monoblock with double impeller
You are viewing this variant
Calpeda NMDM 20/110Z/A 230V 0,55kW 2900rpm IE2
Product No.: ZB00025871 Sale group: CECP Manuf. No.: 60310023000
435.03 €
- Maximum flow [l/min]
- 70
- Maximum head [m]
- 37
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0.55
- Suction port ["]
- 5/4
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 4.50
- Maximum liquid temperature [°C]
- 90
- Protection [IP]
- 54
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Pump design
- horizontal
- Impeller material
- brass
- Construction
- monoblock with double impeller
Calpeda NMDM 20/110A/A 230/400V 0,75kW 2900rpm
Product No.: ZB00001600 Sale group: CECK Manuf. No.: 60310033000
456.10 €
- Maximum flow [l/min]
- 70
- Maximum head [m]
- 43
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 0,75
- Suction port ["]
- 5/4
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 6
- Maximum liquid temperature [°C]
- 90
- Protection [IP]
- 54
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Pump design
- horizontal
- Impeller material
- brass
- Construction
- monoblock with double impeller
Calpeda NMDM 20/140BE 1,1kW 230V 2900rpm IE2
Product No.: ZB00014072 Sale group: CECK Manuf. No.: 60300044000
706.95 €
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 52
- Input voltage [V]
- 230
- Power output - P2 [kW]
- 1.10
- Suction port ["]
- 5/4
- Delivery port ["]
- 1
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 7.40
- Maximum liquid temperature [°C]
- 90
- Protection [IP]
- 54
- Automatic thermal protection
- YES
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- integrated
- Pump design
- horizontal
- Impeller material
- brass
- Construction
- monoblock with double impeller
Product description
Construction
Close-coupled, centrifugal pumps; electric motor with extended shaft directly connected to the pump.
NM: single-impeller.
NMD: with two back-to-back impellers (with axial thrust balancing).
Connections: threaded ports ISO 228/1 (BS 2779).
NM, NMD: version with pump casing and lanter bracket in cast iron.
B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Applications
For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation
