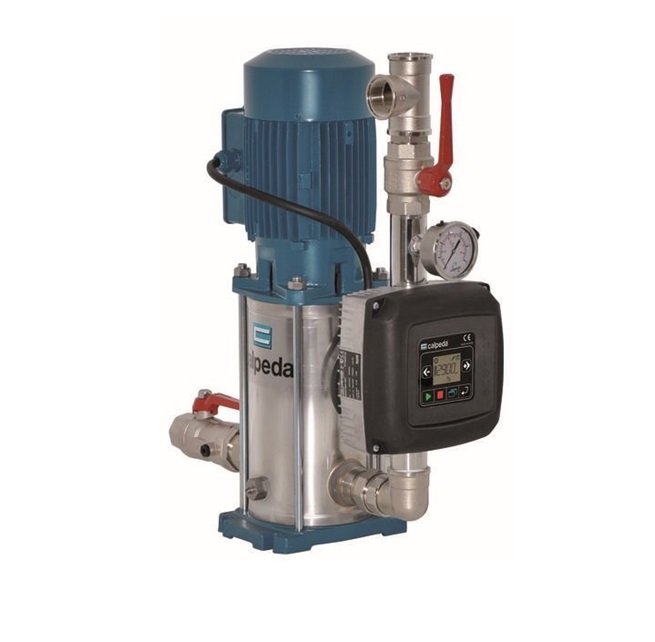

Calpeda 1-MXV-B VMT, VTT
- Brand:
- CALPEDA
- Category:
- Pressure booster sets - vertical
- Product No.:
- MAS000276
Product description
Device
- The frequency converter is installed directly on the discharge pipe and is cooled by water
Only two parameters at startup
- Maximum motor current
- Work pressure
Display options
- System pressure
- Operating frequency
- Rated current
- Alarm. reporting
Traffic
- According to flow requirements, it provides the necessary amount of water at a constant pressure
Use
- For pumping water from a well or borehole
- To increase the pressure of the distribution network (follow local regulations and consult with the owner of the water supply)
Engine
- 2-pole asynchronous motors, 50 Hz, n = 2900 1/min
- Three-phase 230/400V ± 10%
- Insulation class F
- Degree of protection IP 54
- Constructed in accordance with: IEC 60034
- Other voltages and frequencies on request
Instructions
Technical Specifications
- Maximum flow [l/min]
- 8,000
- Power input - P1 [kW]
- 1.10
- Cable length [m]
- 100
