CALPEDA

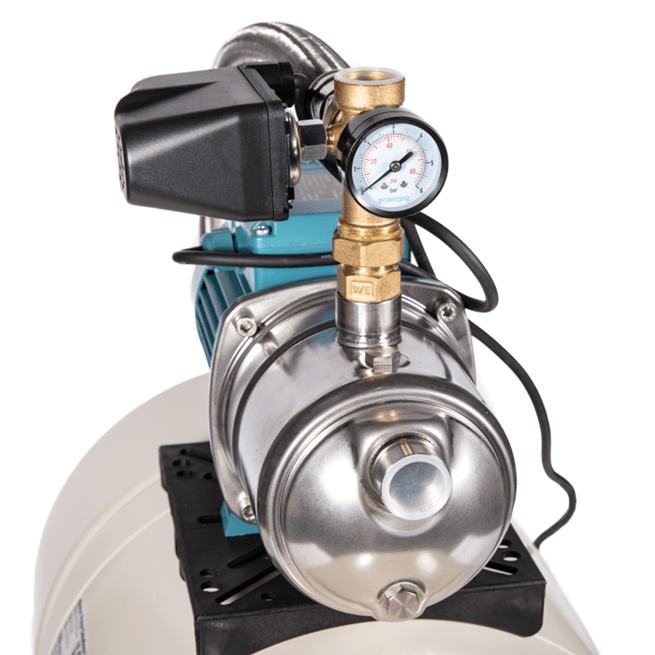

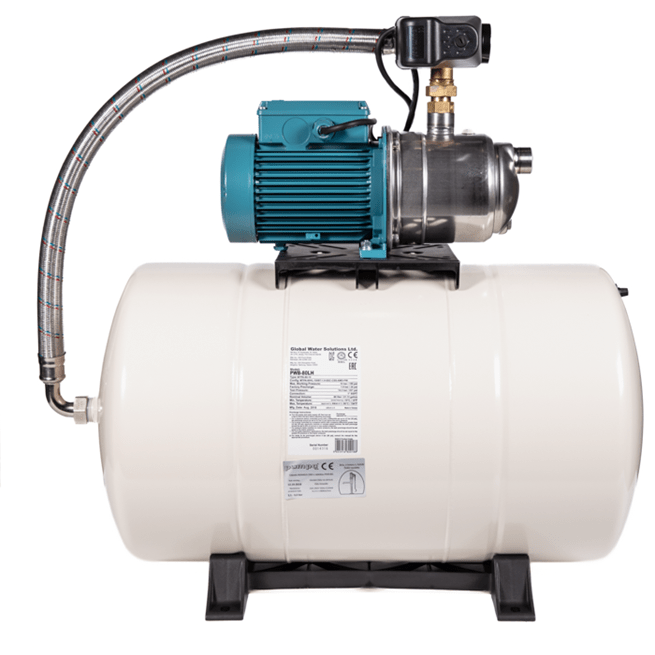

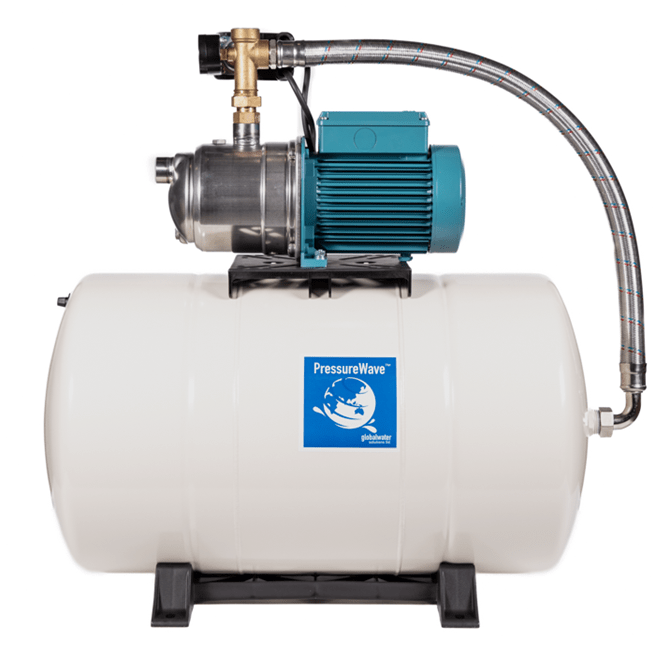

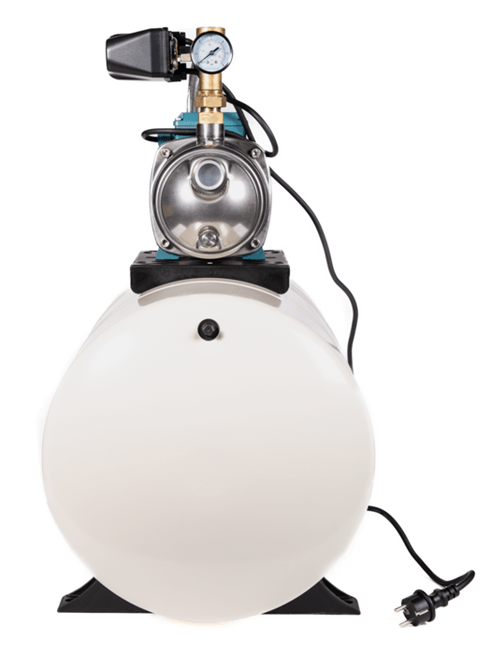

Calpeda pressure booster pump with NGX stainless steel pump and GWS pressure vessel 3x400V
-
Calpeda pressure booster pump with NGX stainless steel pump and GWS pressure vessel -
Calpeda pressure booster pump with NGX stainless steel pump and GWS pressure vessel -
Calpeda pressure booster pump with NGX stainless steel pump and GWS pressure vessel -
Calpeda pressure booster pump with NGX stainless steel pump and GWS pressure vessel -
Calpeda pressure booster pump with NGX stainless steel pump and GWS pressure vessel -
Calpeda pressure booster pump with NGX stainless steel pump and GWS pressure vessel -
Calpeda pressure booster pump with NGX stainless steel pump and GWS pressure vessel -
Calpeda pressure booster pump with NGX stainless steel pump and GWS pressure vessel
Drinking water certificate Extended warranty
previous next
Calpeda horizontal pressure booster pump NGX 3 24l GWS 400V 2,1-3,5bar
Technical Specifications
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 50
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 0,65
- Brand:
- PUMPA
- Category:
- Pressure booster pumps with expansion vessel
- Product No.:
- ZB00001340
- Sale group:
- CECK
- EAN:
- 8596455026563
Product variants
-
- Calpeda horizontal pressure booster pump NGX 3 24l GWS 400V 2,1-3,5bar
- ZB00001340
- 60
- 50
- 3x400
- 0,65
- YES
- 1,70
- 35
- 2,1
- 3,5
-
Product availability
- central warehouse 0 pcs
- available within 5 working days >10 pcs
- 616.37 €
- Not sellable online
-
- Calpeda horizontal pressure booster pump NGX 3 60l GWS 400V 2,1-3,5bar
- ZB00001355
- 60
- 50
- 3x400
- 0.65
- YES
- 1.70
- 35
- 2,1
- 3,5
-
Product availability
- central warehouse 2 pcs
- available within 5 working days >10 pcs
- 712.21 €
-
- Calpeda horizontal pressure booster pump NGX 3 80l GWS 400V 2,1-3,5bar
- ZB00001360
- 60
- 50
- 3x400
- 0.65
- YES
- 1.70
- 35
- 2,1
- 3,5
-
Product availability
- central warehouse 2 pcs
- available within 5 working days >10 pcs
- 786.69 €
- Not sellable online
-
- Calpeda horizontal pressure booster pump NGX 3 100l GWS 400V 2,1-3,5bar
- ZB00046316
- 60
- 50
- 3x400
- 0,65
- YES
- 1,70
- 35
- 2,1
- 3,5
-
Product availability
- central warehouse 0 pcs
- available within 5 working days >10 pcs
- 890.80 €
- Not sellable online
Variant Product No.
Availability
Price (VAT incl.)
Calpeda horizontal pressure booster pump NGX 3 24l GWS 400V 2,1-3,5bar
Product No.: ZB00001340 Sale group: CECK EAN: 8596455026563
616.37 €
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 50
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 0,65
- Drinking water certificate
- YES
- Maximum current [A]
- 1,70
- Maximum liquid temperature [°C]
- 35
- Start pressure [bar]
- 2,1
- Stop pressure [bar]
- 3,5
You are viewing this variant
Calpeda horizontal pressure booster pump NGX 3 60l GWS 400V 2,1-3,5bar
Product No.: ZB00001355 Sale group: CECK EAN: 8596455030317
712.21 €
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 50
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 0.65
- Drinking water certificate
- YES
- Maximum current [A]
- 1.70
- Maximum liquid temperature [°C]
- 35
- Start pressure [bar]
- 2,1
- Stop pressure [bar]
- 3,5
Calpeda horizontal pressure booster pump NGX 3 80l GWS 400V 2,1-3,5bar
Product No.: ZB00001360 Sale group: CECK EAN: 8596455024606
786.69 €
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 50
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 0.65
- Drinking water certificate
- YES
- Maximum current [A]
- 1.70
- Maximum liquid temperature [°C]
- 35
- Start pressure [bar]
- 2,1
- Stop pressure [bar]
- 3,5
Calpeda horizontal pressure booster pump NGX 3 100l GWS 400V 2,1-3,5bar
Product No.: ZB00046316 Sale group: CECK EAN: 8596455034087 Manuf. No.: 0
890.80 €
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 50
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 0,65
- Drinking water certificate
- YES
- Maximum current [A]
- 1,70
- Maximum liquid temperature [°C]
- 35
- Start pressure [bar]
- 2,1
- Stop pressure [bar]
- 3,5
Product description
The Long-Time Favorite Home Pressure booster pump
Applications
- For supplying water from wells
- For use in homes and recreational facilities
- For irrigation
Advantages
- CERTIFIED FOR DRINKING WATER
- 5-year warranty on the GWS tank, 3-year warranty on the pump
- Safety - rapid air evacuation reduces the risk of air bubbles forming around the mechanical seal, thereby preventing damage to the mechanical seal due to insufficient lubrication and cooling
- Improved self-priming - NGX 3 and 4 pumps draw water from a depth of 9.5 m in less than 2 minutes; this feature allows the pump to be used with a long suction pipe and ensures safe operation in installations with standard suction head in shallow wells, even with a long suction pipe above the water level
- Low noise - an improved diffuser shape and flow control device (patented) directs the water flow from the impeller to the central part of the pump housing, reducing turbulence and velocity, and allowing the surrounding water to be effectively used for noise dampening
- Reliability - thanks to its new design, the NGX is more resistant to occasional operational anomalies
Basic components
- CALPEDA NGX centrifugal pump
- GWS pressure tank
- Five-way valve
- Adjustable pressure switch
- Pressure gauge
- Connection cable
Instructions
Technical Specifications
- Maximum flow [l/min]
- 60
- Maximum head [m]
- 50
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 0,65
- Drinking water certificate
- YES
- Maximum current [A]
- 1,70
- Maximum liquid temperature [°C]
- 35
- Start pressure [bar]
- 2,1
- Stop pressure [bar]
- 3,5
Product Safety Information
Company responsible for product safety:
PUMPA,a.s.
U Svitavy 54/1, Brno 618 00, CZ
e-mail: [email protected]
