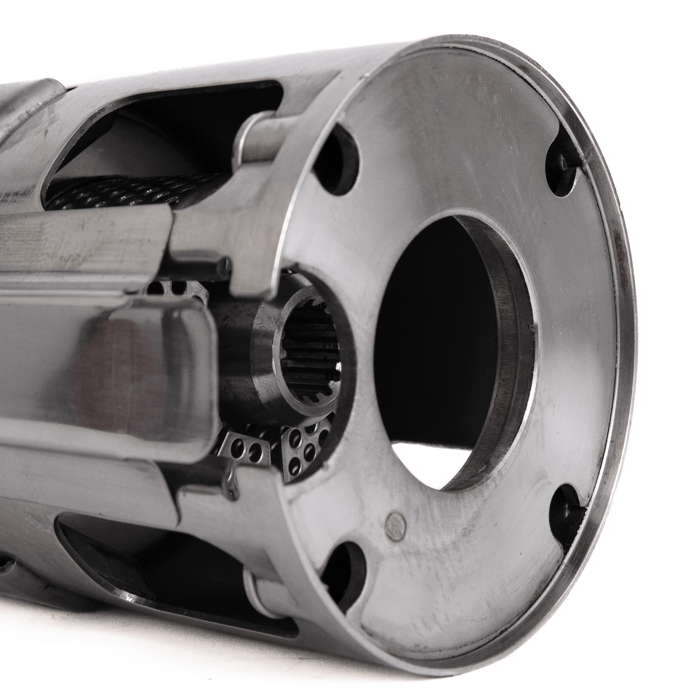

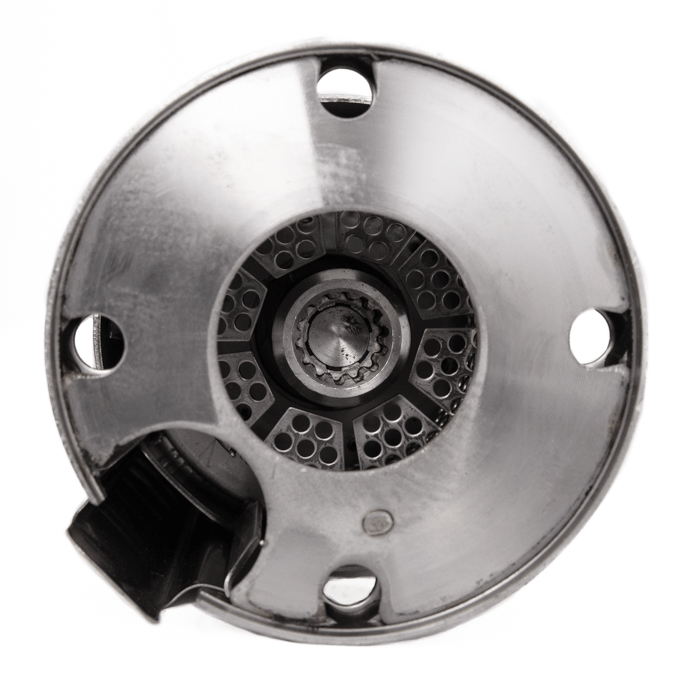

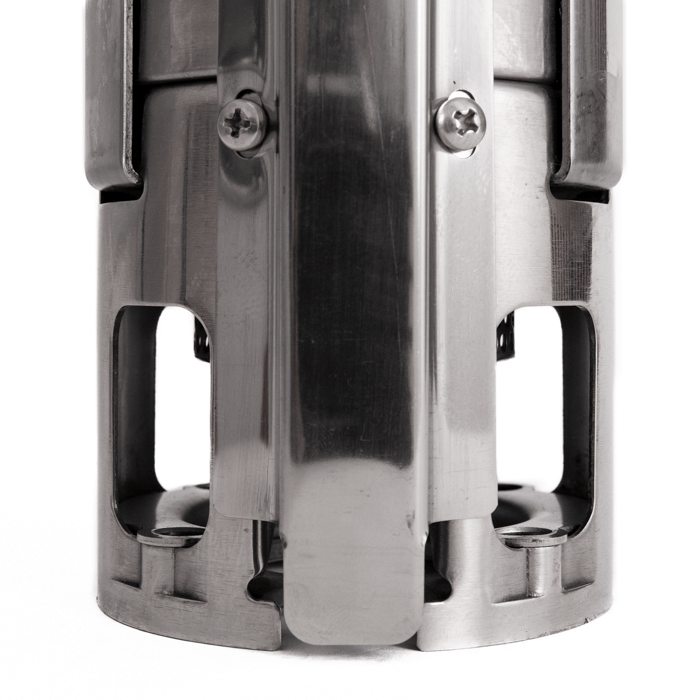

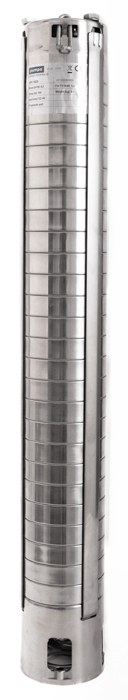

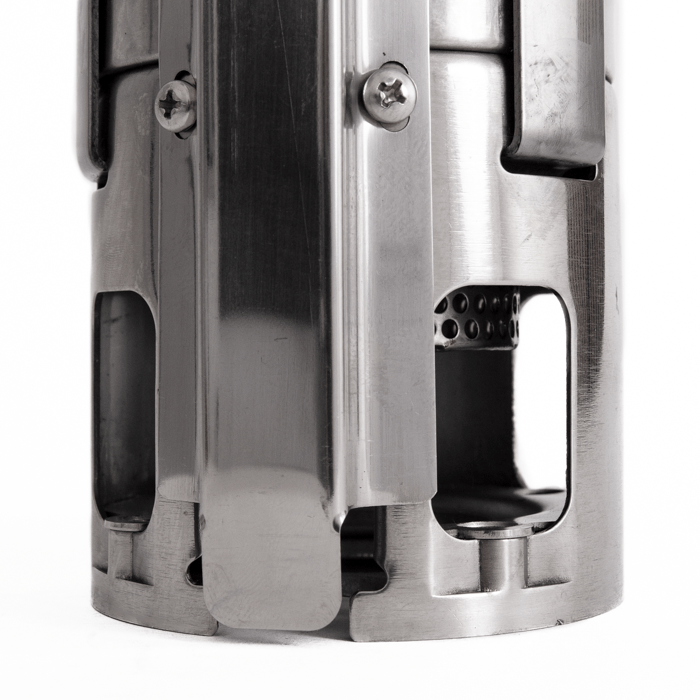

PUMPA inox line SPP-18 4-inch hydraulic part without motor

Drinking water certificate Stainless steel

previous next
PUMPA inox line SPP-18 4-inch hydraulic part without motor

PUMPA inox line SPP 4" submersible pumps are designed according to the latest technology and are made of corrosion and abrasion resistant stainless steel. The SPP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. See more

Technical Specifications

Maximum flow [l/min]
70
Maximum head [m]
38 - 251
Input voltage [V]
without motor
Power output - P2 [kW]
0.37 - 3

Show all Tech Specs

in stock >100 pcs

from 167.42 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS001372

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Drinking water certificate
  • Float switch
  • Maximum liquid temperature [°C]
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA inox line SPP-1806 4" hydraulic part without motor (0,37kW)

Product No.: ZB00059397 Sale group: CEST EAN: 8596455011538

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

167.42 €

Maximum flow [l/min]
70
Maximum head [m]
38
Input voltage [V]
without motor
Power output - P2 [kW]
0.37
Rated flow [l/m]
50
Rated head [m]
26
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1809 4" hydraulic part without motor (0,55kW)

Product No.: ZB00059398 Sale group: CEST EAN: 8596455011545

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

211.80 €

Maximum flow [l/min]
70
Maximum head [m]
57
Input voltage [V]
without motor
Power output - P2 [kW]
0.55
Rated flow [l/m]
50
Rated head [m]
38
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1812 4" hydraulic part without motor (0,75kW)

Product No.: ZB00059399 Sale group: CEST EAN: 8596455011552

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

255.84 €

Maximum flow [l/min]
70
Maximum head [m]
77
Input voltage [V]
without motor
Power output - P2 [kW]
0.75
Rated flow [l/m]
50
Rated head [m]
52
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1815 4" hydraulic part without motor (1,1kW)

Product No.: ZB00059400 Sale group: CEST EAN: 8596455011569

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

299.35 €

Maximum flow [l/min]
70
Maximum head [m]
97
Input voltage [V]
without motor
Power output - P2 [kW]
1.10
Rated flow [l/m]
50
Rated head [m]
69
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1818 4" hydraulic part without motor (1,1kW)

Product No.: ZB00059401 Sale group: CEST EAN: 8596455011576

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

339.57 €

Maximum flow [l/min]
70
Maximum head [m]
116
Input voltage [V]
without motor
Power output - P2 [kW]
1.10
Rated flow [l/m]
50
Rated head [m]
80
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1822 4" hydraulic part without motor (1,5kW)

Product No.: ZB00059402 Sale group: CEST EAN: 8596455011583

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

393.35 €

Maximum flow [l/min]
70
Maximum head [m]
142
Input voltage [V]
without motor
Power output - P2 [kW]
1.50
Rated flow [l/m]
50
Rated head [m]
98
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1825 4" hydraulic part without motor (1,5kW)

Product No.: ZB00059403 Sale group: CEST EAN: 8596455011590

in stock
>50 pcs
Product availability
  • central warehouse >50 pcs

442.91 €

Maximum flow [l/min]
70
Maximum head [m]
160
Input voltage [V]
without motor
Power output - P2 [kW]
1.50
Rated flow [l/m]
50
Rated head [m]
110
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1829 4" hydraulic part without motor (2,2kW)

Product No.: ZB00059404 Sale group: CEST EAN: 8596455011606

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

499.49 €

Maximum flow [l/min]
70
Maximum head [m]
185
Input voltage [V]
without motor
Power output - P2 [kW]
2.20
Rated flow [l/m]
50
Rated head [m]
127
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1833 4" hydraulic part without motor (2,2kW)

Product No.: ZB00059405 Sale group: CEST EAN: 8596455011613

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

602.87 €

Maximum flow [l/min]
70
Maximum head [m]
211
Input voltage [V]
without motor
Power output - P2 [kW]
2.20
Rated flow [l/m]
50
Rated head [m]
145
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1839 4" hydraulic part without motor (3kW)

Product No.: ZB00059406 Sale group: CEST EAN: 8596455011620

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

770.72 €

Maximum flow [l/min]
70
Maximum head [m]
251
Input voltage [V]
without motor
Power output - P2 [kW]
3
Rated flow [l/m]
50
Rated head [m]
172
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

Product description

Application

  • Drinking water supply for residential buildings from deep drilled wells
  • Utility and industrial water supply
  • Irrigation and other agricultural applications
  • Fire protection systems
  • Pressure amplification in high-rise buildings
  • Other applications

Characteristics

  • Stainless steel construction developed and manufactured to provide many years of fault-free operation
  • All metal parts are made of grade 304 stainless steel, except the shaft made of grade 431 stainless steel
  • Heavy-duty stainless steel discharge head with built-in check valve for long life and easy installation
  • Engine mounting specifications according to NEMA standard
  • High quality shaft bearings ensuring low friction and high wear resistance
  • Stainless steel impellers and diffusers for heavy loads providing optimum performance
  • Stainless steel strainer to prevent the ingress of sand and other impurities

Technical Specifications

Maximum flow [l/min]
70
Maximum head [m]
38 - 251
Input voltage [V]
without motor
Power output - P2 [kW]
0.37 - 3
Rated flow [l/m]
50
Rated head [m]
26 - 172
Delivery port ["]
5/4
Pump diameter ["]
4
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
40
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal
