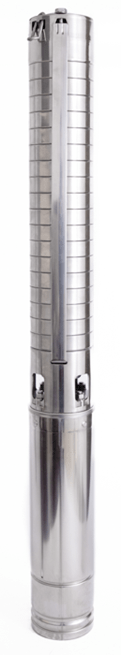

PUMPA inox line SPP-10 4-inch submersible pump 400V with Coverco motor PUMPA inox line SPP-10 4-inch submersible pump 400V with Coverco motor PUMPA inox line SPP-10 4-inch submersible pump 400V with Coverco motor PUMPA inox line SPP-10 4-inch submersible pump 400V with Coverco motor PUMPA inox line SPP-10 4-inch submersible pump 400V with Coverco motor PUMPA inox line SPP-10 4-inch submersible pump 400V with Coverco motor
PUMPA inox line SPP-10 4-inch submersible pump 400V with Coverco motor

PUMPA inox line SPP 4" submersible pumps are designed according to the latest technology and are made of corrosion and abrasion resistant stainless steel. The SPP series pumps meet the highest standards of energy efficiency and are suitable for the most demanding applications with their high performance, robust design and long service life. See more

Technical Specifications

Maximum flow [l/min]
40
Maximum head [m]
52 - 280
Input voltage [V]
3x400
Power output - P2 [kW]
0.37 - 2.20

Show all Tech Specs

in stock 7 pcs

from 549.39 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
PUMPA
Category:
Submersible borehole pumps
Product No.:
MAS001385

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Rated flow [l/m]
  • Rated head [m]
  • Delivery port ["]
  • Pump diameter ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Check valve
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA inox line SPP-1009 4" 0,37kW 400V submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060094 Sale group: CEST EAN: 8596455016564

in stock in 5 working days
>10 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days >10 pcs

549.39 €

Not sellable online

Maximum flow [l/min]
40
Maximum head [m]
52
Input voltage [V]
3x400
Power output - P2 [kW]
0.37
Rated flow [l/m]
30
Rated head [m]
38
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
250
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
1.35
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1013 4" 0,55kW 400V submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060098 Sale group: CEST EAN: 8596455016601

in stock in 5 working days
10 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 10 pcs

608.68 €

Not sellable online

Maximum flow [l/min]
40
Maximum head [m]
76
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Rated flow [l/m]
30
Rated head [m]
53
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
250
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
1.90
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1018 4" 0,75kW 400V submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060102 Sale group: CEST EAN: 8596455016649

in stock
2 pcs
Product availability
  • central warehouse 2 pcs
  • available within 5 working days >10 pcs

658.58 €

Not sellable online

Maximum flow [l/min]
40
Maximum head [m]
104
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Rated flow [l/m]
30
Rated head [m]
74
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
250
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1023 4" 1,1kW 400V submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060105 Sale group: CEST EAN: 8596455016670

in stock
5 pcs
Product availability
  • central warehouse 5 pcs
  • available within 5 working days >10 pcs

764.91 €

Not sellable online

Maximum flow [l/min]
40
Maximum head [m]
136
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Rated flow [l/m]
30
Rated head [m]
98
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
250
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
3.20
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1028 4" 1,5kW 400V submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060107 Sale group: CEST EAN: 8596455016694

in stock in 5 working days
4 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 4 pcs

940.75 €

Not sellable online

Maximum flow [l/min]
40
Maximum head [m]
166
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Rated flow [l/m]
30
Rated head [m]
121
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
250
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
3.90
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1033 4" 1,5kW 400V submersible pump with Coverco motor, cable 1,7m

Product No.: ZB00060109 Sale group: CEST EAN: 8596455016717

in stock in 5 working days
>10 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days >10 pcs

1,052.94 €

Not sellable online

Maximum flow [l/min]
40
Maximum head [m]
196
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Rated flow [l/m]
30
Rated head [m]
143
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
250
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
3.90
Maximum liquid temperature [°C]
30
Cable length [m]
1.70
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1040 4" 2,2kW 400V submersible pump with Coverco motor, cable 2,5m

Product No.: ZB00060111 Sale group: CEST EAN: 8596455016731

in stock in 5 working days
4 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 4 pcs

1,233.18 €

Not sellable online

Maximum flow [l/min]
40
Maximum head [m]
235
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Rated flow [l/m]
30
Rated head [m]
170
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
250
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
6.10
Maximum liquid temperature [°C]
30
Cable length [m]
2.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

PUMPA inox line SPP-1048 4" 2,2kW 400V submersible pump with Coverco motor, cable 2,5m

Product No.: ZB00060113 Sale group: CEST EAN: 8596455016755

in stock in 5 working days
2 pcs
Product availability
  • central warehouse 0 pcs
  • available within 5 working days 2 pcs

1,419.67 €

Not sellable online

Maximum flow [l/min]
40
Maximum head [m]
280
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Rated flow [l/m]
30
Rated head [m]
205
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
250
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
6.10
Maximum liquid temperature [°C]
30
Cable length [m]
2.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

Product description

Application

  • Drinking water supply of residential buildings from deep drilled wells
  • Utility and industrial water supply
  • Irrigation and other agricultural applications
  • Fire protection systems
  • Pressure amplification in high-rise buildings
  • Other applications

Characteristics

  • Stainless steel construction developed and manufactured to provide many years of fault-free operation
  • All metal parts are made of grade 304 stainless steel, except the shaft made of grade 431 stainless steel

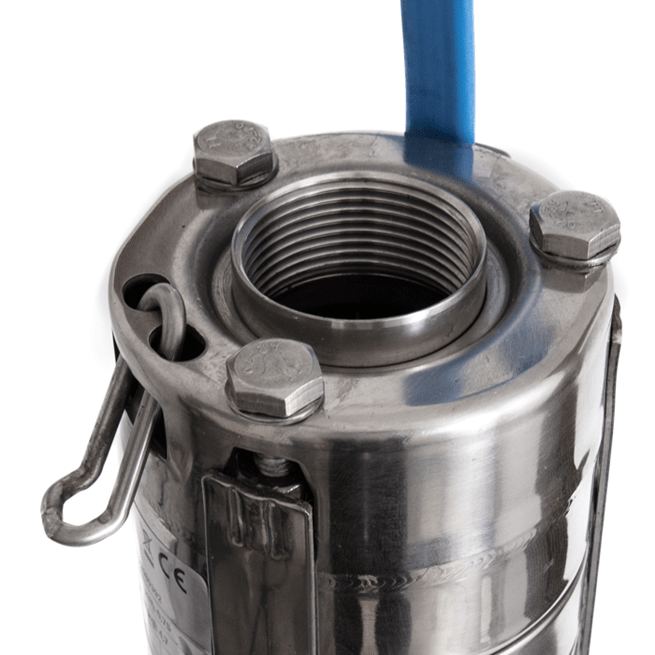

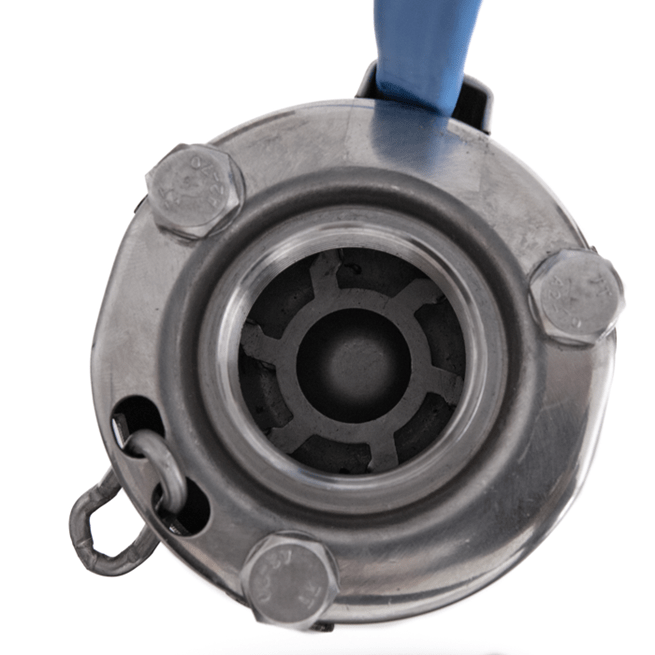

  • Heavy-duty stainless steel discharge head with built-in check valve for long life and easy installation
  • Engine mounting specifications according to NEMA standard
  • High quality shaft bearings ensuring low friction and high wear resistance
  • Stainless steel impellers and diffusers for heavy providing optimum performance

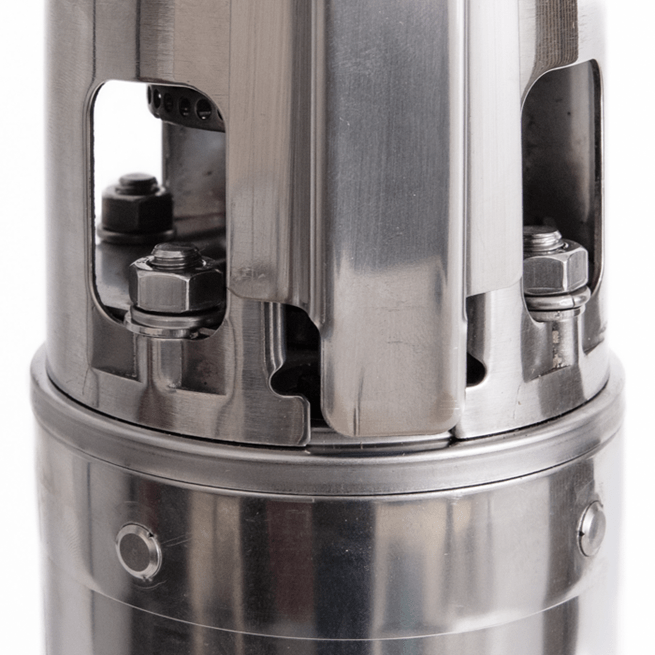

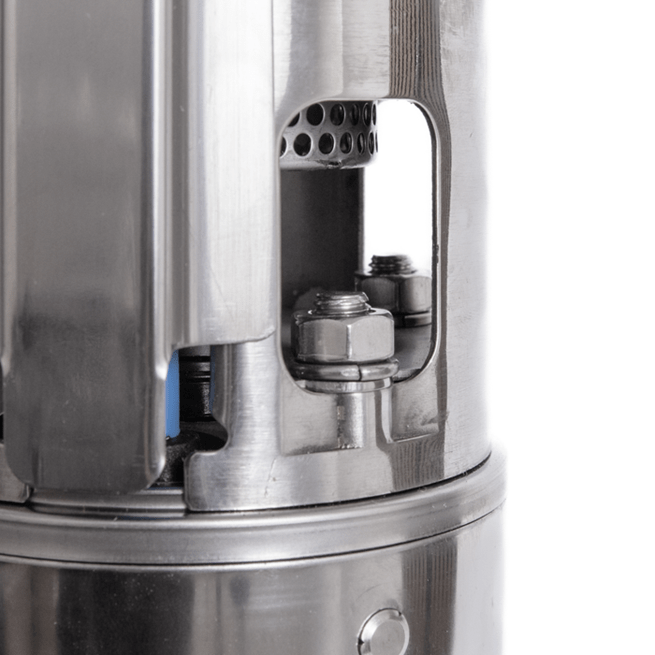

  • Stainless steel strainer to prevent the ingress of sand and other impurities

Instructions

Technical Specifications

Maximum flow [l/min]
40
Maximum head [m]
52 - 280
Input voltage [V]
3x400
Power output - P2 [kW]
0.37 - 2.20
Rated flow [l/m]
30
Rated head [m]
38 - 205
Delivery port ["]
5/4
Pump diameter ["]
4
Maximum immersion depth [m]
250
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
1.35 - 6.10
Maximum liquid temperature [°C]
30
Cable length [m]
1.70 - 2.50
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Maximum borehole diameter [mm]
98
Impeller material
stainless steel
Construction
centrifugal

Product Safety Information

Company responsible for product safety:
PUMPA,a.s.
U Svitavy 54/1, Brno 618 00, CZ
e-mail: [email protected]
