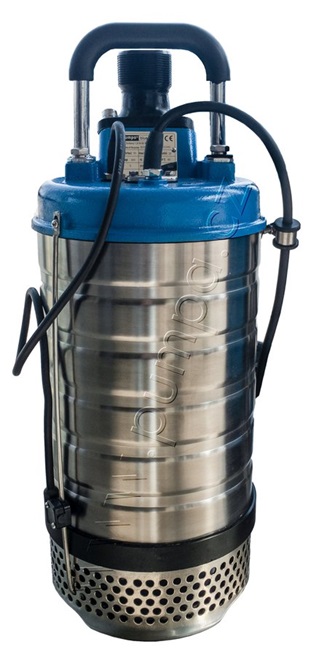

PUMPA blue line PRO PSXA smart submersible drainage pump

PUMPA blue line PRO PSXA smart submersible drainage pump

Smart submersible stainless steel drainage pump. Designed for pumping drainage water in the fields of civil engineering, such as mines, quarries, suitable for draining flooded rooms or pumping reservoirs, ponds, ponds, reservoirs, or rain collectors. The pump can be rented at our rental shop. See more

Technical Specifications

Maximum flow [l/min]
500 - 2,166.67
Maximum head [m]
18 - 48.50
Input voltage [V]
3x400
Power output - P2 [kW]
1.50 - 11

Show all Tech Specs

from 963.99 VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
PUMPA
Category:
Rainwater pumps
Product No.:
MAS000997

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Speed ​​control
  • Capacitor
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Maximum flow [l/min]
500
Maximum head [m]
21
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Delivery port ["]
2
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
3.50
Maximum liquid temperature [°C]
40
Cable length [m]
15
Maximum particle size [mm]
8.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
Maximum flow [l/min]
533.30
Maximum head [m]
25
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Delivery port ["]
2
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
5
Maximum liquid temperature [°C]
40
Cable length [m]
15
Maximum particle size [mm]
8.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
Maximum flow [l/min]
916.60
Maximum head [m]
18.50
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Delivery port ["]
3
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
5
Maximum liquid temperature [°C]
40
Cable length [m]
15
Maximum particle size [mm]
8.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
Maximum flow [l/min]
600
Maximum head [m]
32
Input voltage [V]
3x400
Power output - P2 [kW]
3.70
Delivery port ["]
2
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
7.70
Maximum liquid temperature [°C]
40
Cable length [m]
15
Maximum particle size [mm]
8.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
Maximum flow [l/min]
1,000
Maximum head [m]
29
Input voltage [V]
3x400
Power output - P2 [kW]
3.70
Delivery port ["]
3
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
7.70
Maximum liquid temperature [°C]
40
Cable length [m]
15
Maximum particle size [mm]
8.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
Maximum flow [l/min]
1,583.30
Maximum head [m]
18
Input voltage [V]
3x400
Power output - P2 [kW]
3.70
Delivery port ["]
4
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
7.70
Maximum liquid temperature [°C]
40
Cable length [m]
15
Maximum particle size [mm]
8.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
Maximum flow [l/min]
1,750
Maximum head [m]
23
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Delivery port ["]
4
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
11.40
Maximum liquid temperature [°C]
40
Cable length [m]
15
Maximum particle size [mm]
8.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
Maximum flow [l/min]
1,466.67
Maximum head [m]
41
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Delivery port ["]
4
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
15
Maximum liquid temperature [°C]
40
Cable length [m]
8
Maximum particle size [mm]
11.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
Maximum flow [l/min]
2,166.67
Maximum head [m]
32
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Delivery port ["]
6
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
15
Maximum liquid temperature [°C]
40
Cable length [m]
8
Maximum particle size [mm]
11.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
Maximum flow [l/min]
1 440
Maximum head [m]
48,50
Input voltage [V]
3x400
Power output - P2 [kW]
11
Delivery port ["]
4
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
22
Maximum liquid temperature [°C]
40
Cable length [m]
8
Maximum particle size [mm]
11,50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO

Product description

PUMPA Blue Line PRO PSXA Pump Application

  • water drainage in the fields of civil engineering, such as mines, quarries
  • suitable for drainage of flooded rooms
  • pumping of reservoirs, ponds, septic tanks, rainwater collectors

PUMPA Blue Line PRO PSXA Pump Features

  • Reversing protection to ensure correct rotation of the impeller.
  • Impeller opening or jamming protection to prevent accidents.
  • Automatic stop in case of overfilling or non-standard voltage and resuming operation after 5 min.
  • The pump stops running when it reaches a high temperature and starts automatically when it cools down to the safe temperature.
  • Adjustable height of the water detector for better operation control and stopping the pump.
  • The pump stops operating within 60 seconds from the moment the water level reaches below the level of the detector, it remains idle for 180 seconds
    and then, if the water level rises above the level of the detector, it resumes operation.
  • Quick overview of pump operation and fault history.

Technical Specifications

Maximum flow [l/min]
500 - 2,166.67
Maximum head [m]
18 - 48.50
Input voltage [V]
3x400
Power output - P2 [kW]
1.50 - 11
Delivery port ["]
2, 3, 4, 6
Maximum immersion depth [m]
25
Float switch
NO
Maximum current [A]
3.50 - 22
Maximum liquid temperature [°C]
40
Cable length [m]
8 - 15
Maximum particle size [mm]
8.50 - 11.50
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
YES
Speed ​​control
NO
Capacitor
NO
Construction
submersible
Grinder
NO
