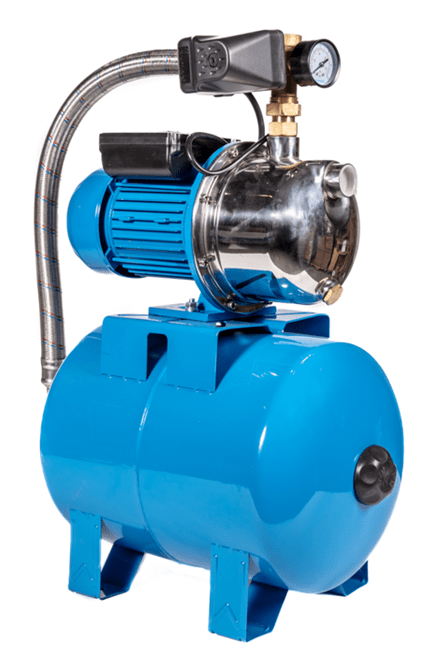

PUMPA blue line PJm 101C pressure booster pump with Pumpa vessel

previous next
PUMPA blue line PJm 101C pressure booster pump with Pumpa vessel

Home automatic waterworks with Pump vessel. For water supply from wells, for use in recreational facilities, in gardens and for irrigation. Maximum suction capacity 8 m. See more

Technical Specifications

Maximum flow [l/min]
60
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75

Show all Tech Specs

available in 10 working days >100 pcs

from 249.60 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
PUMPA
Category:
Pressure booster pumps with interchangeable membrane expansion vessel
Product No.:
MAS000045

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Start pressure [bar]
  • Stop pressure [bar]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

PUMPA blue linepressure booster pump PJM101C PUMPA 24l horizontal 230V 2,1-3,5bar

Product No.: ZB00001269 Sale group: CEBL EAN: 8596455001942

available in 10 working days
>50 pcs
Product availability
  • central warehouse 0 pcs
  • available within 10 working days >50 pcs

249.60 €

Maximum flow [l/min]
60
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
24
Maximum current [A]
5.50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with expansion vessel

PUMPA blue line pressure booster pump PJM101C PUMPA 50l horizontal 230V 2,1-3,5bar

Product No.: ZB00001270 Sale group: CEBL EAN: 8596455001959

available in 10 working days
>10 pcs
Product availability
  • central warehouse 0 pcs
  • available within 10 working days >10 pcs

290.95 €

Maximum flow [l/min]
60
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
50
Maximum current [A]
5.50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with expansion vessel

PUMPA blue line pressure booster pump PJM101C PUMPA 80l horizontal 230V 2,1-3,5bar

Product No.: ZB00001271 Sale group: CEBL EAN: 8596455001966

available in 10 working days
>10 pcs
Product availability
  • central warehouse 0 pcs
  • available within 10 working days >10 pcs

352.20 €

Maximum flow [l/min]
60
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
80
Maximum current [A]
5.50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with expansion vessel

Product description

Instructions

Technical Specifications

Maximum flow [l/min]
60
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
24, 50, 80
Maximum current [A]
5.50
Maximum liquid temperature [°C]
35
Start pressure [bar]
2,1
Stop pressure [bar]
3,5
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
noryl
Construction
with expansion vessel
