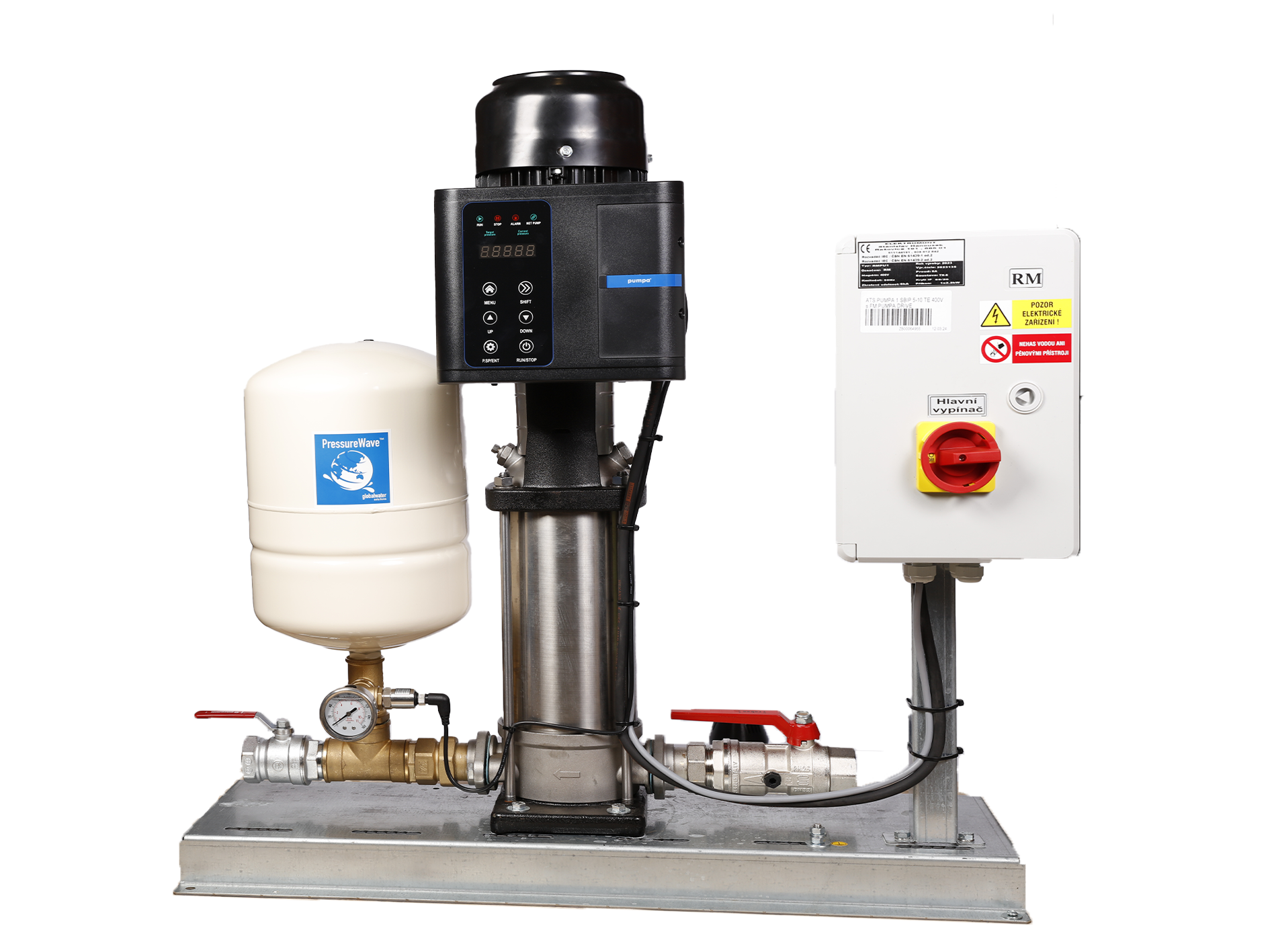

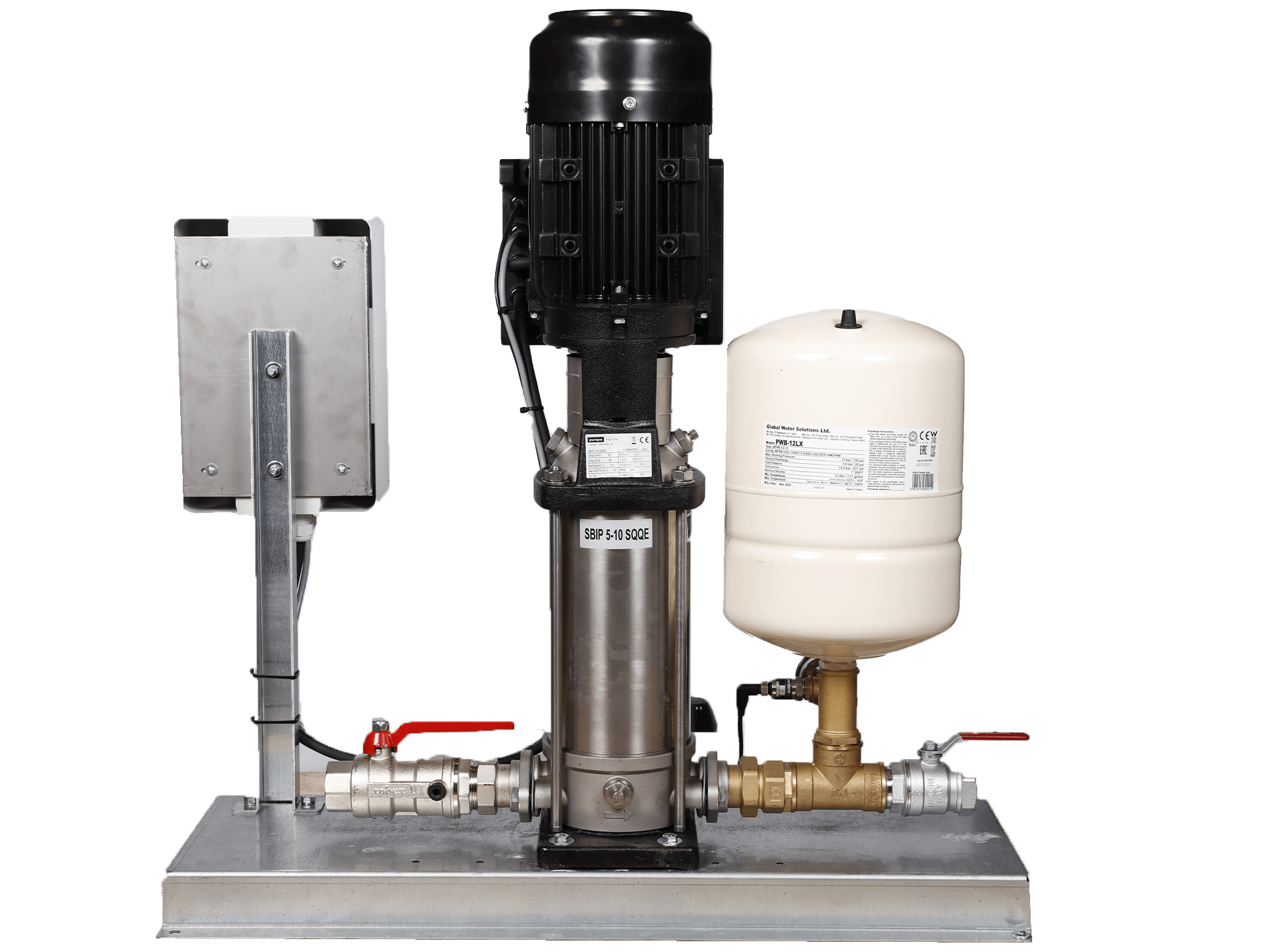

PUMPA ATS line 1 SBI(P) booster set with vertical pumps with frequency converter PUMPA DRIVE

PUMPA ATS line 1 SBI(P) booster set with vertical pumps with frequency converter PUMPA DRIVE

Automatic pressure stations of the brand Pumpa are designed for pumping and increasing the pressure of clean water. See more

Technical Specifications

Maximum flow [l/min]
140 - 475
Maximum head [m]
39 - 142
Input voltage [V]
3x400
Power output - P2 [kW]
1.10 - 7.50

Show all Tech Specs

from 3,129.15 VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
PUMPA
Category:
Pressure booster sets with frequency converter - vertical
Product No.:
MAS001215

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Pump design
  • Impeller material
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Maximum flow [l/min]
140
Maximum head [m]
51
Input voltage [V]
3x400
Power output - P2 [kW]
1,10
Suction port ["]
5/4
Delivery port ["]
5/4
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
12
Maximum current [A]
2,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
140
Maximum head [m]
65
Input voltage [V]
3x400
Power output - P2 [kW]
1,50
Suction port ["]
5/4
Delivery port ["]
5/4
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
12
Maximum current [A]
3,70
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
140
Maximum head [m]
100
Input voltage [V]
3x400
Power output - P2 [kW]
2,20
Suction port ["]
5/4
Delivery port ["]
5/4
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
12
Maximum current [A]
5,30
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
140
Maximum head [m]
135
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
5/4
Delivery port ["]
5/4
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
12
Maximum current [A]
7
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
216,60
Maximum head [m]
39
Input voltage [V]
3x400
Power output - P2 [kW]
1,50
Suction port ["]
6/4
Delivery port ["]
6/4
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
18
Maximum current [A]
3,80
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
216,60
Maximum head [m]
59
Input voltage [V]
3x400
Power output - P2 [kW]
2,20
Suction port ["]
6/4
Delivery port ["]
6/4
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
18
Maximum current [A]
4,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
216,60
Maximum head [m]
90
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
6/4
Delivery port ["]
6/4
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
18
Maximum current [A]
7
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
216,60
Maximum head [m]
142
Input voltage [V]
3x400
Power output - P2 [kW]
5,50
Suction port ["]
6/4
Delivery port ["]
6/4
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
18
Maximum current [A]
11,30
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
390
Maximum head [m]
40
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
24
Maximum current [A]
7
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
390
Maximum head [m]
68
Input voltage [V]
3x400
Power output - P2 [kW]
4
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
24
Maximum current [A]
8,80
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
390
Maximum head [m]
97
Input voltage [V]
3x400
Power output - P2 [kW]
5,50
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
24
Maximum current [A]
10,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
390
Maximum head [m]
124
Input voltage [V]
3x400
Power output - P2 [kW]
7,50
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
24
Maximum current [A]
14,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
475
Maximum head [m]
71
Input voltage [V]
3x400
Power output - P2 [kW]
5,50
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
24
Maximum current [A]
10,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
Maximum flow [l/min]
475
Maximum head [m]
100
Input voltage [V]
3x400
Power output - P2 [kW]
7,50
Suction port ["]
2
Delivery port ["]
2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
24
Maximum current [A]
14,90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel

Product description

Use

  • waterworks
  • housing estate type residential buildings
  • hotels
  • industrial plants
  • hospitals, schools, etc.

Advantages

  • long service life of the pumping system
  • energy saving
  • high reliability
  • wide area of application
  • The ATS is equipped with one output relay that can be used for fault monitoring for each pump
  • the operating state of the automatic pressure station is displayed on the display of the frequency converter using code states
  • On the display of frequency converters, it is possible to display the set pressure, frequency, current and current pressure

Technical Specifications

Maximum flow [l/min]
140 - 475
Maximum head [m]
39 - 142
Input voltage [V]
3x400
Power output - P2 [kW]
1.10 - 7.50
Suction port ["]
5/4, 6/4, 2
Delivery port ["]
5/4, 6/4, 2
Maximum suction lift [m]
8
Drinking water certificate
YES
Vessel volume [l]
12, 18, 24
Maximum current [A]
2.90 - 14.90
Maximum liquid temperature [°C]
60
Protection [IP]
55
Dry run protection
NO
Off switch
YES
Speed ​​control
YES
Pump design
vertical
Impeller material
stainless steel
