PUMPA Presscontrol PPC5-60A-DP 230V 16A digital adjustment of start and stop pressure, with auto-restart, with 0.3L pressure tank
The pressure control unit (Presscontrol) starts and stops the pump based on detected data regarding water flow in the pipe, current water consumption, and pressure in the pipes. Presscontrol replaces the traditional pump control systems consisting of a pressure tank, pressure switch, dry-run protection,<br/>check valve, cross-piece, etc. Typical applications include water supply systems and the use of greywater in single-family homes, apartment buildings, cottages, horticulture, gardening, and agriculture.
Technical Specifications
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum current [A]
- 16
- Maximum liquid temperature [°C]
- 60
- Brand:
- PUMPA
- Category:
- Presscontrols
- Product No.:
- ZB00074292
- Sale group:
- CECA
- EAN:
- 8596455046110
Product variants
-
- PUMPA Presscontrol PPC5-60A-DP 230V 16A digital adjustment of start and stop pressure, with auto-restart, with 0.3L pressure tank
- ZB00074292
- 1
- 1
- 16
- 60
- adjustable
- 10
- 0.50
- 65
-
Product availability
- central warehouse >100 pcs
- 98.01 €
Variant Product No.
Availability
Price (VAT incl.)
PUMPA Presscontrol PPC5-60A-DP 230V 16A digital adjustment of start and stop pressure, with auto-restart, with 0.3L pressure tank
Product No.: ZB00074292 Sale group: CECA EAN: 8596455046110
98.01 €
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum current [A]
- 16
- Maximum liquid temperature [°C]
- 60
- Start pressure [bar]
- adjustable
- Maximum pressure [bar]
- 10
- Cable length [m]
- 0.50
- Protection [IP]
- 65
You are viewing this variant
Product description
The pressure control unit (Presscontrol) starts and stops the pump based on detected data regarding water flow in the pipes, current water consumption, and pipe pressure. Presscontrol replaces traditional pump control systems consisting of a pressure tank, pressure switch, dry-run protection,
check valve, cross-piece, etc. Typical applications include water supply and rainwater harvesting systems in single-family homes, apartment buildings, cottages, horticulture, gardening, and agriculture.
Features and Key Benefits

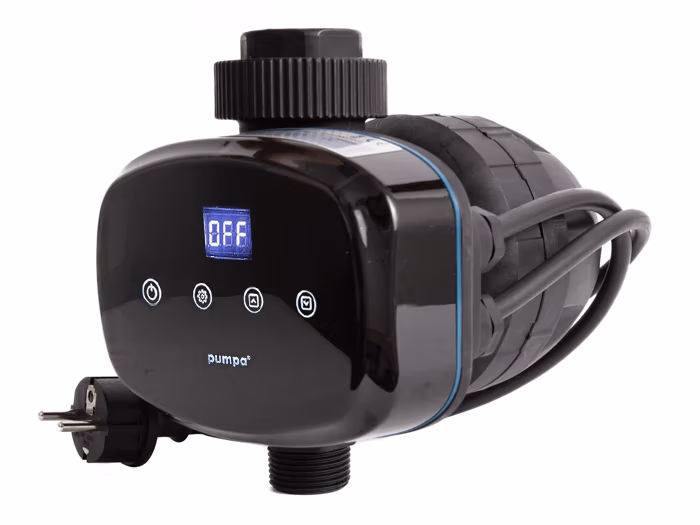

- New pressure sensor technology – the digital display shows the current pressure in the pipeline in real time.
- Two operating modes, which can be switched at any time in the unit settings as needed
Pressure mode – functions as a pressure switch
Flow mode – functions as a presscontrol
- Integrated check valve
- Low-water detection and restart – the unit protects the pump from dry running.
- Forced start function (auto-restart) prevents internal pump blockage during prolonged non-use (the unit automatically starts after more than 48 hours of inactivity).
- Plug & Play design – integrated socket for connecting the pump and a power plug for connecting to the electrical grid.
- Integrated pressure tank – includes a small 0.3-liter pressure tank that eliminates frequent pump starts caused by, for example, intermittent irrigation when using a hand sprayer
Instructions
Technical Specifications
- Suction port ["]
- 1
- Delivery port ["]
- 1
- Maximum current [A]
- 16
- Maximum liquid temperature [°C]
- 60
- Start pressure [bar]
- adjustable
- Maximum pressure [bar]
- 10
- Cable length [m]
- 0.50
- Protection [IP]
- 65
