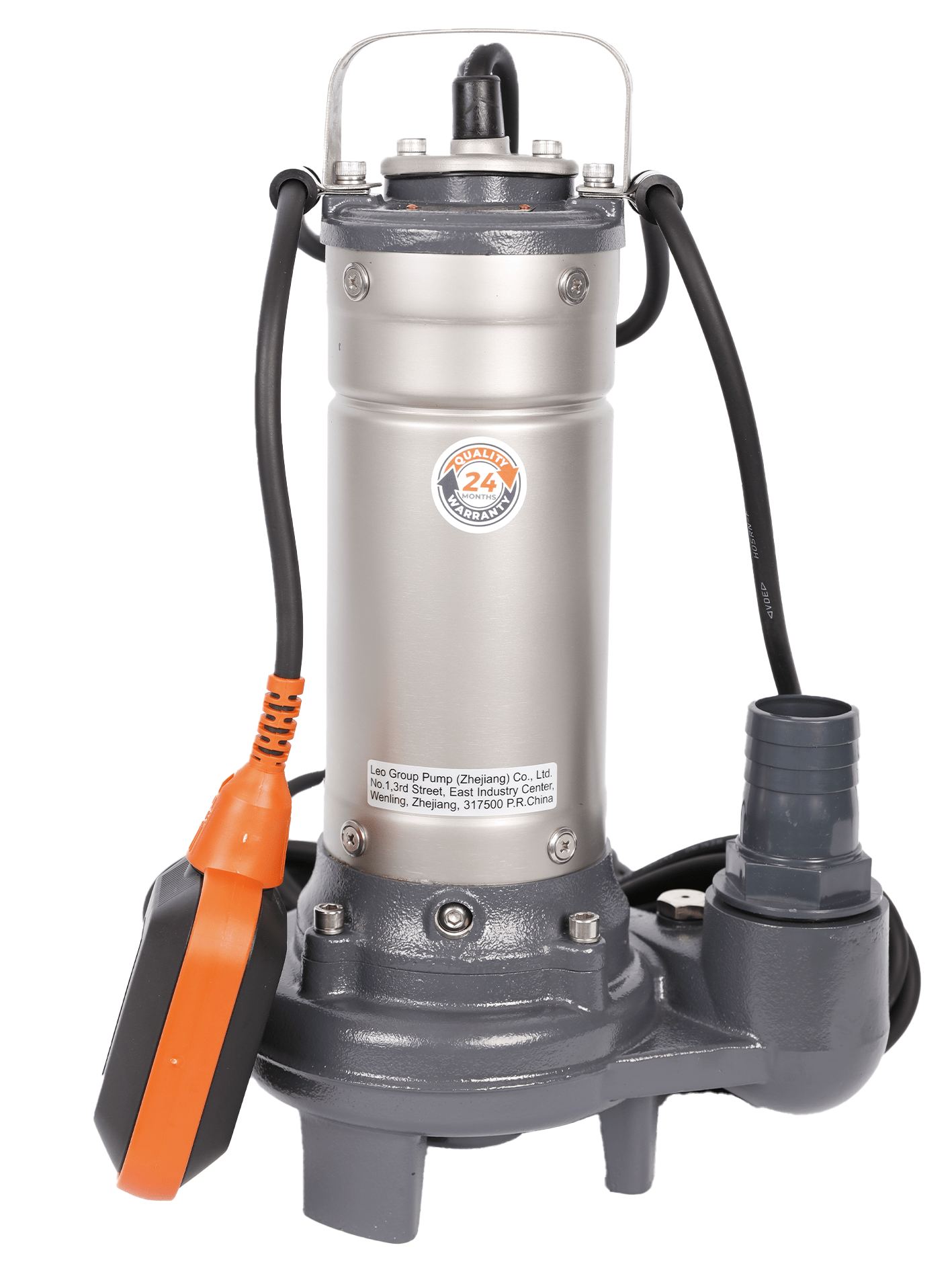

Leo LSWm submersible slurry pump

previous next
Leo LSWm submersible slurry pump

The submersible sludge pump with modern design is economical and reliable. See more

Technical Specifications

Maximum flow [l/min]
200 - 533
Maximum head [m]
9 - 19
Input voltage [V]
230
Power output - P2 [kW]
0.25 - 1.50

Show all Tech Specs

in stock >100 pcs

from 121.34 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
LEO
Category:
Wastewater pumps to the septic tank
Product No.:
MAS001544

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Leo LSWm30A 230V 0.25kW submersible sludge pump with float, cable 6m

Product No.: ZB00068421 Sale group: CELEO EAN: 8596455038689 Manuf. No.: LSWM30A

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

121.34 €

Maximum flow [l/min]
200
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0.25
Delivery port ["]
6/4
Maximum immersion depth [m]
5
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
3
Maximum liquid temperature [°C]
40
Cable length [m]
6
Maximum particle size [mm]
15
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Leo LSWm50A 230V 0.37kW submersible sludge pump with float, cable 6m

Product No.: ZB00068422 Sale group: CELEO EAN: 8596455038696 Manuf. No.: LSWM50A

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

151.66 €

Maximum flow [l/min]
216
Maximum head [m]
11
Input voltage [V]
230
Power output - P2 [kW]
0.37
Delivery port ["]
6/4
Maximum immersion depth [m]
5
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
3.50
Maximum liquid temperature [°C]
40
Cable length [m]
6
Maximum particle size [mm]
20
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Leo LSWm75A 230V 0.55kW submersible sludge pump with float, cable 6m

Product No.: ZB00066873 Sale group: CELEO EAN: 8596455038641 Manuf. No.: LSWM75A

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

179.69 €

Maximum flow [l/min]
266
Maximum head [m]
13.50
Input voltage [V]
230
Power output - P2 [kW]
0.55
Delivery port ["]
2
Maximum immersion depth [m]
5
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
4.50
Maximum liquid temperature [°C]
40
Cable length [m]
6
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Leo LSWm100A 230V 0.75kW submersible sludge pump with float cable 10m

Product No.: ZB00068414 Sale group: CELEO EAN: 8596455038658 Manuf. No.: LSWM100A

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

215.36 €

Maximum flow [l/min]
316
Maximum head [m]
17
Input voltage [V]
230
Power output - P2 [kW]
0.75
Delivery port ["]
2
Maximum immersion depth [m]
5
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
5.50
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
25
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Leo LSWm150A 230V 1.1kW submersible sludge pump with float, cable 10m

Product No.: ZB00068415 Sale group: CELEO EAN: 8596455038665 Manuf. No.: LSWM150A

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

250.20 €

Maximum flow [l/min]
433
Maximum head [m]
13.50
Input voltage [V]
230
Power output - P2 [kW]
1.10
Delivery port ["]
2
Maximum immersion depth [m]
5
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
6
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
30
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Leo LSWm200A 230V 1.5kW submersible sludge pump with float, cable 10m

Product No.: ZB00068416 Sale group: CELEO EAN: 8596455038672 Manuf. No.: LSWM200A

in stock
>10 pcs
Product availability
  • central warehouse >10 pcs

318.74 €

Maximum flow [l/min]
533
Maximum head [m]
19
Input voltage [V]
230
Power output - P2 [kW]
1.50
Delivery port ["]
2
Maximum immersion depth [m]
5
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
8.50
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
30
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Product description

The submersible sludge pump with a modern design is economical and reliable.

Use

  • Municipal waste water pumping
  • Domestic wastewater pumping
  • Pumping of river waste water
  • Irrigation of farms and farms
  • Pumping of waste water from administrative and commercial buildings
  • Pumping waste houses in the household
  • Pumping out water from the basement and during floods
  • For wastewater treatment plants
  • For irrigation systems
  • For agriculture

Technical Specifications

Maximum flow [l/min]
200 - 533
Maximum head [m]
9 - 19
Input voltage [V]
230
Power output - P2 [kW]
0.25 - 1.50
Delivery port ["]
6/4, 2
Maximum immersion depth [m]
5
Drinking water certificate
NO
Float switch
YES
Maximum current [A]
3 - 8.50
Maximum liquid temperature [°C]
40
Cable length [m]
6 - 10
Maximum particle size [mm]
15 - 30
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO
