KSB AMA PORTER submersible wastewater pumps 3x400V

  • KSB AMA PORTER submersible wastewater pumps 3x400V
    KSB AMA PORTER submersible wastewater pumps 3x400V
  • KSB AMA PORTER submersible wastewater pumps 3x400V
    KSB AMA PORTER submersible wastewater pumps 3x400V
  • KSB AMA PORTER submersible wastewater pumps 3x400V
    KSB AMA PORTER submersible wastewater pumps 3x400V
  • KSB AMA PORTER submersible wastewater pumps 3x400V
    KSB AMA PORTER submersible wastewater pumps 3x400V

previous next
KSB AMA PORTER submersible wastewater pumps 3x400V KSB AMA PORTER submersible wastewater pumps 3x400V KSB AMA PORTER submersible wastewater pumps 3x400V KSB AMA PORTER submersible wastewater pumps 3x400V
KSB AMA PORTER submersible wastewater pumps 3x400V

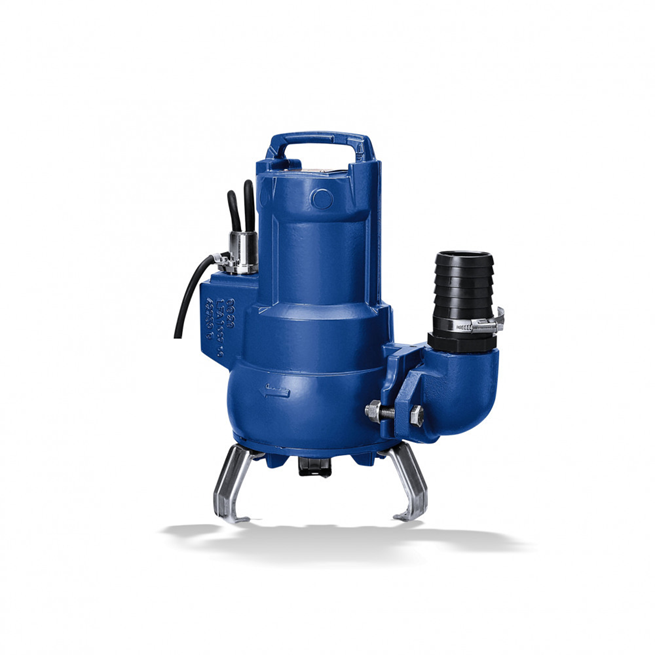

Vertical single-stage fully floodable submersible waste water pump in close-coupled design (grey cast iron variant), non-explosion-proof. See more

Technical Specifications

Maximum flow [l/min]
291.60 - 666.60
Maximum head [m]
8.20 - 21
Input voltage [V]
3x400
Power output - P2 [kW]
0.55 - 1.50

Show all Tech Specs

in stock >10 pcs

from 722.30 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
KSB
Category:
Wastewater pumps
Product No.:
MAS000611

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

KSB Ama Porter 500 ND-1 0,55kW 400V 10m cable, without float switch

Product No.: ZB00003417 Sale group: CEKB Manuf. No.: 39017191

in stock
3 pcs
Product availability
  • central warehouse 3 pcs

722.30 €

Maximum flow [l/min]
350
Maximum head [m]
10
Input voltage [V]
3x400
Power output - P2 [kW]
0.55
Delivery port ["]
2
Maximum immersion depth [m]
15
Float switch
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
45
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
Construction
submersible
Grinder
NO

KSB Ama Porter 501 ND 0,75kW 400V 10m cable, without float switch

Product No.: ZB00003413 Sale group: CEKB Manuf. No.: 39017103

in stock
4 pcs
Product availability
  • central warehouse 4 pcs

829.35 €

Maximum flow [l/min]
366
Maximum head [m]
12
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Delivery port ["]
2
Maximum immersion depth [m]
15
Float switch
NO
Maximum current [A]
2.80
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
45
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
Construction
submersible
Grinder
NO

KSB Ama Porter 502 ND-1 1,1kW 400V 10m cable, without float switch

Product No.: ZB00016440 Sale group: CEKB Manuf. No.: 39017104

in stock
6 pcs
Product availability
  • central warehouse 6 pcs

1,120.07 €

Maximum flow [l/min]
433.30
Maximum head [m]
13.80
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Delivery port ["]
2
Maximum immersion depth [m]
4.50
Float switch
NO
Maximum current [A]
3
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
43
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
Construction
submersible
Grinder
NO

KSB Ama Porter 503 ND 1,5kW 400V 10m cable, without float switch

Product No.: ZB00003433 Sale group: CEKB Manuf. No.: 39017105

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,282.37 €

Maximum flow [l/min]
483.30
Maximum head [m]
16.20
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Delivery port ["]
2
Maximum immersion depth [m]
4.50
Float switch
NO
Maximum current [A]
3.50
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
41
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
Construction
submersible
Grinder
NO

KSB Ama Porter S 545 ND 1,5kW 400V 10m cable with cutter

Product No.: ZB00003414 Sale group: CEKB Manuf. No.: 39017859

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

1,892.32 €

Maximum flow [l/min]
291.60
Maximum head [m]
21
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Delivery port ["]
2
Maximum immersion depth [m]
4.50
Float switch
NO
Maximum current [A]
3.50
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
7
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
Construction
submersible
Grinder
NO

KSB Ama Porter 601 ND 0,75kW 400V 10m cable, without float switch

Product No.: ZB00003412 Sale group: CEKB Manuf. No.: 39017109

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,330.50 €

Maximum flow [l/min]
500
Maximum head [m]
8.20
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Delivery port ["]
2 1/2
Maximum immersion depth [m]
4.50
Float switch
NO
Maximum current [A]
2.80
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
60
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
Construction
submersible
Grinder
NO

KSB Ama Porter 602 ND 1,1kW 400V 10m cable, without float switch

Product No.: ZB00016444 Sale group: CEKB Manuf. No.: 39017110

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,428.62 €

Check availability

Maximum flow [l/min]
583.30
Maximum head [m]
10.20
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Delivery port ["]
2 1/2
Maximum immersion depth [m]
4.50
Float switch
NO
Maximum current [A]
3
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
58
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
Construction
submersible
Grinder
NO

KSB Ama Porter 603 ND 1,5kW 400V 10m cable, without float switch

Product No.: ZB00003434 Sale group: CEKB Manuf. No.: 39017111

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

1,558.79 €

Maximum flow [l/min]
666.60
Maximum head [m]
12.40
Input voltage [V]
3x400
Power output - P2 [kW]
1.50
Delivery port ["]
2 1/2
Maximum immersion depth [m]
4.50
Float switch
NO
Maximum current [A]
3.50
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
56
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
Construction
submersible
Grinder
NO

Product description

Benefits

  • High operating reliability due to dry, pressure-tight and encapsulated squirrel-cage motor, thermal class F
  • Long service life with shaft made of corrosion-resistant stainless steel
  • Ease of service with wetted bolts made of stainless steel which are easy to undo even after years of operation
  • Trouble-free operation: clogging by coarse particles is prevented by large free passage (free-flow impeller) or by cutter with high mechanical resistance for waste water
  • Stationary pump sets easy to install and remove with automatic, bolt-free connection; leakage prevented by elastic sealing elements

Instructions

Technical Specifications

Maximum flow [l/min]
291.60 - 666.60
Maximum head [m]
8.20 - 21
Input voltage [V]
3x400
Power output - P2 [kW]
0.55 - 1.50
Delivery port ["]
2, 2 1/2
Maximum immersion depth [m]
4.50 - 15
Float switch
NO
Maximum current [A]
2.30 - 3.50
Maximum liquid temperature [°C]
40
Cable length [m]
10
Maximum particle size [mm]
7 - 60
Protection [IP]
68
Automatic thermal protection
NO
Dry run protection
NO
Speed ​​control
NO
Capacitor
NO
Pump design
vertical
Impeller material
cast iron
Construction
submersible
Grinder
NO
