GRUNDFOS MAGNA3 D PN6/10 circulator pump with flange

  • GRUNDFOS MAGNA3 D PN6/10 circulator pump with flange
    GRUNDFOS MAGNA3 D PN6/10 circulator pump with flange
  • GRUNDFOS MAGNA3 D PN6/10 circulator pump with flange
    GRUNDFOS MAGNA3 D PN6/10 circulator pump with flange

previous next
GRUNDFOS MAGNA3 D PN6/10 circulator pump with flange GRUNDFOS MAGNA3 D PN6/10 circulator pump with flange
GRUNDFOS MAGNA3 D PN6/10 circulator pump with flange

Double the performance or enjoy reduced downtime in service by having redundancy from the twin pump which operates wirelessly. The intelligence in the MAGNA3 caters for all application needs See more

Technical Specifications

Maximum flow [l/min]
116 - 1,166
Maximum head [m]
4 - 18
Input voltage [V]
230
Suction port ["]
DN32, DN40, DN50, DN65, DN80, DN100

Show all Tech Specs

on demand check availability

from 1,700.35 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Circulator pumps
Product No.:
MAS000482

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Suction port ["]
  • Power input - P1 [kW]
  • Delivery port ["]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Port-to-port length
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos MAGNA3 D 32-40F 220mm 230V PN6/10

Product No.: ZB00030212 Sale group: CEGBB EAN: 5710629850843 Manuf. No.: 98333840

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,700.35 €

Check availability

Maximum flow [l/min]
116
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
0.61
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 32-60F 220mm 230V PN6/10

Product No.: ZB00030216 Sale group: CEGBB EAN: 5710629851048 Manuf. No.: 98333860

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,988.51 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
0.91
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 32-80F 220mm 230V PN6/10

Product No.: ZB00030220 Sale group: CEGBB EAN: 5710629851246 Manuf. No.: 98333880

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,093.66 €

Check availability

Maximum flow [l/min]
150
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1.19
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 32-100F 220mm 230V PN6/10

Product No.: ZB00030207 Sale group: CEGBB EAN: 5710626495313 Manuf. No.: 97924453

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,382.49 €

Check availability

Maximum flow [l/min]
166
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1.47
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 32-120F 220mm 230V PN6/10

Product No.: ZB00002304 Sale group: CEGBB EAN: 5710626495320 Manuf. No.: 97924454

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,924.21 €

Not sellable online

Maximum flow [l/min]
300
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1.53
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-40F 220mm 230V PN6/10

Product No.: ZB00030228 Sale group: CEGBB EAN: 5710626495399 Manuf. No.: 97924461

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,119.62 €

Check availability

Maximum flow [l/min]
200
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
0.87
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-60F 220mm 230V PN6/10

Product No.: ZB00030230 Sale group: CEGBB EAN: 5710626495405 Manuf. No.: 97924462

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,305.29 €

Check availability

Maximum flow [l/min]
266
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.55
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-80F 220mm 230V PN6/10

Product No.: ZB00030232 Sale group: CEGBB EAN: 5710626495412 Manuf. No.: 97924463

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,896.92 €

Not sellable online

Maximum flow [l/min]
333
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.24
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-100F 220mm 230V PN6/10

Product No.: ZB00030222 Sale group: CEGBB EAN: 5710626495429 Manuf. No.: 97924464

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,195.07 €

Not sellable online

Maximum flow [l/min]
366
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.64
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-120F 250mm 230V PN6/10

Product No.: ZB00014745 Sale group: CEGBB EAN: 5710626495436 Manuf. No.: 97924465

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,654.93 €

Not sellable online

Maximum flow [l/min]
416
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.91
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA3 D 40-150F 250mm 230V PN6/10

Product No.: ZB00030225 Sale group: CEGBB EAN: 5710626495443 Manuf. No.: 97924466

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,332.41 €

Not sellable online

Maximum flow [l/min]
450
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2.75
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA3 D 40-180F 250mm 230V PN6/10

Product No.: ZB00002305 Sale group: CEGBB EAN: 5710626495450 Manuf. No.: 97924467

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,981.93 €

Not sellable online

Maximum flow [l/min]
450
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2.75
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA3 D 50-40F 240mm 230V PN6/10

Product No.: ZB00030241 Sale group: CEGBB EAN: 5710626495535 Manuf. No.: 97924475

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,195.07 €

Not sellable online

Maximum flow [l/min]
300
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
0.68
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA3 D 50-60F 240mm 230V PN6/10

Product No.: ZB00014746 Sale group: CEGBB EAN: 5710626495542 Manuf. No.: 97924476

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,764.07 €

Not sellable online

Maximum flow [l/min]
416
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA3 D 50-80F 240mm 230V PN6/10

Product No.: ZB00030244 Sale group: CEGBB EAN: 5710626495559 Manuf. No.: 97924477

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,142.07 €

Not sellable online

Maximum flow [l/min]
450
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1.48
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA3 D 50-100F 280mm 230V PN6/10

Product No.: ZB00030234 Sale group: CEGBB EAN: 5710626495566 Manuf. No.: 97924478

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,386.31 €

Not sellable online

Maximum flow [l/min]
500
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1.77
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA3 D 50-150F 280mm 230V PN6/10

Product No.: ZB00030237 Sale group: CEGBB EAN: 5710626495580 Manuf. No.: 97924480

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,333.32 €

Not sellable online

Maximum flow [l/min]
600
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
2.76
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA3 D 50-180F 280mm 230V PN6/10

Product No.: ZB00030239 Sale group: CEGBB EAN: 5710626495597 Manuf. No.: 97924481

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,254.37 €

Not sellable online

Maximum flow [l/min]
666
Maximum head [m]
18
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
3.42
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA3 D 65-40F 340mm 230V PN6/10

Product No.: ZB00014748 Sale group: CEGBB EAN: 5710626495672 Manuf. No.: 97924489

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,006.98 €

Not sellable online

Maximum flow [l/min]
433
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
0.95
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-60F 340mm 230V PN6/10

Product No.: ZB00002306 Sale group: CEGBB EAN: 5710626495689 Manuf. No.: 97924490

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,575.31 €

Not sellable online

Maximum flow [l/min]
583
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
1.67
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-80F 340mm 230V PN6/10

Product No.: ZB00030252 Sale group: CEGBB EAN: 5710626495696 Manuf. No.: 97924491

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,981.93 €

Not sellable online

Maximum flow [l/min]
650
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
2.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-100F 340mm 230V PN6/10

Product No.: ZB00030246 Sale group: CEGBB EAN: 5710626495702 Manuf. No.: 97924492

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,252.79 €

Not sellable online

Maximum flow [l/min]
666
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
2.77
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-120F 340mm 230V PN6/10

Product No.: ZB00002307 Sale group: CEGBB EAN: 5710626495719 Manuf. No.: 97924493

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,631.46 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
3.47
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-150F 340mm 230V PN6/10

Product No.: ZB00002308 Sale group: CEGBB EAN: 5710626495726 Manuf. No.: 97924494

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,592.44 €

Not sellable online

Maximum flow [l/min]
1,000
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
6.30
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 80-40F 360mm 230V PN6

Product No.: ZB00030258 Sale group: CEGBB EAN: 5710626495795 Manuf. No.: 97924501

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,792.27 €

Not sellable online

Maximum flow [l/min]
583
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
1.55
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-60F 360mm 230V PN6

Product No.: ZB00030261 Sale group: CEGBB EAN: 5710626495801 Manuf. No.: 97924502

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,279.41 €

Not sellable online

Maximum flow [l/min]
733
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
2.40
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-80F 360mm 230V PN6

Product No.: ZB00030264 Sale group: CEGBB EAN: 5710626495818 Manuf. No.: 97924503

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,686.03 €

Not sellable online

Maximum flow [l/min]
833
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
3.20
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-100F 360mm 230V PN6

Product No.: ZB00002309 Sale group: CEGBB EAN: 5710626495825 Manuf. No.: 97924504

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,290.31 €

Not sellable online

Maximum flow [l/min]
1,000
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
4.78
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-120F 360mm 230V PN6

Product No.: ZB00002310 Sale group: CEGBB EAN: 5710626495832 Manuf. No.: 97924505

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,059.62 €

Not sellable online

Maximum flow [l/min]
1,166
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
6.86
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-40F 360mm 230V PN10

Product No.: ZB00030256 Sale group: CEGBB EAN: 5710626495894 Manuf. No.: 97924511

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,031.85 €

Not sellable online

Maximum flow [l/min]
583
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
1.55
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-60F 360mm 230V PN10

Product No.: ZB00030259 Sale group: CEGBB EAN: 5710626495900 Manuf. No.: 97924512

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,544.28 €

Not sellable online

Maximum flow [l/min]
733
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
2.40
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-80F 360mm 230V PN10

Product No.: ZB00030262 Sale group: CEGBB EAN: 5710626495917 Manuf. No.: 97924513

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,970.20 €

Not sellable online

Maximum flow [l/min]
833
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
3.20
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-100F 360mm 230V PN10

Product No.: ZB00030253 Sale group: CEGBB EAN: 5710626495924 Manuf. No.: 97924514

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,605.09 €

Not sellable online

Maximum flow [l/min]
1,000
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
4.78
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-120F 360mm 230V PN10

Product No.: ZB00002312 Sale group: CEGBB EAN: 5710626495931 Manuf. No.: 97924515

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,412.34 €

Not sellable online

Maximum flow [l/min]
1,166
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
6.86
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 100-40F 450mm 230V PN6

Product No.: ZB00030197 Sale group: CEGBB EAN: 5710626495849 Manuf. No.: 97924506

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,631.46 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
2.41
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-60F 450mm 230V PN6

Product No.: ZB00030200 Sale group: CEGBB EAN: 5710626495856 Manuf. No.: 97924507

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,145.89 €

Not sellable online

Maximum flow [l/min]
833
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
3.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-80F 450mm 230V PN6

Product No.: ZB00030203 Sale group: CEGBB EAN: 5710626495863 Manuf. No.: 97924508

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,757.49 €

Not sellable online

Maximum flow [l/min]
1,000
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
5.08
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-100F 450mm 230V PN6

Product No.: ZB00030192 Sale group: CEGBB EAN: 5710626495870 Manuf. No.: 97924509

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,361.76 €

Not sellable online

Maximum flow [l/min]
1,083
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6.17
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 50-120F 230V PN6/10 280mm

Product No.: ZB00014618 Sale group: CEGBB EAN: 5710626495573 Manuf. No.: 97924479

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,629.88 €

Not sellable online

Maximum flow [l/min]
550
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN50
Power input - P1 [kW]
0.51
Delivery port ["]
DN50
Maximum current [A]
2.32
Maximum liquid temperature [°C]
110
Protection [IP]
X4D
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
NO
Impeller material
noryl
Construction
Glandless pumps
Port-to-port length
280

Grundfos MAGNA3 D 100-120F 450mm 230V PN6

Product No.: ZB00002311 Sale group: CEGBB EAN: 5710626495887 Manuf. No.: 97924510

on demand
check availability
Product availability
  • central warehouse 0 pcs

8,350.03 €

Not sellable online

Maximum flow [l/min]
1,166
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6.89
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-40F 450mm 230V PN10

Product No.: ZB00030195 Sale group: CEGBB EAN: 5710626495948 Manuf. No.: 97924516

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,913.63 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
2.41
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-60F 450mm 230V PN10

Product No.: ZB00030198 Sale group: CEGBB EAN: 5710626495955 Manuf. No.: 97924517

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,453.35 €

Not sellable online

Maximum flow [l/min]
833
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
3.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-80F 450mm 230V PN10

Product No.: ZB00030201 Sale group: CEGBB EAN: 5710626495962 Manuf. No.: 97924518

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,095.56 €

Not sellable online

Maximum flow [l/min]
1,000
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
5.08
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-100F 450mm 230V PN10

Product No.: ZB00030190 Sale group: CEGBB EAN: 5710626495979 Manuf. No.: 97924519

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,729.12 €

Not sellable online

Maximum flow [l/min]
1,083
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6.17
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-120F 450mm 230V PN10

Product No.: ZB00030193 Sale group: CEGBB EAN: 5710626495986 Manuf. No.: 97924520

on demand
check availability
Product availability
  • central warehouse 0 pcs

8,767.96 €

Not sellable online

Maximum flow [l/min]
1,166
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6.89
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Product description

MAGNA3 D is a highly-advanced and intelligent twin circulator pump

The MAGNA3 D canned rotor pump features two pump heads which communicate wirelessly. They can operate in alternating mode, in which one pump operates at a time, cascade mode, in which the second pump head contributes whenever it is necessary, and finally, backup mode, in which one pump is 100 % redundant.

Wirelessly-connected multi-pump functionality

The wireless multi-pump functionality of MAGNA3 D improves reliability and reduces downtime.

The clever solution

Inputs and outputs ensure better system monitoring and optimal pump regulation.

Easy monitoring

A heat energy monitor provides you with an easy overview of the heat energy consumption in the entire system.

No hassel

MAGNA3 D is quick to install and requires no maintenance.

Instructions

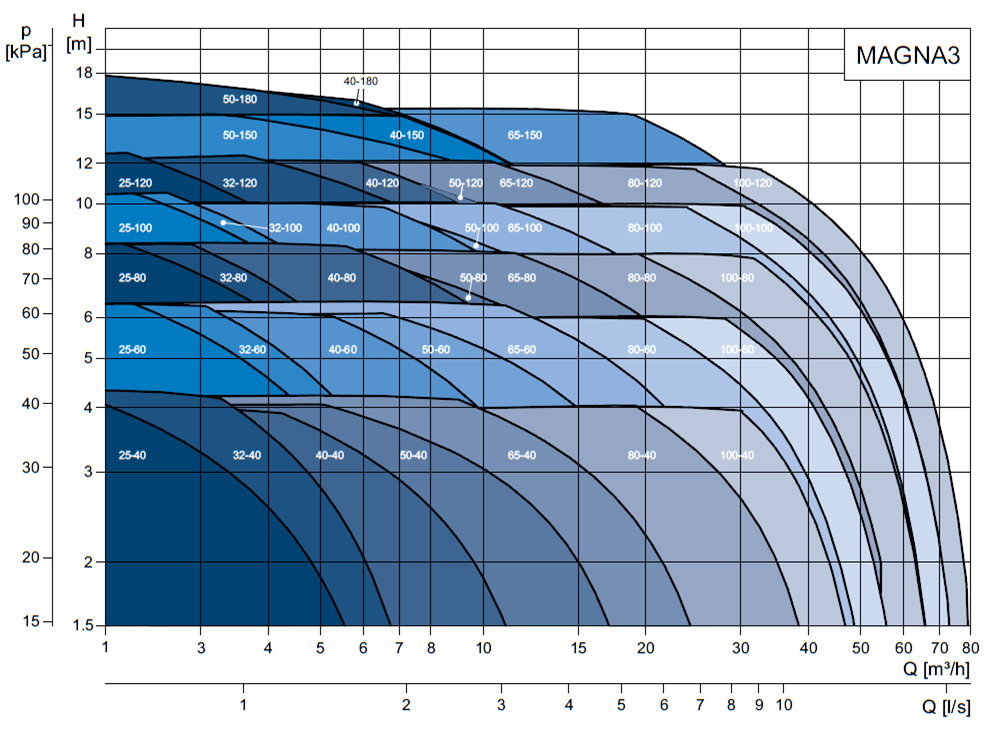

Technical Specifications

Maximum flow [l/min]
116 - 1,166
Maximum head [m]
4 - 18
Input voltage [V]
230
Suction port ["]
DN32, DN40, DN50, DN65, DN80, DN100
Power input - P1 [kW]
0.51
Delivery port ["]
DN32, DN40, DN50, DN65, DN80, DN100
Maximum current [A]
0.61 - 6.89
Maximum liquid temperature [°C]
110
Protection [IP]
X4, X4D
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated, NO
Impeller material
noryl
Construction
, Glandless pumps
Port-to-port length
220, 250, 240, 280, 340, 360, 450
