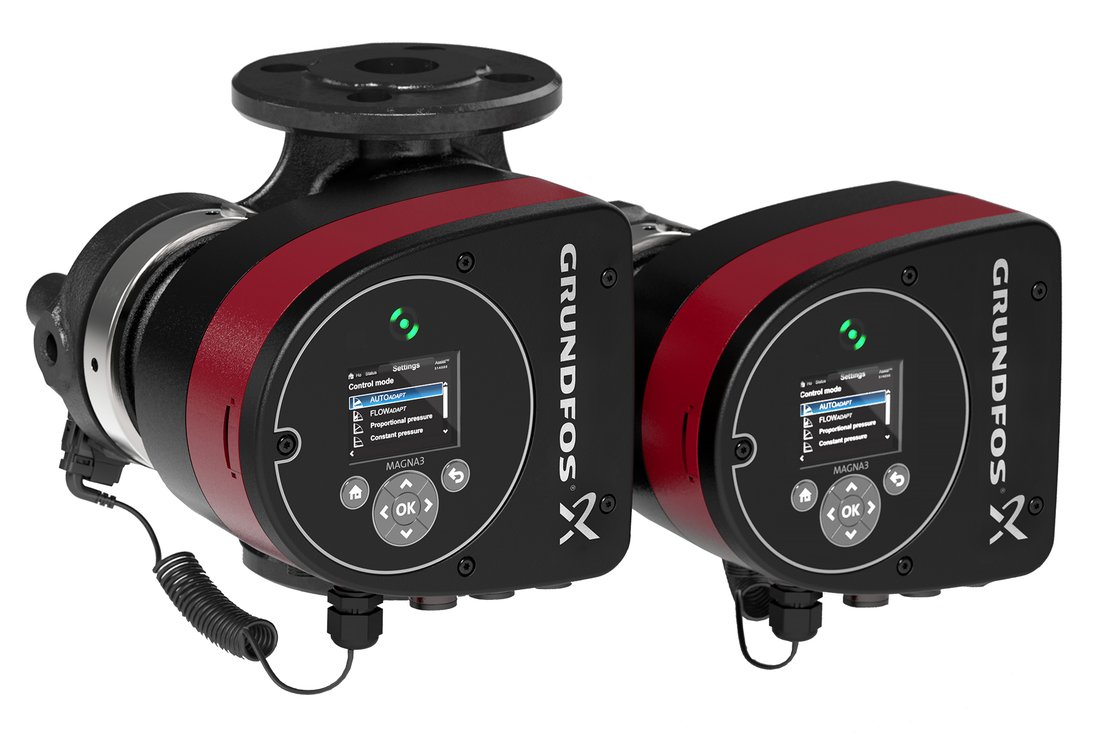

GRUNDFOS MAGNA3 D PN16 circulator pump with flange

Double the performance or enjoy reduced downtime in service by having redundancy from the twin pump which operates wirelessly. The intelligence in the MAGNA3 caters for all application needs See more

Technical Specifications

Maximum flow [l/min]
116 - 1,166
Maximum head [m]
4 - 18
Input voltage [V]
230
Suction port ["]
DN32, DN40, DN50, DN65, DN80, DN100

Show all Tech Specs

on demand check availability

from 1,815.78 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
Grundfos
Category:
Heating pumps
Product No.:
MAS000484

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Suction port ["]
  • Delivery port ["]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Port-to-port length
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos MAGNA3 D 32-40F 220mm 230V PN16

Product No.: ZB00030211 Sale group: CEGBB EAN: 5710629850829 Manuf. No.: 98333838

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,815.78 €

Check availability

Maximum flow [l/min]
116
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
0.61
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 32-60F 220mm 230V PN16

Product No.: ZB00030215 Sale group: CEGBB EAN: 5710629851024 Manuf. No.: 98333858

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,120.60 €

Check availability

Maximum flow [l/min]
133
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
0.91
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 32-80F 220mm 230V PN16

Product No.: ZB00030219 Sale group: CEGBB EAN: 5710629851222 Manuf. No.: 98333878

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,232.41 €

Check availability

Maximum flow [l/min]
150
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1.19
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 32-100F 220mm 230V PN16

Product No.: ZB00030206 Sale group: CEGBB EAN: 5710626495375 Manuf. No.: 97924459

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,541.20 €

Check availability

Maximum flow [l/min]
166
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1.47
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 32-120F 220mm 230V PN16

Product No.: ZB00030208 Sale group: CEGBB EAN: 5710626495382 Manuf. No.: 97924460

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,119.10 €

Check availability

Maximum flow [l/min]
300
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1.53
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-40F 220mm 230V PN16

Product No.: ZB00030227 Sale group: CEGBB EAN: 5710626495467 Manuf. No.: 97924468

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,262.63 €

Check availability

Maximum flow [l/min]
200
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
0.87
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-60F 220mm 230V PN16

Product No.: ZB00030229 Sale group: CEGBB EAN: 5710626495474 Manuf. No.: 97924469

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,459.59 €

Check availability

Maximum flow [l/min]
266
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.55
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-80F 220mm 230V PN16

Product No.: ZB00030231 Sale group: CEGBB EAN: 5710626495481 Manuf. No.: 97924470

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,090.64 €

Check availability

Maximum flow [l/min]
333
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.24
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-100F 220mm 230V PN16

Product No.: ZB00030221 Sale group: CEGBB EAN: 5710626495498 Manuf. No.: 97924471

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,407.40 €

Check availability

Maximum flow [l/min]
366
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.64
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA3 D 40-120F 250mm 230V PN16

Product No.: ZB00030223 Sale group: CEGBB EAN: 5710626495504 Manuf. No.: 97924472

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,898.50 €

Check availability

Maximum flow [l/min]
416
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.91
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA3 D 40-150F 250mm 230V PN16

Product No.: ZB00030224 Sale group: CEGBB EAN: 5710626495511 Manuf. No.: 97924473

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,623.23 €

Check availability

Maximum flow [l/min]
450
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2.75
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA3 D 40-180F 250mm 230V PN16

Product No.: ZB00030226 Sale group: CEGBB EAN: 5710626495528 Manuf. No.: 97924474

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,312.01 €

Check availability

Maximum flow [l/min]
450
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2.75
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA3 D 50-40F 240mm 230V PN16

Product No.: ZB00030240 Sale group: CEGBB EAN: 5710626495603 Manuf. No.: 97924482

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,407.52 €

Check availability

Maximum flow [l/min]
300
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
0.68
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA3 D 50-60F 240mm 230V PN16

Product No.: ZB00030242 Sale group: CEGBB EAN: 5710626495610 Manuf. No.: 97924483

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,016.45 €

Check availability

Maximum flow [l/min]
416
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA3 D 50-80F 240mm 230V PN16

Product No.: ZB00030243 Sale group: CEGBB EAN: 5710626495627 Manuf. No.: 97924484

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,421.08 €

Check availability

Maximum flow [l/min]
450
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1.48
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA3 D 50-100F 280mm 230V PN16

Product No.: ZB00030233 Sale group: CEGBB EAN: 5710626495634 Manuf. No.: 97924485

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,677.99 €

Check availability

Maximum flow [l/min]
500
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1.77
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA3 D 50-120F 280mm 230V PN16

Product No.: ZB00030235 Sale group: CEGBB EAN: 5710626495641 Manuf. No.: 97924486

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,937.54 €

Check availability

Maximum flow [l/min]
550
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
2.32
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA3 D 50-150F 280mm 230V PN16

Product No.: ZB00030236 Sale group: CEGBB EAN: 5710626495658 Manuf. No.: 97924487

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,688.97 €

Check availability

Maximum flow [l/min]
600
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
2.76
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA3 D 50-180F 280mm 230V PN16

Product No.: ZB00030238 Sale group: CEGBB EAN: 5710626495665 Manuf. No.: 97924488

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,668.61 €

Check availability

Maximum flow [l/min]
666
Maximum head [m]
18
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
3.42
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA3 D 65-40F 340mm 230V PN16

Product No.: ZB00030249 Sale group: CEGBB EAN: 5710626495733 Manuf. No.: 97924495

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,276.90 €

Check availability

Maximum flow [l/min]
433
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
0.95
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-60F 340mm 230V PN16

Product No.: ZB00030250 Sale group: CEGBB EAN: 5710626495740 Manuf. No.: 97924496

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,880.51 €

Check availability

Maximum flow [l/min]
583
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
1.67
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-80F 340mm 230V PN16

Product No.: ZB00030251 Sale group: CEGBB EAN: 5710626495757 Manuf. No.: 97924497

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,312.56 €

Check availability

Maximum flow [l/min]
650
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
2.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-100F 340mm 230V PN16

Product No.: ZB00030245 Sale group: CEGBB EAN: 5710626495764 Manuf. No.: 97924498

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,602.06 €

Check availability

Maximum flow [l/min]
666
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
2.77
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-120F 340mm 230V PN16

Product No.: ZB00030247 Sale group: CEGBB EAN: 5710626495771 Manuf. No.: 97924499

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,010.01 €

Check availability

Maximum flow [l/min]
750
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
3.47
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 65-150F 340mm 230V PN16

Product No.: ZB00030248 Sale group: CEGBB EAN: 5710626495788 Manuf. No.: 97924500

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,034.35 €

Check availability

Maximum flow [l/min]
1,000
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
6.30
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA3 D 80-40F 360mm 230V PN16

Product No.: ZB00030257 Sale group: CEGBB EAN: 5710626495993 Manuf. No.: 97924521

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,111.92 €

Check availability

Maximum flow [l/min]
583
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
1.55
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-60F 360mm 230V PN16

Product No.: ZB00030260 Sale group: CEGBB EAN: 5710626496006 Manuf. No.: 97924522

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,635.00 €

Check availability

Maximum flow [l/min]
733
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
2.40
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-80F 360mm 230V PN16

Product No.: ZB00030263 Sale group: CEGBB EAN: 5710626496013 Manuf. No.: 97924523

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,064.60 €

Check availability

Maximum flow [l/min]
833
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
3.20
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-100F 360mm 230V PN16

Product No.: ZB00030254 Sale group: CEGBB EAN: 5710626496020 Manuf. No.: 97924524

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,712.93 €

Check availability

Maximum flow [l/min]
1,000
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
4.78
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 80-120F 360mm 230V PN16

Product No.: ZB00030255 Sale group: CEGBB EAN: 5710626496037 Manuf. No.: 97924525

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,533.49 €

Check availability

Maximum flow [l/min]
1,166
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
6.86
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA3 D 100-40F 450mm 230V PN16

Product No.: ZB00030196 Sale group: CEGBB EAN: 5710626496044 Manuf. No.: 97924526

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,011.24 €

Check availability

Maximum flow [l/min]
750
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
2.41
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-60F 450mm 230V PN16

Product No.: ZB00030199 Sale group: CEGBB EAN: 5710626496051 Manuf. No.: 97924527

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,556.36 €

Check availability

Maximum flow [l/min]
833
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
3.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-80F 450mm 230V PN16

Product No.: ZB00030202 Sale group: CEGBB EAN: 5710626496068 Manuf. No.: 97924528

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,206.68 €

Check availability

Maximum flow [l/min]
1,000
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
5.08
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-100F 450mm 230V PN16

Product No.: ZB00030191 Sale group: CEGBB EAN: 5710626496075 Manuf. No.: 97924529

on demand
check availability
Product availability
  • central warehouse 0 pcs

7,856.20 €

Check availability

Maximum flow [l/min]
1,083
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6.17
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA3 D 100-120F 450mm 230V PN16

Product No.: ZB00030194 Sale group: CEGBB EAN: 5710626496082 Manuf. No.: 97924530

on demand
check availability
Product availability
  • central warehouse 0 pcs

8,906.36 €

Check availability

Maximum flow [l/min]
1,166
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6.89
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Product description

MAGNA3 D is a highly-advanced and intelligent twin circulator pump

The MAGNA3 D canned rotor pump features two pump heads which communicate wirelessly. They can operate in alternating mode, in which one pump operates at a time, cascade mode, in which the second pump head contributes whenever it is necessary, and finally, backup mode, in which one pump is 100 % redundant.

Wirelessly-connected multi-pump functionality

The wireless multi-pump functionality of MAGNA3 D improves reliability and reduces downtime.

The clever solution

Inputs and outputs ensure better system monitoring and optimal pump regulation.

Easy monitoring

A heat energy monitor provides you with an easy overview of the heat energy consumption in the entire system.

No hassel

MAGNA3 D is quick to install and requires no maintenance.

Instructions

Technical Specifications

Maximum flow [l/min]
116 - 1,166
Maximum head [m]
4 - 18
Input voltage [V]
230
Suction port ["]
DN32, DN40, DN50, DN65, DN80, DN100
Delivery port ["]
DN32, DN40, DN50, DN65, DN80, DN100
Maximum current [A]
0.61 - 6.89
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220, 250, 240, 280, 340, 360, 450
