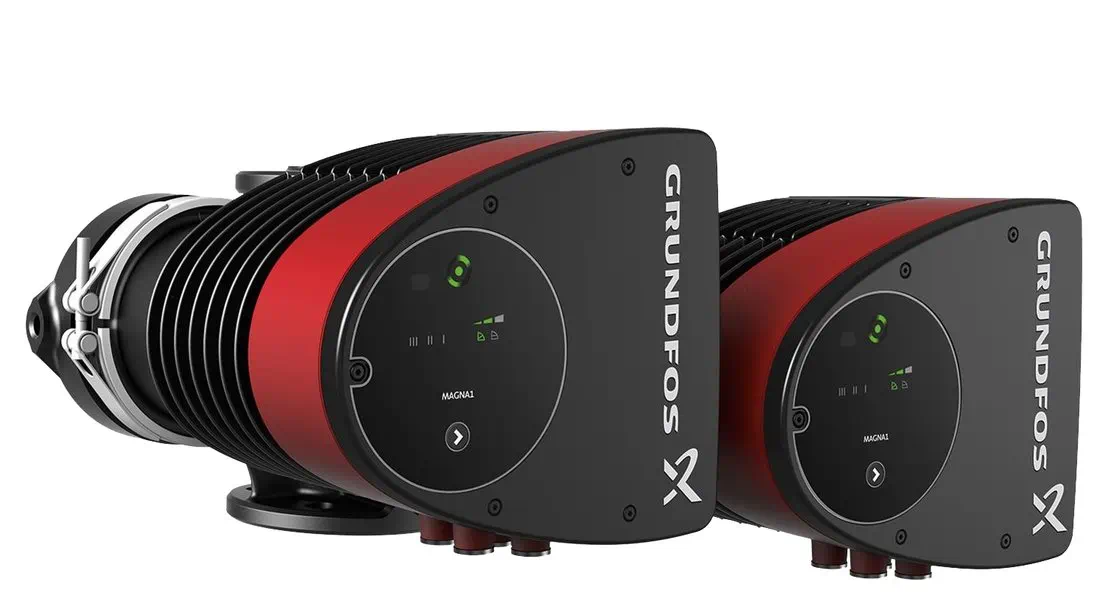

GRUNDFOS MAGNA1 D circulator pump with flange

  • GRUNDFOS MAGNA1 D circulator pump with flange
    GRUNDFOS MAGNA1 D circulator pump with flange
  • GRUNDFOS MAGNA1 D circulator pump with flange
    GRUNDFOS MAGNA1 D circulator pump with flange

previous next
GRUNDFOS MAGNA1 D circulator pump with flange GRUNDFOS MAGNA1 D circulator pump with flange
GRUNDFOS MAGNA1 D circulator pump with flange

Double the pump performance or enjoy reduced downtime in service by having redundancy from the twin pump (manual change over). The basic product which can be operated from an intuitive user interface See more

Technical Specifications

Maximum flow [l/min]
116 - 1,083
Maximum head [m]
4 - 18
Input voltage [V]
230
Suction port ["]
DN32, DN40, DN50, DN65, DN80, DN100

Show all Tech Specs

on demand check availability

from 1,376.92 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
Grundfos
Category:
Circulator pumps
Product No.:
MAS000474

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Suction port ["]
  • Delivery port ["]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Port-to-port length
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Grundfos MAGNA1 D 32-40F 220 230V PN6/10

Product No.: ZB00030098 Sale group: CEGBA EAN: 5712608942402 Manuf. No.: 99221267

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,376.92 €

Check availability

Maximum flow [l/min]
116
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
0.59
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 D 32-100F 220 230V PN6/10

Product No.: ZB00030095 Sale group: CEGBA EAN: 5712608942150 Manuf. No.: 99221242

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,949.25 €

Check availability

Maximum flow [l/min]
166
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1.41
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 D 32-120F 220 230V PN6/10

Product No.: ZB00030096 Sale group: CEGBA EAN: 5712608942594 Manuf. No.: 99221286

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,339.90 €

Not sellable online

Maximum flow [l/min]
250
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1.50
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 D 40-40F 220 230V PN6/10

Product No.: ZB00030107 Sale group: CEGBA EAN: 5712608942662 Manuf. No.: 99221293

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,716.32 €

Check availability

Maximum flow [l/min]
200
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
0.72
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 D 40-60F 220 230V PN6/10

Product No.: ZB00014752 Sale group: CEGBA EAN: 5712608942679 Manuf. No.: 99221294

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,885.36 €

Check availability

Maximum flow [l/min]
266
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.56
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 D 40-80F 220 230V PN6/10

Product No.: ZB00030108 Sale group: CEGBA EAN: 5712608942815 Manuf. No.: 99221308

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,317.94 €

Not sellable online

Maximum flow [l/min]
300
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.25
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 D 40-100F 220 230V PN6/10

Product No.: ZB00030103 Sale group: CEGBA EAN: 5712608942822 Manuf. No.: 99221309

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,556.85 €

Not sellable online

Maximum flow [l/min]
333
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
1.70
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 D 40-120F 250 230V PN6/10

Product No.: ZB00030104 Sale group: CEGBA EAN: 5712608942839 Manuf. No.: 99221310

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,924.87 €

Not sellable online

Maximum flow [l/min]
366
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2.10
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA1 D 40-150F 250 230V PN6/10

Product No.: ZB00030105 Sale group: CEGBA EAN: 5712608942846 Manuf. No.: 99221311

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,467.26 €

Not sellable online

Maximum flow [l/min]
416
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2.77
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA1 D 40-180F 250 230V PN6/10

Product No.: ZB00030106 Sale group: CEGBA EAN: 5712608942853 Manuf. No.: 99221312

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,986.35 €

Not sellable online

Maximum flow [l/min]
416
Maximum head [m]
18
Input voltage [V]
230
Suction port ["]
DN40
Delivery port ["]
DN40
Maximum current [A]
2.75
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
250

Grundfos MAGNA1 D 50-40F 240 230V PN6/10

Product No.: ZB00030113 Sale group: CEGBA EAN: 5712609116277 Manuf. No.: 99230357

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,556.85 €

Not sellable online

Maximum flow [l/min]
300
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
0.65
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA1 D 50-60F 240 230V PN6/10

Product No.: ZB00002366 Sale group: CEGBA EAN: 5712608943126 Manuf. No.: 99221339

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,012.05 €

Not sellable online

Maximum flow [l/min]
366
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA1 D 50-80F 240 230V PN6/10

Product No.: ZB00002367 Sale group: CEGBA EAN: 5712608943133 Manuf. No.: 99221340

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,314.86 €

Not sellable online

Maximum flow [l/min]
416
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1.48
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
240

Grundfos MAGNA1 D 50-100F 280 230V PN6/10

Product No.: ZB00030109 Sale group: CEGBA EAN: 5712608943140 Manuf. No.: 99221341

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,510.51 €

Not sellable online

Maximum flow [l/min]
433
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
1.93
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA1 D 50-120F 280 230V PN6/10

Product No.: ZB00030110 Sale group: CEGBA EAN: 5712608943157 Manuf. No.: 99221342

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,704.84 €

Not sellable online

Maximum flow [l/min]
500
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
2.37
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA1 D 50-150F 280 230V PN6/10

Product No.: ZB00030111 Sale group: CEGBA EAN: 5712608943164 Manuf. No.: 99221343

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,268.52 €

Not sellable online

Maximum flow [l/min]
533
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
2.88
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA1 D 50-180F 280 230V PN6/10

Product No.: ZB00030112 Sale group: CEGBA EAN: 5712608943171 Manuf. No.: 99221345

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,005.23 €

Not sellable online

Maximum flow [l/min]
583
Maximum head [m]
18
Input voltage [V]
230
Suction port ["]
DN50
Delivery port ["]
DN50
Maximum current [A]
3.46
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
280

Grundfos MAGNA1 D 65-40F 340 230V PN6/10

Product No.: ZB00002368 Sale group: CEGBA EAN: 5712608943485 Manuf. No.: 99221376

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,206.38 €

Not sellable online

Maximum flow [l/min]
433
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
0.89
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 D 65-60F 340 230V PN6/10

Product No.: ZB00030117 Sale group: CEGBA EAN: 5712608943492 Manuf. No.: 99221377

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,661.58 €

Not sellable online

Maximum flow [l/min]
550
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
1.63
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 D 65-80F 340 230V PN6/10

Product No.: ZB00030118 Sale group: CEGBA EAN: 5712608943508 Manuf. No.: 99221378

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,986.35 €

Not sellable online

Maximum flow [l/min]
583
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
2.10
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 D 65-100F 340 230V PN6/10

Product No.: ZB00030114 Sale group: CEGBA EAN: 5712608943515 Manuf. No.: 99221379

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,203.30 €

Not sellable online

Maximum flow [l/min]
666
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
2.71
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 D 65-120F 340 230V PN6/10

Product No.: ZB00030115 Sale group: CEGBA EAN: 5712608943522 Manuf. No.: 99221380

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,506.77 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
3.39
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 D 65-150F 340 230V PN6/10

Product No.: ZB00030116 Sale group: CEGBA EAN: 5712608943539 Manuf. No.: 99221381

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,197.56 €

Not sellable online

Maximum flow [l/min]
833
Maximum head [m]
15
Input voltage [V]
230
Suction port ["]
DN65
Delivery port ["]
DN65
Maximum current [A]
5.62
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
340

Grundfos MAGNA1 D 80-40F 360 230V PN6

Product No.: ZB00030124 Sale group: CEGBA EAN: 5712609117335 Manuf. No.: 99230392

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,835.28 €

Not sellable online

Maximum flow [l/min]
583
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
1.49
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 80-60F 360 230V PN6

Product No.: ZB00030126 Sale group: CEGBA EAN: 5712608943867 Manuf. No.: 99221414

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,225.26 €

Not sellable online

Maximum flow [l/min]
666
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
2.38
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 80-80F 360 230V PN6

Product No.: ZB00030128 Sale group: CEGBA EAN: 5712608943874 Manuf. No.: 99221415

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,550.02 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
3.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 80-100F 360 230V PN6

Product No.: ZB00030120 Sale group: CEGBA EAN: 5712608943881 Manuf. No.: 99221416

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,959.31 €

Not sellable online

Maximum flow [l/min]
850
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
4.41
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 80-120F 360 230V PN6

Product No.: ZB00030122 Sale group: CEGBA EAN: 5712608943898 Manuf. No.: 99221417

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,566.24 €

Not sellable online

Maximum flow [l/min]
916
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
5.54
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 100-40F 450 230V PN6

Product No.: ZB00030090 Sale group: CEGBA EAN: 5712608944208 Manuf. No.: 99221448

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,506.77 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
2.30
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 D 100-60F 450 230V PN6

Product No.: ZB00030092 Sale group: CEGBA EAN: 5712608944215 Manuf. No.: 99221449

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,918.05 €

Not sellable online

Maximum flow [l/min]
833
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
3.11
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 D 100-80F 450 230V PN6

Product No.: ZB00014753 Sale group: CEGBA EAN: 5712608944222 Manuf. No.: 99221450

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,327.33 €

Not sellable online

Maximum flow [l/min]
1,000
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
4.70
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 D 100-100F 450 230V PN6

Product No.: ZB00030086 Sale group: CEGBA EAN: 5712608944239 Manuf. No.: 99221451

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,803.83 €

Not sellable online

Maximum flow [l/min]
1,083
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6.23
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 D 100-120F 450 230V PN6

Product No.: ZB00030088 Sale group: CEGBA EAN: 5712608944246 Manuf. No.: 99221452

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,583.79 €

Not sellable online

Maximum flow [l/min]
1,083
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6.71
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 D 80-40F 360 230V PN10

Product No.: ZB00030123 Sale group: CEGBA EAN: 5712609118257 Manuf. No.: 99230413

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,026.94 €

Not sellable online

Maximum flow [l/min]
583
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
1.49
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 80-60F 360 230V PN10

Product No.: ZB00030125 Sale group: CEGBA EAN: 5712608943904 Manuf. No.: 99221418

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,436.22 €

Not sellable online

Maximum flow [l/min]
666
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
2.38
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 80-80F 360 230V PN10

Product No.: ZB00030127 Sale group: CEGBA EAN: 5712608943911 Manuf. No.: 99221419

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,777.62 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
3.15
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 80-100F 360 230V PN10

Product No.: ZB00030119 Sale group: CEGBA EAN: 5712608943928 Manuf. No.: 99221420

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,207.54 €

Not sellable online

Maximum flow [l/min]
850
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
4.41
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 80-120F 360 230V PN10

Product No.: ZB00030121 Sale group: CEGBA EAN: 5712608943935 Manuf. No.: 99221421

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,844.42 €

Not sellable online

Maximum flow [l/min]
916
Maximum head [m]
12
Input voltage [V]
230
Suction port ["]
DN80
Delivery port ["]
DN80
Maximum current [A]
5.54
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
360

Grundfos MAGNA1 D 100-40F 450 230V PN10

Product No.: ZB00030089 Sale group: CEGBA EAN: 5712608944253 Manuf. No.: 99221453

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,731.71 €

Not sellable online

Maximum flow [l/min]
750
Maximum head [m]
4
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
2.30
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 D 100-60F 450 230V PN10

Product No.: ZB00030091 Sale group: CEGBA EAN: 5712608944260 Manuf. No.: 99221454

on demand
check availability
Product availability
  • central warehouse 0 pcs

5,164.28 €

Not sellable online

Maximum flow [l/min]
833
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
3.11
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 D 32-80F 220 230V PN6/10

Product No.: ZB00030102 Sale group: CEGBA EAN: 5712608942525 Manuf. No.: 99221279

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,695.03 €

Check availability

Maximum flow [l/min]
158
Maximum head [m]
8
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
1.22
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Grundfos MAGNA1 D 100-100F 450 230V PN10

Product No.: ZB00030085 Sale group: CEGBA EAN: 5712608944284 Manuf. No.: 99221456

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,094.65 €

Not sellable online

Maximum flow [l/min]
1,083
Maximum head [m]
10
Input voltage [V]
230
Suction port ["]
DN100
Delivery port ["]
DN100
Maximum current [A]
6.23
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
450

Grundfos MAGNA1 D 32-60F 220 230V PN6/10

Product No.: ZB00030100 Sale group: CEGBA EAN: 5712608942464 Manuf. No.: 99221273

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,609.84 €

Check availability

Maximum flow [l/min]
141
Maximum head [m]
6
Input voltage [V]
230
Suction port ["]
DN32
Delivery port ["]
DN32
Maximum current [A]
0.90
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220

Product description

MAGNA1 D is a twin head circulator pump designed for simpler jobs

The MAGNA1 D circulator pump is characterised by its two pump heads which share the same pump housing. The pump heads are connected wirelessly, and one acts as a redundant back-up to the other. So, if one becomes unavailable, the other will take over – providing you with peace-of-mind and guaranteeing you a continuous supply. MAGNA1 D also offers a fault relay output and a digital start/stop input, enabling integration with simple building management systems.

Wireless twin pump functionality

MAGNA1 D offers wireless, alternating twin pump functionality for redundancy and maximum uptime.

Double the reliability

One pump head is redundant and takes over if the other becomes unavailable.

Double the power

Both MAGNA1 D pump heads can handle the full flow individually, ensuring a security of supply.

Double the potential

The pump heads communicate wirelessly and can reach flow levels of up to 70m3/h.

Instructions

Technical Specifications

Maximum flow [l/min]
116 - 1,083
Maximum head [m]
4 - 18
Input voltage [V]
230
Suction port ["]
DN32, DN40, DN50, DN65, DN80, DN100
Delivery port ["]
DN32, DN40, DN50, DN65, DN80, DN100
Maximum current [A]
0.59 - 6.71
Maximum liquid temperature [°C]
110
Protection [IP]
X4
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
noryl
Port-to-port length
220, 250, 240, 280, 340, 360, 450
