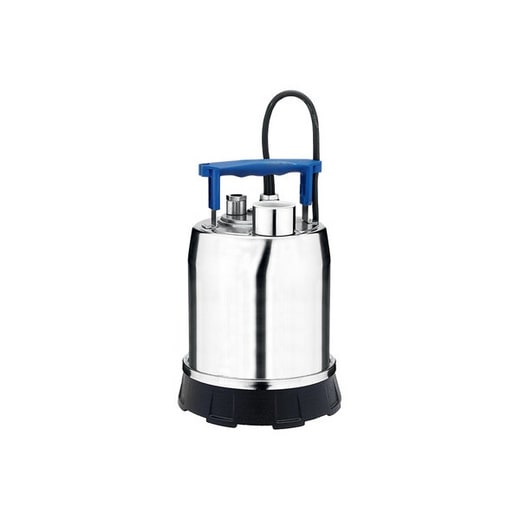

• Ebara BEST ONE VOX M 230V submersible pump without float switch, 5 m cable
    Ebara BEST ONE VOX M 230V submersible pump without float switch, 5 m cable

Stainless steel

previous next
Ebara BEST ONE VOX M 230V submersible pump without float switch, 5 m cable

Ebara BEST ONE VOX M 230V submersible pump without float switch, 5 m cable

AISI 304 stainless steel submersible pump with mechanical seal made of Ceramic/Carbon/NBR and oversized oil chamber. Possibility of fixed or mobile installation and suitable for domestic applications and large industrial drainage installations. See more

Technical Specifications

Maximum flow [l/min]
170
Maximum head [m]
6.50
Input voltage [V]
230
Power output - P2 [kW]
0.25

Show all Tech Specs

on demand check availability

313.59 € VAT included

On demand

Delivery accross EU within 3-7 business days %

Brand:
EBARA
Category:
Wastewater pumps
Product No.:
ZB00014460
Sale group:
CEEB
Manuf. No.:
1741000000

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Extended warranty
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Ebara BEST ONE M 230V submersible pump without float, 5m cable

Product No.: ZB00014458 Sale group: CEEB Manuf. No.: 1711000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

285.91 €

Check availability

Maximum flow [l/min]
170
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
2
Drinking water certificate
Float switch
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Ebara BEST ONE M 230V submersible pump without float, 10m cable

Product No.: ZB00002011 Sale group: CEEB Manuf. No.: 1711001400

on demand
check availability
Product availability
  • central warehouse 0 pcs

322.62 €

Check availability

Maximum flow [l/min]
170
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Drinking water certificate
Float switch
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
50
Cable length [m]
10
Maximum particle size [mm]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Ebara BEST ONE MA 230V submersible pump with float, 5m cable

Product No.: ZB00014459 Sale group: CEEB Manuf. No.: 1711100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

289.39 €

Check availability

Maximum flow [l/min]
170
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
2
Drinking water certificate
Float switch
YES
Maximum current [A]
2.30
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Ebara BEST ONE MA 230V submersible pump with float, 10m cable

Product No.: ZB00002012 Sale group: CEEB Manuf. No.: 1711101400

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

335.08 €

Maximum flow [l/min]
170
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Drinking water certificate
Float switch
YES
Maximum current [A]
2.30
Maximum liquid temperature [°C]
50
Cable length [m]
10
Maximum particle size [mm]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Ebara BEST ONE VOX M 230V submersible pump without float switch, 5 m cable

Product No.: ZB00014460 Sale group: CEEB Manuf. No.: 1741000000

on demand
check availability
Product availability
  • central warehouse 0 pcs

313.59 €

Check availability

Maximum flow [l/min]
170
Maximum head [m]
6.50
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
2
Drinking water certificate
Float switch
NO
Maximum current [A]
2.20
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO
You are viewing this variant

Ebara BEST ONE VOX M 230V submersible pump without float switch, 10 m cable

Product No.: ZB00027032 Sale group: CEEB Manuf. No.: 1741001400

on demand
check availability
Product availability
  • central warehouse 0 pcs

355.14 €

Check availability

Maximum flow [l/min]
170
Maximum head [m]
6.50
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Drinking water certificate
Float switch
NO
Maximum current [A]
2.20
Maximum liquid temperature [°C]
50
Cable length [m]
10
Maximum particle size [mm]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Ebara BEST ONE VOX MA 230V submersible pump with float switch, 5m cable

Product No.: ZB00027033 Sale group: CEEB Manuf. No.: 1741100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

319.83 €

Check availability

Maximum flow [l/min]
170
Maximum head [m]
6.50
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
2
Drinking water certificate
Float switch
YES
Maximum current [A]
2.20
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Ebara BEST ONE VOX MA 230V submersible pump with float, 10m cable

Product No.: ZB00002013 Sale group: CEEB Manuf. No.: 1741101400

on demand
check availability
Product availability
  • central warehouse 0 pcs

364.82 €

Check availability

Maximum flow [l/min]
170
Maximum head [m]
6.50
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
5
Drinking water certificate
Float switch
YES
Maximum current [A]
2.20
Maximum liquid temperature [°C]
50
Cable length [m]
10
Maximum particle size [mm]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Ebara BEST ONE MS 230V submersible pump with magnetic switch, 5m cable

Product No.: ZB00014461 Sale group: CEEB Manuf. No.: 1712100000

on demand
check availability
Product availability
  • central warehouse 0 pcs

323.31 €

Check availability

Maximum flow [l/min]
170
Maximum head [m]
9
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
2
Drinking water certificate
Float switch
YES
Maximum current [A]
2.30
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
10
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Product description

AISI 304 stainless steel submersible pump with mechanical seal in Ceramic/Carbon/NBR and oversized oil chamber that increase the life and reliability.
BEST ONE has a semi-open impeller, while BEST ONE VOX is equipped with vortex type impeller, to ensure a greater free passage and reduce the possibility of clogging.
The electric pumps offer great versatility of installation (fixed or mobile) due to the possibility of choosing between the vertical magnetic float switch (of reduced size) or the float switch.
These solutions also allow you to choose the best pump insertion option according to the space available.
For further technical information see the Databook

  • Emptying of basements, garages, cellars or rooms subject to flooding
  • Emptying of tanks and reservoirs
  • Supply of garden fountains

Instructions

Technical Specifications

Maximum flow [l/min]
170
Maximum head [m]
6.50
Input voltage [V]
230
Power output - P2 [kW]
0.25
Extended warranty
Delivery port ["]
5/4
Maximum immersion depth [m]
2
Drinking water certificate
Float switch
NO
Maximum current [A]
2.20
Maximum liquid temperature [°C]
50
Cable length [m]
5
Maximum particle size [mm]
20
Protection [IP]
68
Automatic thermal protection
YES
Dry run protection
NO
Off switch
Speed ​​control
NO
Capacitor
integrated
Impeller material
stainless steel
Construction
submersible
Grinder
NO

Product Safety Information

Company responsible for product safety:
Ebara Pumps Europe S.p.A.
Via Torri di Confine, 2/1/int.C, 36053 Gambellara VI, IT
e-mail: [email protected]
