Calpeda TPM peripheral pumps 230V

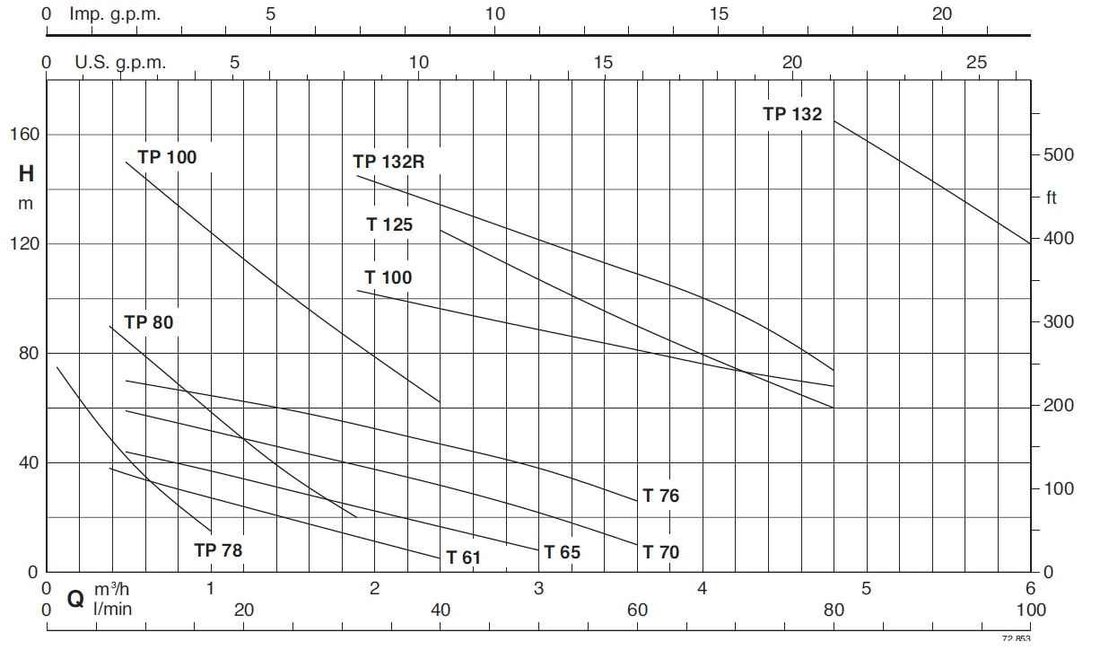

Peripheral Pumps FLOW  0.06 / 6 mc/h HEAD 5 / 165 m POWER 0.33 / 7.5 kW   See more

Technical Specifications

Maximum flow [l/min]
16 - 31.50
Maximum head [m]
75 - 90
Input voltage [V]
230
Power output - P2 [kW]
0.37 - 0.75

Show all Tech Specs

on demand check availability

from 383.92 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001302

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

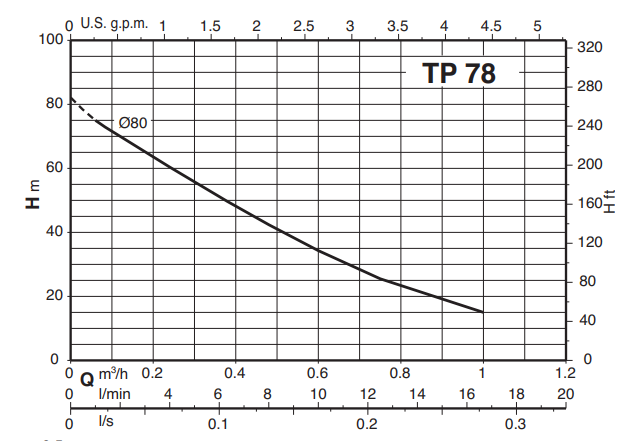

Calpeda TPM 78/A 230V 0,37kW 2900rpm

Product No.: ZB00001456 Sale group: CECP EAN: 8030485009870 Manuf. No.: 70120060000

on demand
check availability
Product availability
  • central warehouse 0 pcs

383.92 €

Check availability

Maximum flow [l/min]
16
Maximum head [m]
75
Input voltage [V]
230
Power output - P2 [kW]
0.37
Suction port ["]
1/2
Delivery port ["]
1/2
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
1.30
Maximum liquid temperature [°C]
90
Protection [IP]
55
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

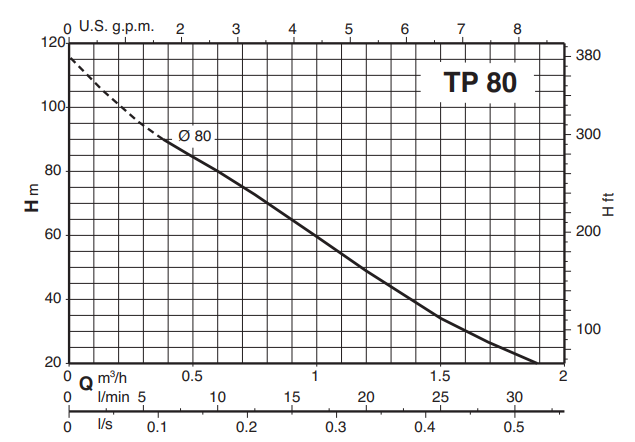

Calpeda TPM 80E 230V 0,75kW 2900rpm IE2

Product No.: ZB00014012 Sale group: CECP Manuf. No.: 70100072000

on demand
check availability
Product availability
  • central warehouse 0 pcs

647.12 €

Check availability

Maximum flow [l/min]
31.50
Maximum head [m]
90
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
3/4
Delivery port ["]
3/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
5.80
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Product description

Construction

Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.

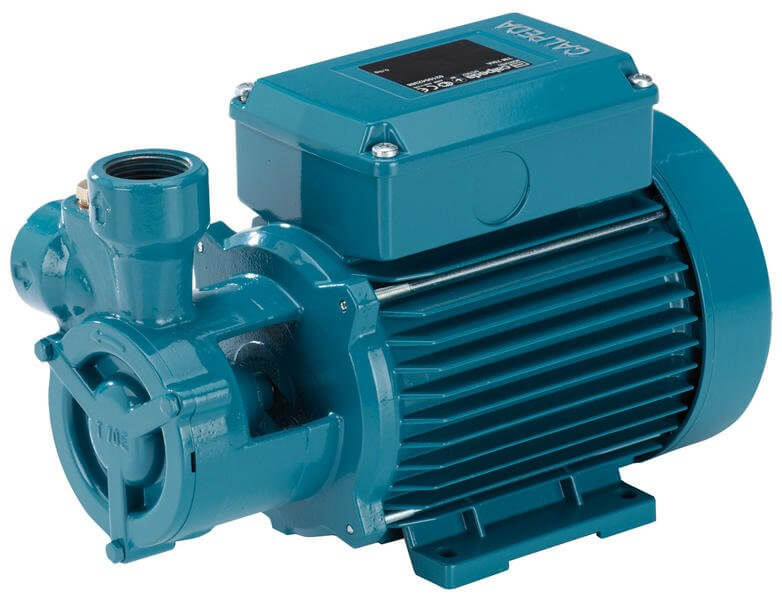

T, TP: version with pump casing and lanter bracket in cast iron.

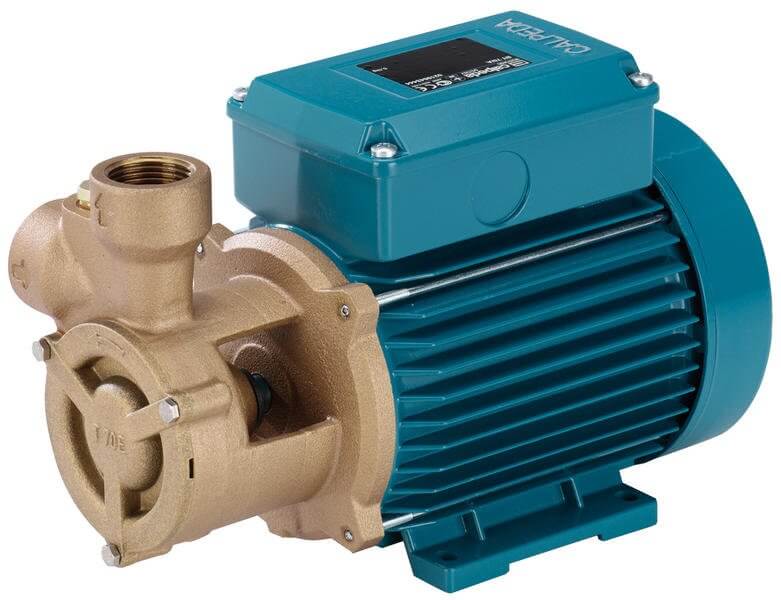

B-T, B-TP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

- For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
- For increasing network pressure (follow local specifications).
- For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation, boiler feed.

Instructions

Technical Specifications

Maximum flow [l/min]
16 - 31.50
Maximum head [m]
75 - 90
Input voltage [V]
230
Power output - P2 [kW]
0.37 - 0.75
Suction port ["]
1/2, 3/4
Delivery port ["]
1/2, 3/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
1.30 - 5.80
Maximum liquid temperature [°C]
90
Protection [IP]
55
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO, integrated
Pump design
horizontal
Impeller material
brass
Construction
monoblock
