Calpeda T, TP peripheral pumps 3x400V

Calpeda T, TP peripheral pumps 3x400V

Peripheral Pumps FLOW  0.06 / 6 mc/h HEAD 5 / 165 m POWER 0.33 / 7.5 kW   See more

Technical Specifications

Maximum flow [l/min]
16 - 100
Maximum head [m]
7 - 165
Input voltage [V]
3x400
Power output - P2 [kW]
0.33 - 7.50

Show all Tech Specs

from 198.83 VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS000246

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda T 61/A 0,33kW 230/400V 2900rpm

Product No.: ZB00001493 Sale group: CECK EAN: 8030485651451 Manuf. No.: 70020022000

198.83 €

Maximum flow [l/min]
40
Maximum head [m]
38
Input voltage [V]
3x400
Power output - P2 [kW]
0.33
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
1.10
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda T 65E 0,45kW 230/400V 2900rpm

Product No.: ZB00001494 Sale group: CECK EAN: 8030485009689 Manuf. No.: 70020030000

323.94 €

Maximum flow [l/min]
50
Maximum head [m]
44
Input voltage [V]
3x400
Power output - P2 [kW]
0.45
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
1.60
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda T 70/B 0,75kW 230/400V 2900rpm

Product No.: ZB00001495 Sale group: CECK EAN: 8030485896791 Manuf. No.: 70020041000

372.96 €

Maximum flow [l/min]
60
Maximum head [m]
59
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2.20
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda T 76A 230/400V 1,1kW 2900rpm

Product No.: ZB00001564 Sale group: CECP EAN: 8030485895909 Manuf. No.: 70000052000

589.27 €

Maximum flow [l/min]
60
Maximum head [m]
70
Input voltage [V]
3x400
Power output - P2 [kW]
1.10
Suction port ["]
5/4
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
3
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda T 100/A 3,0kW 230/400V 2900rpm

Product No.: ZB00001501 Sale group: CECK EAN: 8030485638308 Manuf. No.: 70000102000

1,047.09 €

Maximum flow [l/min]
80
Maximum head [m]
103
Input voltage [V]
3x400
Power output - P2 [kW]
3
Suction port ["]
5/4
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
6.60
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda TP 78/A 0,37kW 230/400V 2900rpm

Product No.: ZB00014107 Sale group: CECK EAN: 8030485009719 Manuf. No.: 70020060000

383.92 €

Maximum flow [l/min]
16
Maximum head [m]
7
Input voltage [V]
3x400
Power output - P2 [kW]
0.37
Suction port ["]
1/2
Delivery port ["]
1/2
Maximum current [A]
2.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda TP 80E 230/400V 0,75kW 2900rpm

Product No.: ZB00001503 Sale group: CECP EAN: 8030485009726 Manuf. No.: 70000071000

579.61 €

Maximum flow [l/min]
31.50
Maximum head [m]
90
Input voltage [V]
3x400
Power output - P2 [kW]
0.75
Suction port ["]
3/4
Delivery port ["]
3/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda TP 100/B 230/400V 2,2kW 2900rpm

Product No.: ZB00001502 Sale group: CECP EAN: 8030485909224 Manuf. No.: 70000083000

882.30 €

Maximum flow [l/min]
40
Maximum head [m]
150
Input voltage [V]
3x400
Power output - P2 [kW]
2.20
Suction port ["]
3/4
Delivery port ["]
3/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
5.50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda TP 132R/A 5,5kW 400V 2900rpm

Product No.: ZB00001598 Sale group: CECK EAN: 8030485582458 Manuf. No.: 70000152000

2,217.21 €

Maximum flow [l/min]
80
Maximum head [m]
145
Input voltage [V]
3x400
Power output - P2 [kW]
5.50
Suction port ["]
5/4
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
10.90
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Calpeda TP 132/A 7,5kW 400/690V 2900rpm

Product No.: ZB00014109 Sale group: CECK EAN: 8030485587903 Manuf. No.: 70000172000

2,339.14 €

Maximum flow [l/min]
100
Maximum head [m]
165
Input voltage [V]
3x400
Power output - P2 [kW]
7.50
Suction port ["]
5/4
Delivery port ["]
5/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
14.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock

Product description

Construction

Close-coupled peripheral pumps (regenerative pumps) with turbine impeller.

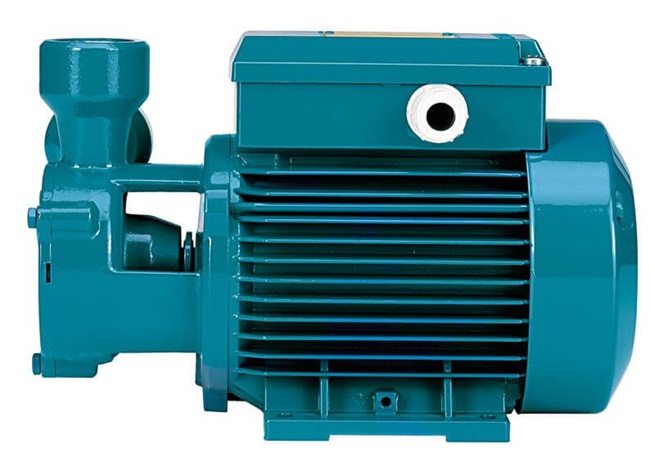

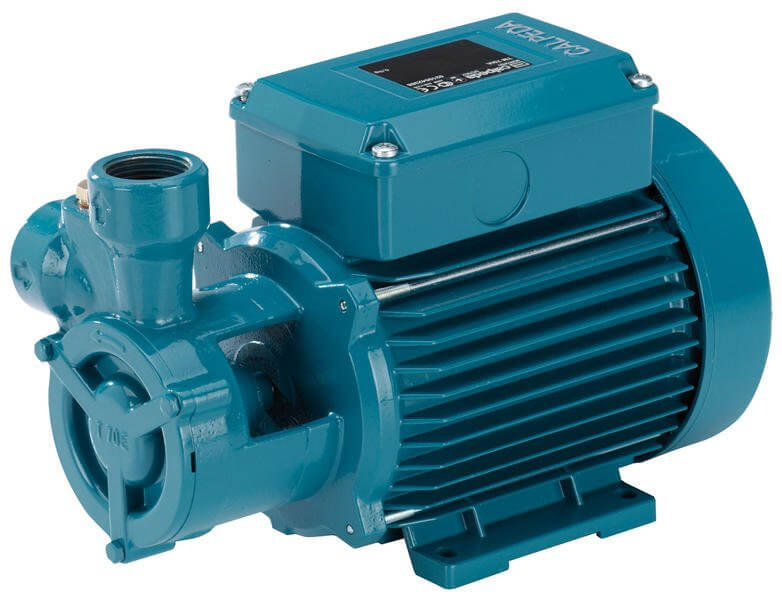

T, TP: version with pump casing and lanter bracket in cast iron.

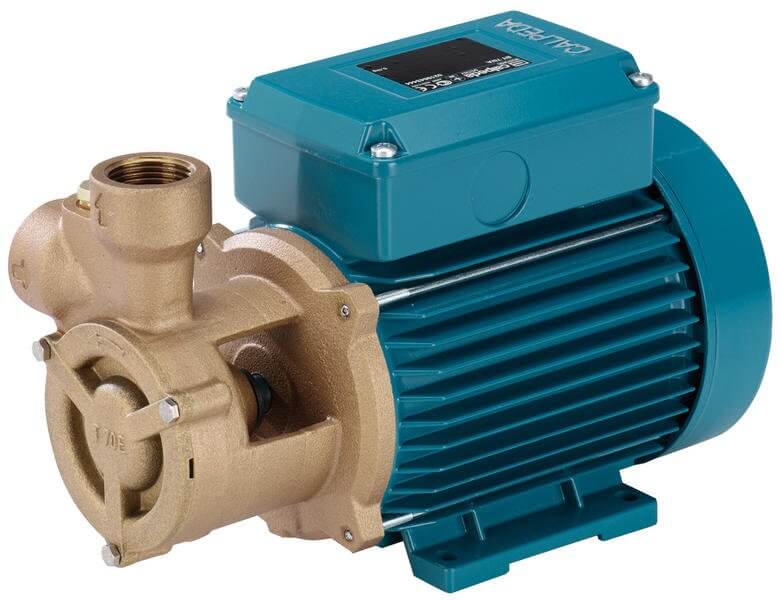

B-T, B-TP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).

Applications

- For clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials.
- For increasing network pressure (follow local specifications).
- For the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation, boiler feed.

Technical Specifications

Maximum flow [l/min]
16 - 100
Maximum head [m]
7 - 165
Input voltage [V]
3x400
Power output - P2 [kW]
0.33 - 7.50
Suction port ["]
1, 5/4, 1/2, 3/4
Delivery port ["]
1, 5/4, 1/2, 3/4
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
1.10 - 14.30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
brass
Construction
monoblock
