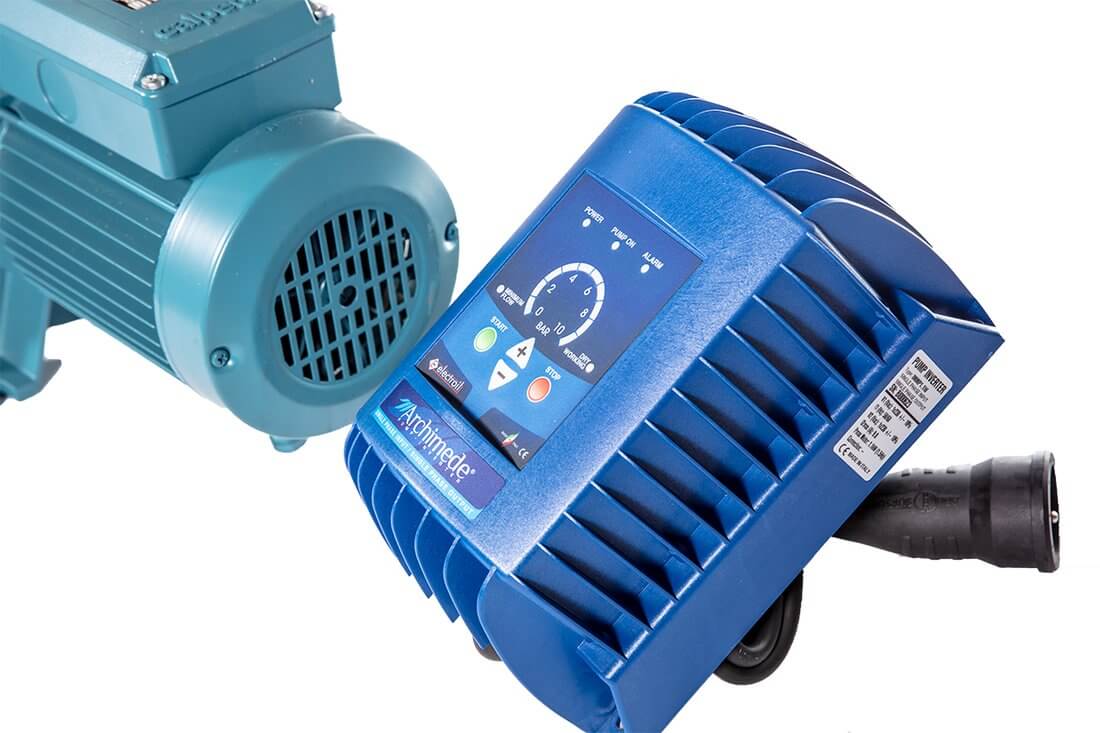

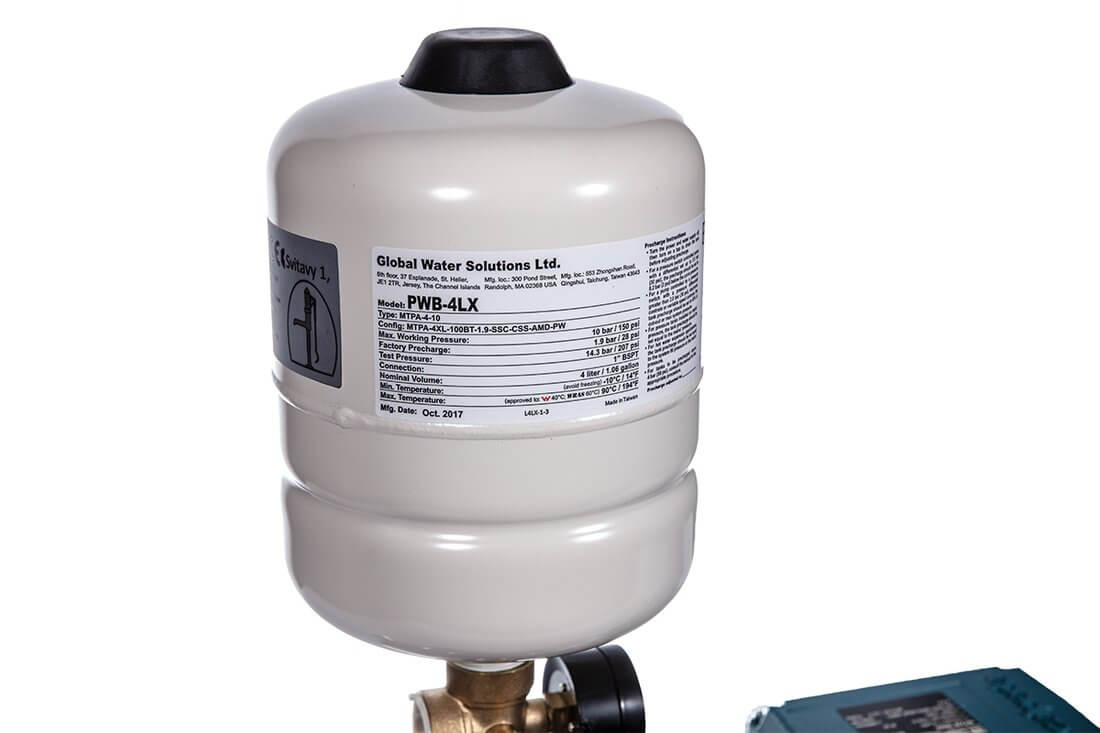

Calpeda pressure booster pump with frequency converter ARCHIMEDE and GWS pressure vessel

Calpeda pressure booster pump with frequency converter ARCHIMEDE and GWS pressure vessel

Technical Specifications

Maximum flow [l/min]
83.30 - 133.30
Maximum head [m]
55.50 - 56
Input voltage [V]
230
Power output - P2 [kW]
0.75 - 1.10

Show all Tech Specs

on demand check availability

from 1,062.00 VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
CALPEDA
Category:
Pressure booster pumps with frequency convertor
Product No.:
MAS000267

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Vessel volume [l]
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Maximum flow [l/min]
83.30
Maximum head [m]
55.50
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
5/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
4
Maximum current [A]
5.40
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
stainless steel
Construction
with frequency converter
Maximum flow [l/min]
133.30
Maximum head [m]
56
Input voltage [V]
230
Power output - P2 [kW]
1.10
Suction port ["]
5/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
4
Maximum current [A]
7
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
stainless steel
Construction
with frequency converter

Technical Specifications

Maximum flow [l/min]
83.30 - 133.30
Maximum head [m]
55.50 - 56
Input voltage [V]
230
Power output - P2 [kW]
0.75 - 1.10
Suction port ["]
5/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Vessel volume [l]
4
Maximum current [A]
5.40 - 7
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
YES
Off switch
NO
Speed ​​control
YES
Capacitor
integrated
Impeller material
stainless steel
Construction
with frequency converter
