Calpeda NMP self-priming centrifugal pumps with built-in strainer
Calpeda NMP self-priming centrifugal pumps with built-in strainer
Calpeda NMP self-priming centrifugal pumps with built-in strainer
Technical Specifications
- Maximum flow [l/min]
- 250 - 2,000
- Maximum head [m]
- 12 - 26.20
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 0.75 - 7.50
from 924.56 € VAT included
- Brand:
- CALPEDA
- Category:
- Swimming pool pumps
- Product No.:
- MAS000242
Product variants
-
- Calpeda NMP 32/12DE 230/400V 0,75kW 2900rpm
- ZB00025878
- 250
- 18
- 3x400
- 0.75
- 2
- 2
- 7
- NO
- 2.30
- 60
- X4
- NO
- NO
- NO
- NO
- NO
- horizontal
- brass
- self priming
-
Product availability
- central warehouse 0 pcs
- 924.56 €
- Not sellable online
-
- Calpeda NMP 32/12A/A 230/400V 1,1kW 2900rpm
- ZB00025877
- 250
- 22
- 3x400
- 1.10
- 2
- 2
- 7
- NO
- 2.70
- 60
- X4
- NO
- NO
- NO
- NO
- NO
- horizontal
- brass
- self priming
-
Product availability
- central warehouse 0 pcs
- 939.81 €
- Not sellable online
-
- Calpeda NMP 32/12S/A 230/400V 1,5kW 2900rpm
- ZB00001594
- 400
- 23
- 3x400
- 1.50
- 2
- 2
- 7
- NO
- 4.30
- 60
- X4
- NO
- NO
- NO
- NO
- NO
- horizontal
- brass
- self priming
-
Product availability
- central warehouse 0 pcs
- 975.74 €
- Not sellable online
-
- Calpeda NMP 50/12G/A 230/400V 1,5kW 2900rpm
- ZB00014033
- 1,000
- 12
- 3x400
- 1.50
- 2 1/2
- 2 1/2
- 7
- NO
- 4.30
- 60
- X4
- NO
- NO
- NO
- NO
- NO
- horizontal
- cast iron
- self priming
-
Product availability
- central warehouse 0 pcs
- 1,021.48 €
- Not sellable online
-
- Calpeda NMP 50/12F/B 230/400V 2,2kW 2900rpm
- ZB00001526
- 1,100
- 16
- 3x400
- 2.20
- 2 1/2
- 2 1/2
- 7
- NO
- 5.30
- 60
- X4
- NO
- NO
- NO
- NO
- NO
- horizontal
- cast iron
- self priming
-
Product availability
- central warehouse 0 pcs
- 1,115.14 €
- Not sellable online
-
- Calpeda NMP 50/12D/A 230/400V 3,0kW 2900rpm
- ZB00014046
- 1,100
- 18
- 3x400
- 3
- 2 1/2
- 2 1/2
- 7
- NO
- 6.60
- 60
- X4
- NO
- NO
- NO
- NO
- NO
- horizontal
- cast iron
- self priming
-
Product availability
- central warehouse 0 pcs
- 1,256.71 €
- Not sellable online
-
- Calpeda NMP 65/12C 400/690V 5,5kW 2900rpm
- ZB00059934
- 2,000
- 21.40
- 3x400
- 5.50
- 3
- 3
- 7
- NO
- 10.80
- 60
- X4
- NO
- NO
- NO
- NO
- NO
- horizontal
- cast iron
- self priming
-
Product availability
- central warehouse 0 pcs
- 2,017.92 €
- Not sellable online
-
- Calpeda NMP 65/12E 400/690V 4,0kW 2900rpm
- ZB00059933
- 1,800
- 17.70
- 3x400
- 4
- 3
- 3
- 7
- NO
- 9.60
- 60
- X4
- NO
- NO
- NO
- NO
- NO
- horizontal
- cast iron
- self priming
-
Product availability
- central warehouse 0 pcs
- 1,685.77 €
- Not sellable online
-
- Calpeda NMP 65/12A 400/690V 7,5kW 2900rpm
- ZB00059935
- 2,000
- 26.20
- 3x400
- 7.50
- 3
- 3
- 7
- NO
- 14.30
- 60
- X4
- NO
- NO
- NO
- NO
- NO
- horizontal
- cast iron
- self priming
-
Product availability
- central warehouse 0 pcs
- 2,159.49 €
- Not sellable online
Variant Product No.
Availability
Price (VAT incl.)
Calpeda NMP 32/12DE 230/400V 0,75kW 2900rpm
Product No.: ZB00025878 Sale group: CECP EAN: 8030485005827 Manuf. No.: 60D00041000
924.56 €
- Maximum flow [l/min]
- 250
- Maximum head [m]
- 18
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 0.75
- Suction port ["]
- 2
- Delivery port ["]
- 2
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 2.30
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- brass
- Construction
- self priming
Calpeda NMP 32/12A/A 230/400V 1,1kW 2900rpm
Product No.: ZB00025877 Sale group: CECP EAN: 8030485897279 Manuf. No.: 60D00062000
939.81 €
- Maximum flow [l/min]
- 250
- Maximum head [m]
- 22
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 1.10
- Suction port ["]
- 2
- Delivery port ["]
- 2
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 2.70
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- brass
- Construction
- self priming
Calpeda NMP 32/12S/A 230/400V 1,5kW 2900rpm
Product No.: ZB00001594 Sale group: CECP EAN: 8030485896135 Manuf. No.: 60D00082000
975.74 €
- Maximum flow [l/min]
- 400
- Maximum head [m]
- 23
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 1.50
- Suction port ["]
- 2
- Delivery port ["]
- 2
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 4.30
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- brass
- Construction
- self priming
Calpeda NMP 50/12G/A 230/400V 1,5kW 2900rpm
Product No.: ZB00014033 Sale group: CECP EAN: 8030485895855 Manuf. No.: 60D0082G200
1,021.48 €
- Maximum flow [l/min]
- 1,000
- Maximum head [m]
- 12
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 1.50
- Suction port ["]
- 2 1/2
- Delivery port ["]
- 2 1/2
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 4.30
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- cast iron
- Construction
- self priming
Calpeda NMP 50/12F/B 230/400V 2,2kW 2900rpm
Product No.: ZB00001526 Sale group: CECP EAN: 8030485910398 Manuf. No.: 60D00823000
1,115.14 €
- Maximum flow [l/min]
- 1,100
- Maximum head [m]
- 16
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 2.20
- Suction port ["]
- 2 1/2
- Delivery port ["]
- 2 1/2
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 5.30
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- cast iron
- Construction
- self priming
Calpeda NMP 50/12D/A 230/400V 3,0kW 2900rpm
Product No.: ZB00014046 Sale group: CECP EAN: 8030485634409 Manuf. No.: 60D00862000
1,256.71 €
- Maximum flow [l/min]
- 1,100
- Maximum head [m]
- 18
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 3
- Suction port ["]
- 2 1/2
- Delivery port ["]
- 2 1/2
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 6.60
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- cast iron
- Construction
- self priming
Calpeda NMP 65/12C 400/690V 5,5kW 2900rpm
Product No.: ZB00059934 Sale group: CECP EAN: 8030485552192 Manuf. No.: 60D01400000
2,017.92 €
- Maximum flow [l/min]
- 2,000
- Maximum head [m]
- 21.40
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 5.50
- Suction port ["]
- 3
- Delivery port ["]
- 3
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 10.80
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- cast iron
- Construction
- self priming
Calpeda NMP 65/12E 400/690V 4,0kW 2900rpm
Product No.: ZB00059933 Sale group: CECP EAN: 8030485557326 Manuf. No.: 60D01360000
1,685.77 €
- Maximum flow [l/min]
- 1,800
- Maximum head [m]
- 17.70
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 4
- Suction port ["]
- 3
- Delivery port ["]
- 3
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 9.60
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- cast iron
- Construction
- self priming
Calpeda NMP 65/12A 400/690V 7,5kW 2900rpm
Product No.: ZB00059935 Sale group: CECP EAN: 8030485554431 Manuf. No.: 60D01440000
2,159.49 €
- Maximum flow [l/min]
- 2,000
- Maximum head [m]
- 26.20
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 7.50
- Suction port ["]
- 3
- Delivery port ["]
- 3
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 14.30
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- cast iron
- Construction
- self priming
Product description
Construction
Close-coupled self-priming centrifugal pumps with built-in strainer.
Inner basket with Ø 3 mm holes.

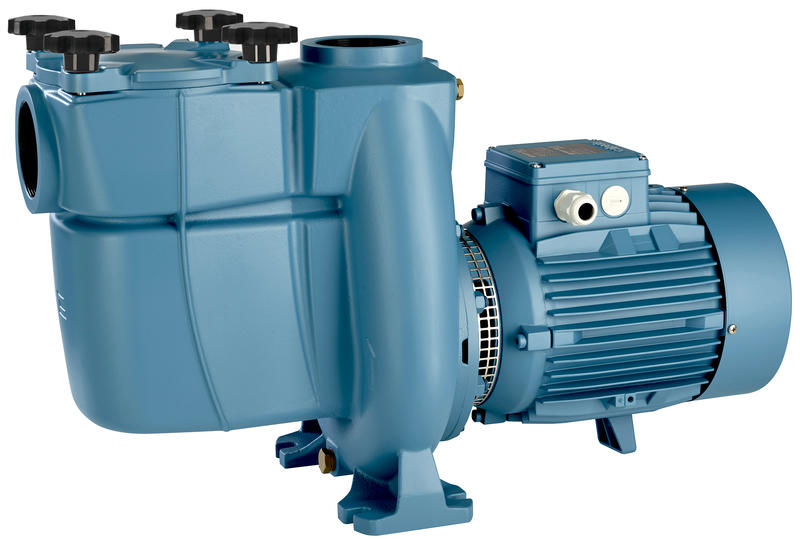

NMP: version with pump casing and lanter bracket in cast iron.

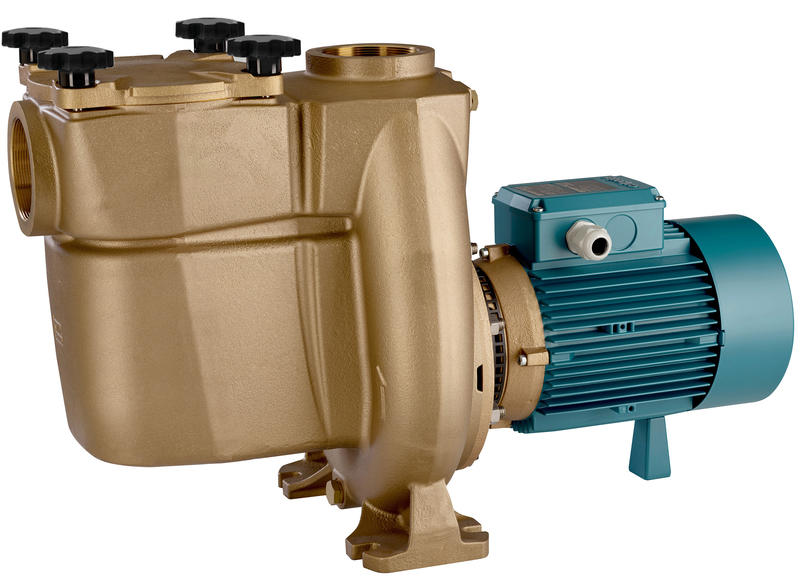

B-NMP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted).
Applications
- For water circulation in swimming pool filtration systems.
- For clean or slightly dirty water with solids in suspension.
Instructions
Technical Specifications
- Maximum flow [l/min]
- 250 - 2,000
- Maximum head [m]
- 12 - 26.20
- Input voltage [V]
- 3x400
- Power output - P2 [kW]
- 0.75 - 7.50
- Suction port ["]
- 2, 2 1/2, 3
- Delivery port ["]
- 2, 2 1/2, 3
- Maximum suction lift [m]
- 7
- Drinking water certificate
- NO
- Maximum current [A]
- 2.30 - 14.30
- Maximum liquid temperature [°C]
- 60
- Protection [IP]
- X4
- Automatic thermal protection
- NO
- Dry run protection
- NO
- Off switch
- NO
- Speed control
- NO
- Capacitor
- NO
- Pump design
- horizontal
- Impeller material
- brass, cast iron
- Construction
- self priming
Product Safety Information
Company responsible for product safety:
Calpeda S.p.A.
Via Roggia di Mezzo 39, 36050 Montorso Vicentino, IT
e-mail: [email protected]
