Calpeda NM4 80 close coupled centrifugal pumps with flanged ends (n=1450 rpm)

previous next
Calpeda NM4 80 close coupled centrifugal pumps with flanged ends (n=1450 rpm)

Close Coupled Centrifugal Pumps (n = 1450 rpm) See more

Technical Specifications

Maximum flow [l/min]
1,400 - 3,500
Maximum head [m]
6 - 36.30
Power output - P2 [kW]
1.10 - 15
Suction port ["]
DN100

Show all Tech Specs

on demand check availability

from 1,499.60 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001249

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

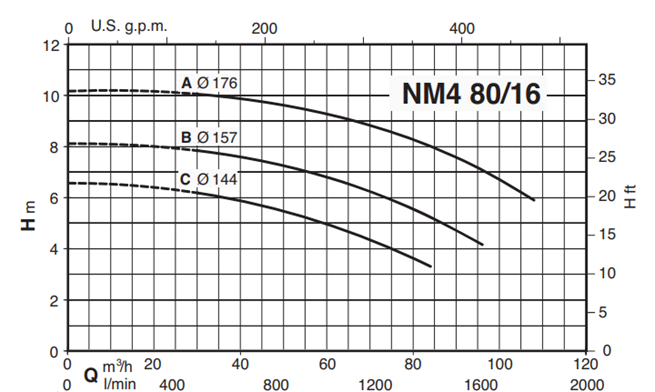

Calpeda NM4 80/16C/C 230/400V 1,1kW 1450rpm

Product No.: ZB00013991 Sale group: CECP EAN: 8030485942030 Manuf. No.: 6090094400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,499.60 €

Check availability

Maximum flow [l/min]
1 400
Maximum head [m]
6
Power output - P2 [kW]
1,10
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2,90
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM4 80/16B/C 230/400V 1,5kW 1450rpm

Product No.: ZB00013990 Sale group: CECP EAN: 8030485905325 Manuf. No.: 6090096400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,618.72 €

Check availability

Maximum flow [l/min]
1 600
Maximum head [m]
8
Power output - P2 [kW]
1,50
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
3,50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM4 80/16A/C 230/400V 2,2kW 1450 rpm

Product No.: ZB00013989 Sale group: CECP EAN: 8030485929369 Manuf. No.: 6090100400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,744.12 €

Check availability

Maximum flow [l/min]
3 500
Maximum head [m]
10
Power output - P2 [kW]
2,20
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
5
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

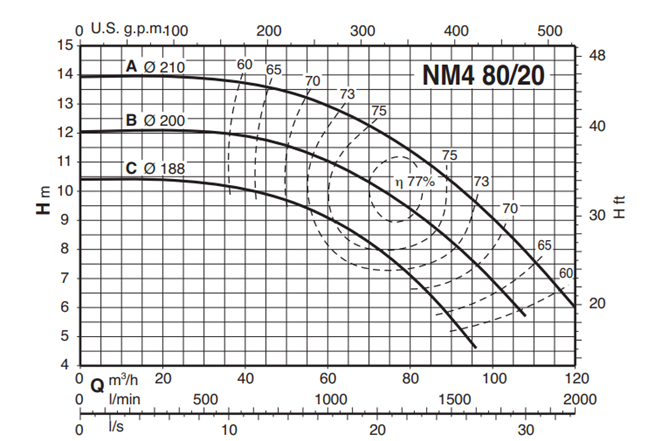

Calpeda NM4 80/20C 230/400V 2,2kW 1450rpm

Product No.: ZB00001461 Sale group: CECP EAN: 8030485929208 Manuf. No.: 6090104400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,897.30 €

Check availability

Maximum flow [l/min]
1 600
Maximum head [m]
10
Power output - P2 [kW]
2,20
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
5
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM4 80/20B/B 230/400V 3,0kW 1450rpm

Product No.: ZB00013993 Sale group: CECP EAN: 8030485383796 Manuf. No.: 6090108300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,042.64 €

Check availability

Maximum flow [l/min]
1 800
Maximum head [m]
12
Power output - P2 [kW]
3
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
6,40
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM4 80/20A/A 400/690V 4,0kW 1450rpm

Product No.: ZB00013992 Sale group: CECP EAN: 8030485582656 Manuf. No.: 60901142000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,283.48 €

Check availability

Maximum flow [l/min]
2 000
Maximum head [m]
14
Power output - P2 [kW]
4
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
8,30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM4 80/25C/A 400/690V 4,0kW 1450rpm

Product No.: ZB00001463 Sale group: CECP EAN: 8030485582779 Manuf. No.: 6090118200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,890.59 €

Check availability

Maximum flow [l/min]
2 000
Maximum head [m]
17
Power output - P2 [kW]
4
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
8,30
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM4 80/25B/B 400/690V 5,5kW 1450rpm

Product No.: ZB00001462 Sale group: CECP EAN: 8030485874003 Manuf. No.: 6090122300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,572.41 €

Check availability

Maximum flow [l/min]
2 200
Maximum head [m]
21
Power output - P2 [kW]
5,50
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
12,50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

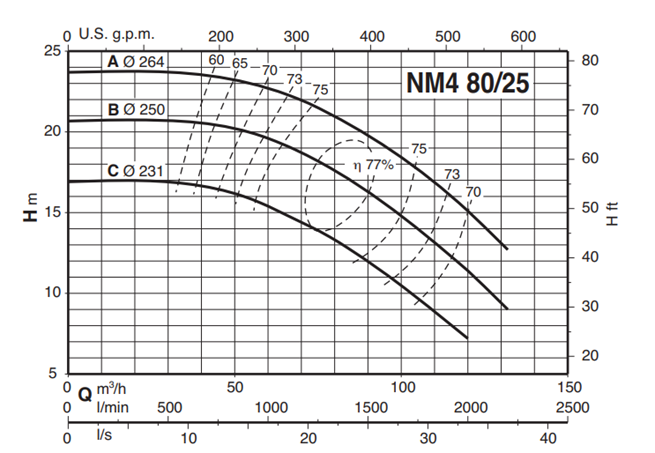

Calpeda NM4 80/25A/B 400/690V 7,5kW 1450rpm

Product No.: ZB00013994 Sale group: CECP EAN: 8030485878841 Manuf. No.: 6090126300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

3,866.65 €

Check availability

Maximum flow [l/min]
2 200
Maximum head [m]
24
Power output - P2 [kW]
7,50
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
16
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

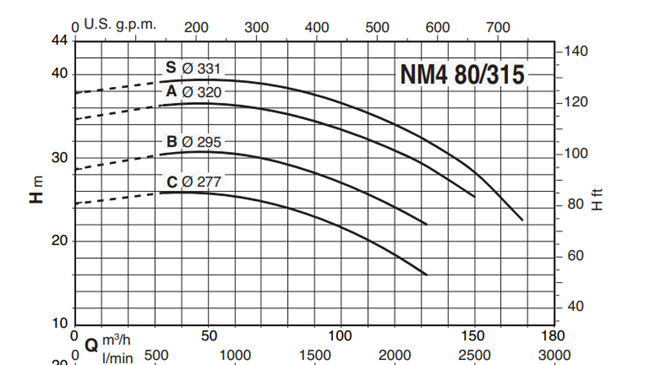

Calpeda NM4 80/31C/B 400/690V 9,2kW 1450rpm

Product No.: ZB00025850 Sale group: CECP EAN: 8030485877288 Manuf. No.: 6090130300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

4,939.03 €

Check availability

Maximum flow [l/min]
2 200
Maximum head [m]
26
Power output - P2 [kW]
9,20
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
20,50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM4 80/31B 400/690V 11,0kW 1450rpm

Product No.: ZB00025849 Sale group: CECP EAN: 8030485875994 Manuf. No.: 6090134300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,543.24 €

Check availability

Maximum flow [l/min]
2 200
Maximum head [m]
30
Power output - P2 [kW]
11
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
22,50
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Calpeda NM4 80/31A 400/690V 15,0kW 1450rpm

Product No.: ZB00025848 Sale group: CECP EAN: 8030485874829 Manuf. No.: 6090138300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

6,858.78 €

Check availability

Maximum flow [l/min]
2 500
Maximum head [m]
36,30
Power output - P2 [kW]
15
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
29
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock

Product description

Construction

Close-coupled centrifugal pumps; electric motor with extended shaft directly connected to the pump up to 15 kW, new bracket construction for standard motors (Stub-shaft construction) from 18,5 to 75 kW with integrated thrust bearing.
Pump casing with axial suction and radial delivery on top, main dimensions and performance according to EN 733 with additional sizes for completion.

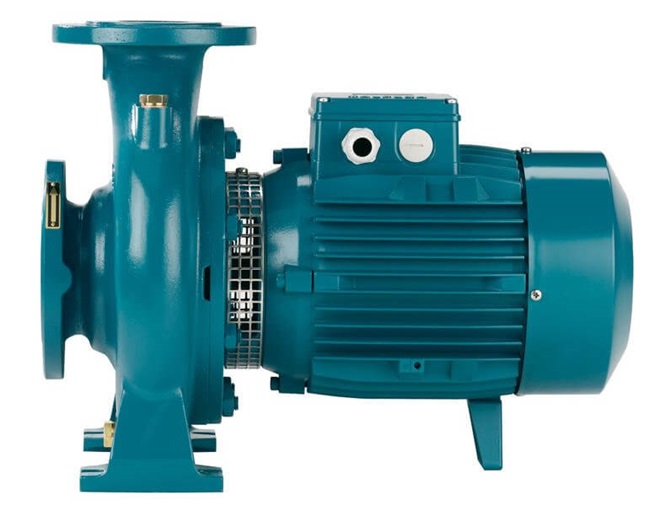

NM4: version with pump casing and lanter bracket in cast iron.

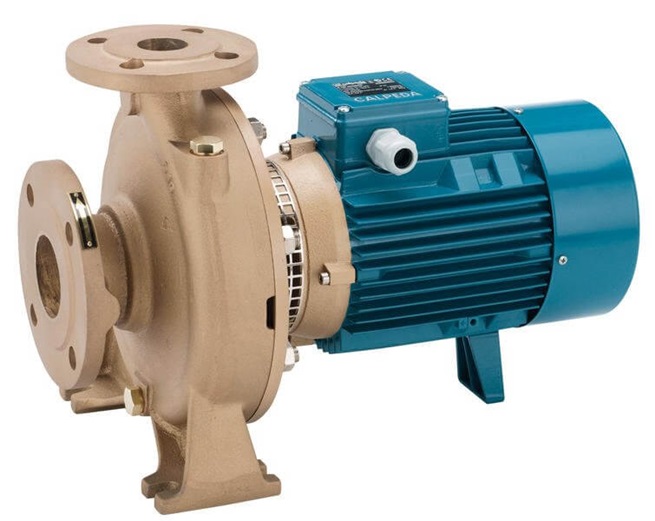

B-NM4: version with pump casing and lanter bracket/casing cover in bronze (the pumps are supplied fully painted).


Connections

NM4 25/… : Threaded ports ISO 228.
from NM4 32/.. to NMS4 150/.. : Flanges according to PN 10, EN 1092-2.

Counter-flanges

(on request):
from NM4 32/.. to NM4 50/.. : Screwed flanges EN 1092-1, PN 16.
from NM4 32/.. to NMS4 150/.. : Flanges for welding EN 1092-1, PN 10.

Applications

- For clean liquids without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0,2%).
- For water supply.
- For heating, air conditioning, cooling and circulation plants.
- For civil and industrial applications.
- When low noise operating is required.
- For irrigation.

Instructions

Technical Specifications

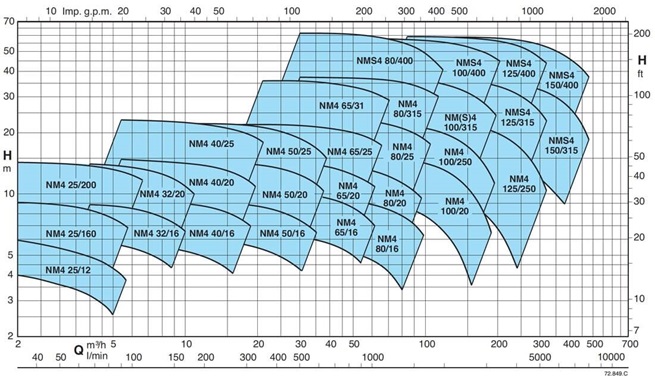

Maximum flow [l/min]
1,400 - 3,500
Maximum head [m]
6 - 36.30
Power output - P2 [kW]
1.10 - 15
Suction port ["]
DN100
Delivery port ["]
DN80
Maximum suction lift [m]
7
Drinking water certificate
NO
Maximum current [A]
2.90 - 29
Maximum liquid temperature [°C]
90
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
cast iron
Construction
monoblock
