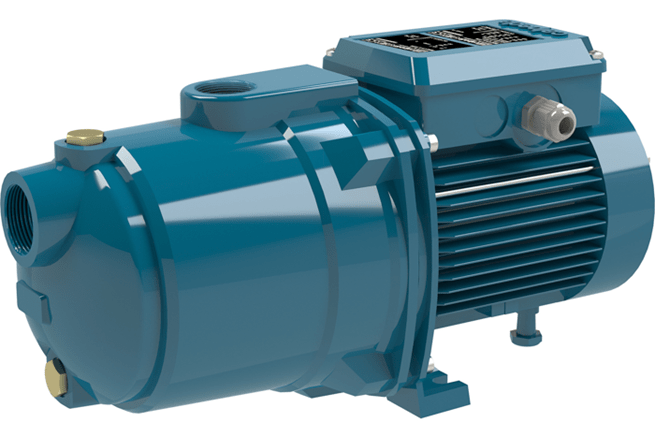

Calpeda NGLM 4 self-priming cast iron jet pumps 230V

previous next
Calpeda NGLM 4 self-priming cast iron jet pumps 230V

Self-Priming Pumps See more

Technical Specifications

Maximum flow [l/min]
75
Maximum head [m]
41.60
Input voltage [V]
230
Power output - P2 [kW]
0.75

Show all Tech Specs

in stock 1 pcs

246.64 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001225

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda NGLM 4/110 0,75kW 230V 2900rpm

Product No.: ZB00050605 Sale group: CEPJ EAN: 8030485976974 Manuf. No.: 70B51040000

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

246.64 €

Maximum flow [l/min]
75
Maximum head [m]
41.60
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
9
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
5.40
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
self priming
this variant suits your choice

Product description

Construction

Close-coupled self-priming shallow-well pump with built-in ejector.

Applications

- For drawing water out of a well.
- For lifting water containing air or other gases.
- For increasing water pressure from flooded suction applications.
- As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
- For garden use.
- For washing with a jet of water.

Instructions

Technical Specifications

Maximum flow [l/min]
75
Maximum head [m]
41.60
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
9
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
5.40
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
self priming
