Calpeda MXAM 4xx horizontal multi-stage self-priming pump 230V

previous next
Calpeda MXAM 4xx horizontal multi-stage self-priming pump 230V

Multi-Stage Self-Priming Pumps See more

Technical Specifications

Maximum flow [l/min]
108.30 - 133.30
Maximum head [m]
34 - 56
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 1.10

Show all Tech Specs

in stock 1 pcs

from 471.38 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001299

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda MXAM 403/A 0,55kW 230V IE2

Product No.: ZB00014089 Sale group: CECK Manuf. No.: 663A1031100

on demand
check availability
Product availability
  • central warehouse 0 pcs

471.38 €

Check availability

Maximum flow [l/min]
108.30
Maximum head [m]
34
Input voltage [V]
230
Power output - P2 [kW]
0.55
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
4.20
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
self priming
this variant suits your choice

Calpeda MXAM 404/A 0,75kW 230V IE2

Product No.: ZB00001581 Sale group: CECK Manuf. No.: 663A1041100

on demand
check availability
Product availability
  • central warehouse 0 pcs

479.06 €

Check availability

Maximum flow [l/min]
116.60
Maximum head [m]
45
Input voltage [V]
230
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7.50
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
5.40
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
self priming
this variant suits your choice

Calpeda MXAM 405/A 1,1kW 230V IE2

Product No.: ZB00070312 Sale group: CECK Manuf. No.: 663A1051200

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

799.01 €

Maximum flow [l/min]
133.30
Maximum head [m]
56
Input voltage [V]
230
Power output - P2 [kW]
1.10
Suction port ["]
5/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
7
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
self priming
this variant suits your choice

Product description

Construction

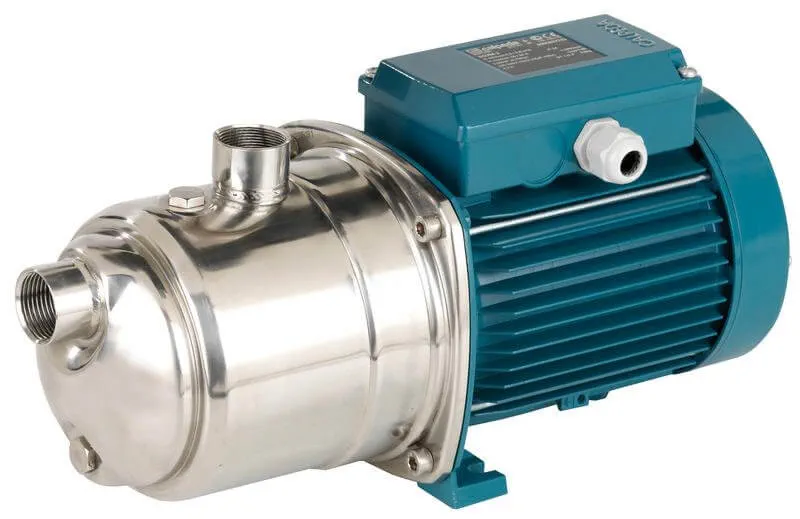

Horizontal multi-stage, self-priming, close coupled pump.
Single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top.
Stages in Noryl.

Applications

- For water supply.
- For domestic use, for garden use and irrigation.

Instructions

Technical Specifications

Maximum flow [l/min]
108.30 - 133.30
Maximum head [m]
34 - 56
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 1.10
Suction port ["]
1, 5/4
Delivery port ["]
1
Maximum suction lift [m]
7 - 8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
4.20 - 7
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
YES
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
integrated
Pump design
horizontal
Impeller material
noryl
Construction
self priming
