Calpeda MXA 20x multi-stage self-priming pumps 3x400V

Multi-Stage Self-Priming Pumps See more

Technical Specifications

Maximum flow [l/min]
66.60 - 83.30
Maximum head [m]
32 - 55.50
Power output - P2 [kW]
0.45 - 0.75
Suction port ["]
1, 5/4

Show all Tech Specs

on demand check availability

from 400.73 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS000235

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda MXA 203 0,45kW 230/400V

Product No.: ZB00001579 Sale group: CECK EAN: 8030485172536 Manuf. No.: 662A0031000

on demand
check availability
Product availability
  • central warehouse 0 pcs

400.73 €

Check availability

Maximum flow [l/min]
66.60
Maximum head [m]
32
Power output - P2 [kW]
0.45
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
1.40
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
noryl
Construction
self priming

Calpeda MXA 204/A 0,55kW 230/400V

Product No.: ZB00014087 Sale group: CECK EAN: 8030485172543 Manuf. No.: 662A0041000

on demand
check availability
Product availability
  • central warehouse 0 pcs

441.02 €

Check availability

Maximum flow [l/min]
75
Maximum head [m]
45
Power output - P2 [kW]
0.55
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
1.60
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
noryl
Construction
self priming

Calpeda MXA 205/B 0,75kW 230/400V

Product No.: ZB00001705 Sale group: CECK EAN: 8030485896951 Manuf. No.: 662A0051200

on demand
check availability
Product availability
  • central warehouse 0 pcs

690.72 €

Check availability

Maximum flow [l/min]
83.30
Maximum head [m]
55.50
Power output - P2 [kW]
0.75
Suction port ["]
5/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
2
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
noryl
Construction
self priming

Product description

Construction

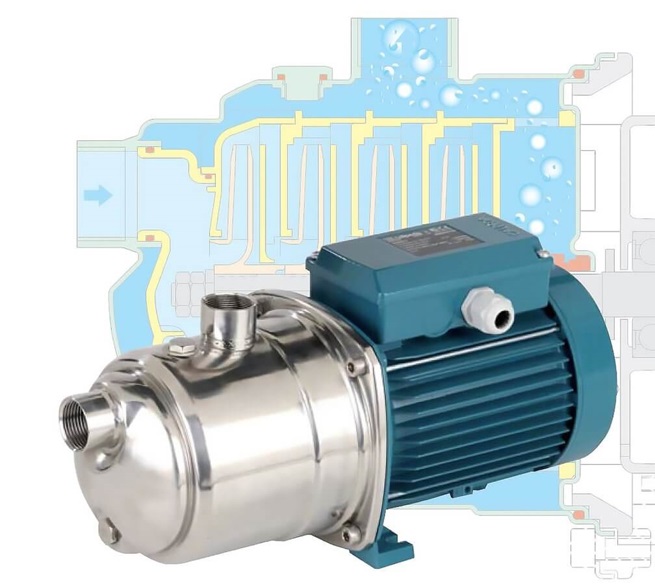

Horizontal multi-stage, self-priming, close coupled pump.
Single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top.
Stages in Noryl.

Applications

- For water supply.
- For domestic use, for garden use and irrigation.

Instructions

Technical Specifications

Maximum flow [l/min]
66.60 - 83.30
Maximum head [m]
32 - 55.50
Power output - P2 [kW]
0.45 - 0.75
Suction port ["]
1, 5/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
1.40 - 2
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
noryl
Construction
self priming
