Calpeda MXA 40x horizontal multi-stage self-priming pumps 3x400V

previous next
Calpeda MXA 40x horizontal multi-stage self-priming pumps 3x400V

Multi-Stage Self-Priming Pumps See more

Technical Specifications

Maximum flow [l/min]
108.30 - 133.30
Maximum head [m]
34 - 56
Power output - P2 [kW]
0.55 - 1.10
Suction port ["]
1, 5/4

Show all Tech Specs

in stock 1 pcs

from 457.18 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
CALPEDA
Category:
Horizontal surface pumps
Product No.:
MAS001262

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Power output - P2 [kW]
  • Suction port ["]
  • Delivery port ["]
  • Maximum suction lift [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Pump design
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda MXA 403/A 0,55kW 230/400V

Product No.: ZB00014088 Sale group: CECK EAN: 8030485172550 Manuf. No.: 662A1031000

on demand
check availability
Product availability
  • central warehouse 0 pcs

457.18 €

Check availability

Maximum flow [l/min]
108.30
Maximum head [m]
34
Power output - P2 [kW]
0.55
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
1.60
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
noryl
Construction
self priming
this variant suits your choice

Calpeda MXA 404/A 0,75kW 230/400V

Product No.: ZB00014090 Sale group: CECK EAN: 8030485898863 Manuf. No.: 662A1041100

on demand
check availability
Product availability
  • central warehouse 0 pcs

464.08 €

Check availability

Maximum flow [l/min]
116.60
Maximum head [m]
45
Power output - P2 [kW]
0.75
Suction port ["]
1
Delivery port ["]
1
Maximum suction lift [m]
7.50
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
2
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
noryl
Construction
self priming
this variant suits your choice

Calpeda MXA 405/A 1,1kW 230/400V

Product No.: ZB00001706 Sale group: CECK EAN: 8030485821243 Manuf. No.: 662A1051100

in stock
1 pcs
Product availability
  • central warehouse 1 pcs

675.48 €

Maximum flow [l/min]
133.30
Maximum head [m]
56
Power output - P2 [kW]
1.10
Suction port ["]
5/4
Delivery port ["]
1
Maximum suction lift [m]
8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
2.60
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
noryl
Construction
self priming
this variant suits your choice

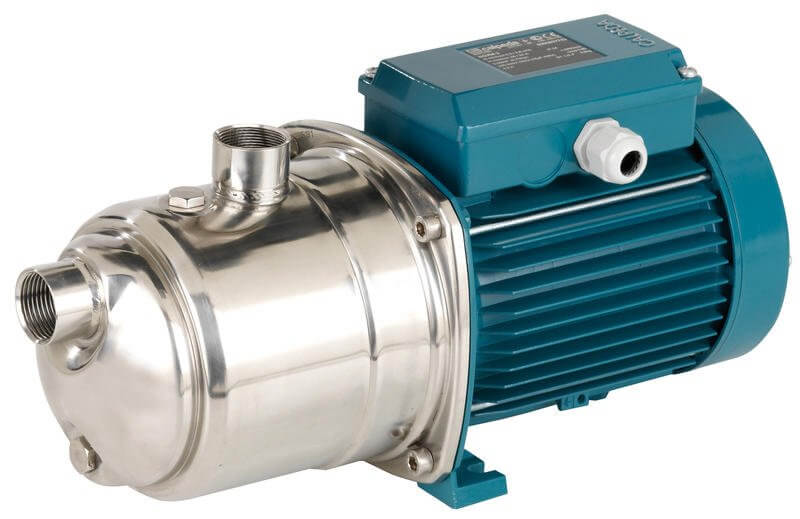

Product description

Construction

Horizontal multi-stage, self-priming, close coupled pump.
Single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top.
Stages in Noryl.

Applications

- For water supply.
- For domestic use, for garden use and irrigation.

Instructions

Technical Specifications

Maximum flow [l/min]
108.30 - 133.30
Maximum head [m]
34 - 56
Power output - P2 [kW]
0.55 - 1.10
Suction port ["]
1, 5/4
Delivery port ["]
1
Maximum suction lift [m]
7 - 8
Drinking water certificate
NO
Float switch
NO
Maximum current [A]
1.60 - 2.60
Maximum liquid temperature [°C]
35
Protection [IP]
54
Automatic thermal protection
NO
Dry run protection
NO
Off switch
NO
Speed ​​control
NO
Capacitor
NO
Pump design
horizontal
Impeller material
noryl
Construction
self priming
