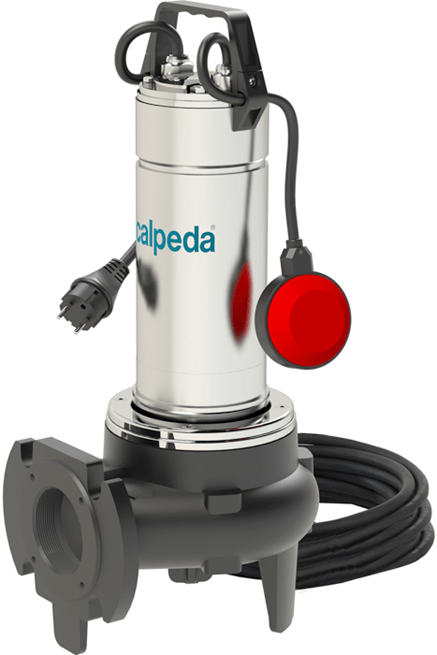

Calpeda GQVM submersible sewage pumps 230V

  • Calpeda GQVM submersible sewage pumps 230V
    Calpeda GQVM submersible sewage pumps 230V
  • Calpeda GQVM submersible sewage pumps 230V
    Calpeda GQVM submersible sewage pumps 230V

previous next
Calpeda GQVM submersible sewage pumps 230V Calpeda GQVM submersible sewage pumps 230V
Calpeda GQVM submersible sewage pumps 230V

Submersible Drainage Pumps FLOW 3 / 30 mc/h HEAD 3 / 20 m POWER 0.45 / 2 kW

See more

Technical Specifications

Maximum flow [l/min]
400 - 600
Maximum head [m]
8 - 15
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 1.50

Show all Tech Specs

in stock >10 pcs

from 559.25 € VAT included

Choose variant

Delivery accross EU within 3-7 business days %

Brand:
CALPEDA
Category:
Wastewater pumps
Product No.:
MAS001102

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Maximum immersion depth [m]
  • Drinking water certificate
  • Float switch
  • Maximum current [A]
  • Maximum liquid temperature [°C]
  • Cable length [m]
  • Maximum particle size [mm]
  • Protection [IP]
  • Automatic thermal protection
  • Dry run protection
  • Off switch
  • Speed ​​control
  • Capacitor
  • Impeller material
  • Construction
  • Grinder
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda GQVM 50-8 230V submersible sewage pump with float switch, cable 10m

Product No.: ZB00001835 Sale group: CEPJ EAN: 8030485585664 Manuf. No.: 70U81050000

in stock
5 pcs
Product availability
  • central warehouse 5 pcs

559.25 €

Maximum flow [l/min]
400
Maximum head [m]
8
Input voltage [V]
230
Power output - P2 [kW]
0.55
Delivery port ["]
2
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
4.30
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
50
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Calpeda GQVM 50-9 230V submersible sewage pump with float switch, cable 10m

Product No.: ZB00001836 Sale group: CEPJ EAN: 8030485574637 Manuf. No.: 70U81100000

in stock
4 pcs
Product availability
  • central warehouse 4 pcs

621.51 €

Maximum flow [l/min]
450
Maximum head [m]
9.30
Input voltage [V]
230
Power output - P2 [kW]
0.75
Delivery port ["]
2
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
4.80
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
50
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Calpeda GQVM 50-11 230V submersible sewage pump with float switch, cable 10m

Product No.: ZB00025449 Sale group: CEPJ EAN: 8030485583981 Manuf. No.: 70U81150000

on demand
check availability
Product availability
  • central warehouse 0 pcs

734.30 €

Check availability

Maximum flow [l/min]
550
Maximum head [m]
11
Input voltage [V]
230
Power output - P2 [kW]
0.90
Delivery port ["]
2
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
6.60
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
50
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Calpeda GQVM 50-13 230 submersible sewage pump with float switch, cable 10m

Product No.: ZB00001837 Sale group: CEPJ EAN: 8030485584858 Manuf. No.: 70U81200000

in stock
7 pcs
Product availability
  • central warehouse 7 pcs

745.98 €

Maximum flow [l/min]
600
Maximum head [m]
12.80
Input voltage [V]
230
Power output - P2 [kW]
1.10
Delivery port ["]
2
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
8.40
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
50
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Calpeda GQVM 50-15 230 submersible sewage pump with float switch, cable 10m

Product No.: ZB00067331 Sale group: CEPJ EAN: 8030485721819 Manuf. No.: 70U81250000

in stock
2 pcs
Product availability
  • central warehouse 2 pcs

1,077.82 €

Maximum flow [l/min]
600
Maximum head [m]
15
Input voltage [V]
230
Power output - P2 [kW]
1.50
Delivery port ["]
2
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
13
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
50
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Product description

Construction

Single-impeller submersible drainage pump, with vertical delivery port, with open impeller.
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.

Applications

- For clean water containing solids up to 10 mm grain size.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.

Instructions

Technical Specifications

Maximum flow [l/min]
400 - 600
Maximum head [m]
8 - 15
Input voltage [V]
230
Power output - P2 [kW]
0.55 - 1.50
Delivery port ["]
2
Maximum immersion depth [m]
5
Float switch
YES
Maximum current [A]
4.30 - 13
Maximum liquid temperature [°C]
35
Cable length [m]
10
Maximum particle size [mm]
50
Protection [IP]
X8
Automatic thermal protection
YES
Dry run protection
NO
Speed ​​control
NO
Capacitor
integrated
Impeller material
cast iron
Construction
submersible
Grinder
NO

Product Safety Information

Company responsible for product safety:
Calpeda S.p.A.
Via Roggia di Mezzo 39, 36050 Montorso Vicentino, IT
e-mail: [email protected]
