Calpeda 6 SDN 16 hydraulic part without motor

Drinking water certificate

previous next

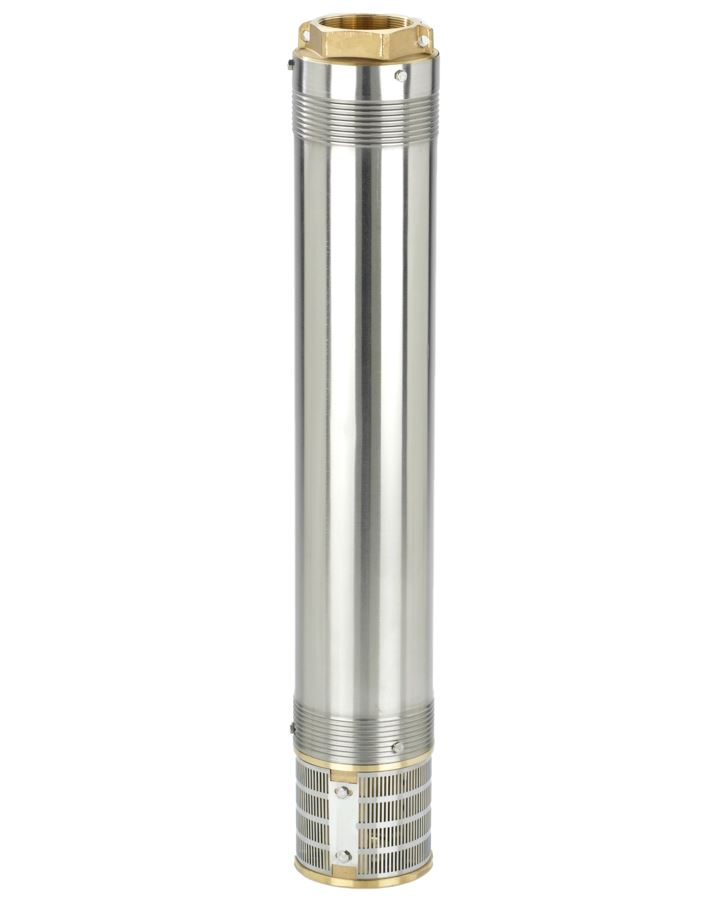

Calpeda 6 SDN 16 hydraulic part without motor

6 ”submersible pumps (DN 150 mm) with AISI 304 stainless steel outer casing and 6SDN for pump cells. See more

Technical Specifications

Maximum flow [l/min]
416.60
Maximum head [m]
75 - 354
Input voltage [V]
without motor
Power output - P2 [kW]
4 - 18.50

Show all Tech Specs

on demand check availability

from 980.88 € VAT included

Choose variant

Delivery accross EU within 2-4 days %

Brand:
CALPEDA
Category:
Submersible borehole pumps
Product No.:
MAS001461

Product variants

  • Technical Specifications
  • Product No.
  • Maximum flow [l/min]
  • Maximum head [m]
  • Input voltage [V]
  • Power output - P2 [kW]
  • Delivery port ["]
  • Pump diameter ["]
  • Drinking water certificate
  • Float switch
  • Maximum liquid temperature [°C]
  • Maximum borehole diameter [mm]
  • Impeller material
  • Construction
  • Availability
  • Price

next

Variant Product No.

Availability

Price (VAT incl.)

Calpeda 6 SDN 16/07 hydraulic part without motor (4,0kW)

Product No.: ZB00014173 Sale group: CECP EAN: 8030485215219 Manuf. No.: 40S65150000

on demand
check availability
Product availability
  • central warehouse 0 pcs

980.88 €

Check availability

Maximum flow [l/min]
416.60
Maximum head [m]
75
Input voltage [V]
without motor
Power output - P2 [kW]
4
Delivery port ["]
3
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
151
Impeller material
noryl
Construction
centrifugal

Calpeda 6 SDN 16/10 hydraulic part without motor (5,5kW)

Product No.: ZB00001685 Sale group: CECP EAN: 8030485215066 Manuf. No.: 40S65200000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,073.01 €

Check availability

Maximum flow [l/min]
416.60
Maximum head [m]
107
Input voltage [V]
without motor
Power output - P2 [kW]
5.50
Delivery port ["]
3
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
151
Impeller material
noryl
Construction
centrifugal

Calpeda 6 SDN 16/13 hydraulic part without motor (7,5kW)

Product No.: ZB00014172 Sale group: CECP EAN: 8030485215929 Manuf. No.: 40S65250000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,247.60 €

Check availability

Maximum flow [l/min]
416.60
Maximum head [m]
139
Input voltage [V]
without motor
Power output - P2 [kW]
7.50
Delivery port ["]
3
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
151
Impeller material
noryl
Construction
centrifugal

Calpeda 6 SDN 16/17 hydraulic part without motor (9,2kW)

Product No.: ZB00024462 Sale group: CECP EAN: 8030485229834 Manuf. No.: 40S65300000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,366.00 €

Check availability

Maximum flow [l/min]
416.60
Maximum head [m]
182
Input voltage [V]
without motor
Power output - P2 [kW]
9.20
Delivery port ["]
3
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
151
Impeller material
noryl
Construction
centrifugal

Calpeda 6 SDN 16/20 hydraulic part without motor (11kW)

Product No.: ZB00024463 Sale group: CECP EAN: 8030485229841 Manuf. No.: 40S65350000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,583.80 €

Check availability

Maximum flow [l/min]
416.60
Maximum head [m]
215
Input voltage [V]
without motor
Power output - P2 [kW]
11
Delivery port ["]
3
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
151
Impeller material
noryl
Construction
centrifugal

Calpeda 6 SDN 16/23 hydraulic part without motor (13-15kW)

Product No.: ZB00024464 Sale group: CECP EAN: 8030485347057 Manuf. No.: 40S65400000

on demand
check availability
Product availability
  • central warehouse 0 pcs

16,531.32 €

Check availability

Maximum flow [l/min]
416.60
Maximum head [m]
247
Input voltage [V]
without motor
Power output - P2 [kW]
13
Delivery port ["]
3
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
151
Impeller material
noryl
Construction
centrifugal

Calpeda 6 SDN 16/27 hydraulic part without motor (15kW)

Product No.: ZB00024465 Sale group: CECP EAN: 8030485352303 Manuf. No.: 40S65450000

on demand
check availability
Product availability
  • central warehouse 0 pcs

1,818.19 €

Check availability

Maximum flow [l/min]
416.60
Maximum head [m]
290
Input voltage [V]
without motor
Power output - P2 [kW]
15
Delivery port ["]
3
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
151
Impeller material
noryl
Construction
centrifugal

Calpeda 6 SDN 16/33 hydraulic part without motor (18,5kW)

Product No.: ZB00024466 Sale group: CECP EAN: 8030485295488 Manuf. No.: 40S65500000

on demand
check availability
Product availability
  • central warehouse 0 pcs

2,057.47 €

Check availability

Maximum flow [l/min]
416.60
Maximum head [m]
354
Input voltage [V]
without motor
Power output - P2 [kW]
18.50
Delivery port ["]
3
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
151
Impeller material
noryl
Construction
centrifugal

Product description

6 ”submersible pumps (DN 150 mm) with AISI 304 stainless steel outer casing and 6SDN for pump cells.

Use

  • For pumping water.
  • For domestic and industrial use.
  • For fire extinguishing systems.
  • For irrigation.

Operating conditions

  • Fluid temperature: up to 25 ° C for 6 ”motors
  • Maximum sand admixture in water: 150 g / m3 (300 g / m3 high solids to sand ratio).
  • Continuous trafic.

Instructions

Technical Specifications

Maximum flow [l/min]
416.60
Maximum head [m]
75 - 354
Input voltage [V]
without motor
Power output - P2 [kW]
4 - 18.50
Delivery port ["]
3
Pump diameter ["]
6
Drinking water certificate
YES
Float switch
NO
Maximum liquid temperature [°C]
25
Maximum borehole diameter [mm]
151
Impeller material
noryl
Construction
centrifugal
